Description

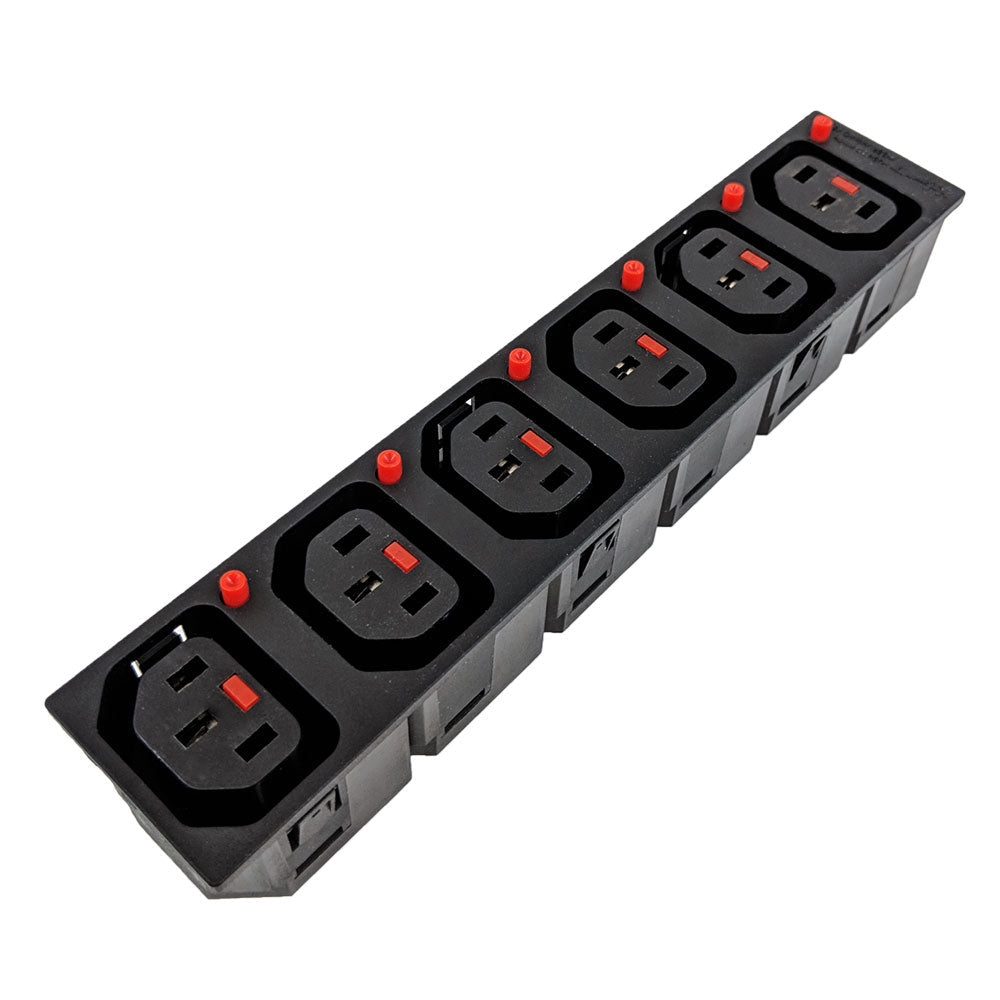

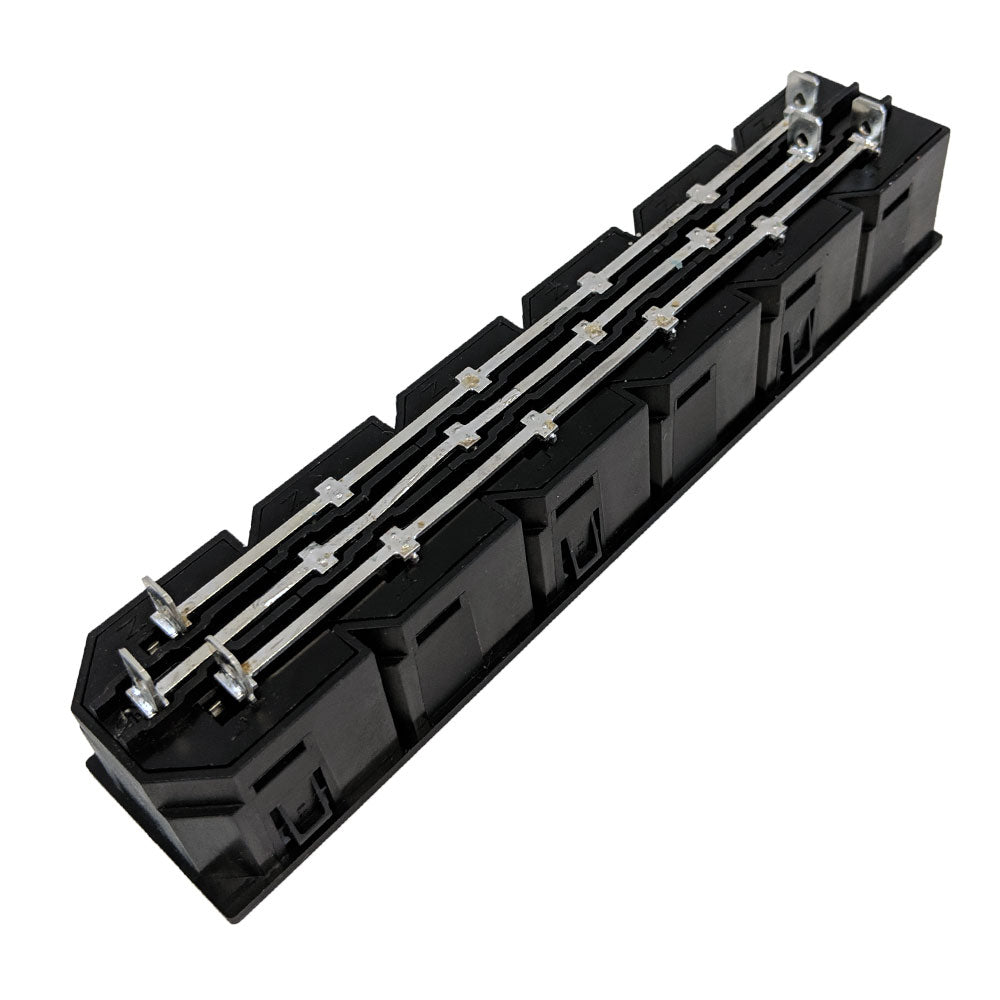

This power outlet has six locking female C13 connectors on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
| Physical Characteristics | |
|---|---|
| Connection Type | Snap-in Mounting From Front |
| Color | Black |
| Material (Body) | Thermoplastic UL94V-0 |
| Materials Socket | Black Polyamide 66 (PA66) UL94V-0 |
| Material Rating | LSZH - Low Smoke Zero Halogen |
| Connector Plating | Nickel |
| Rating | 10A/250V AC |
| Insulation Resistance | 10M (500V DC, 1Min.) |
| Dielectric Strength | 2KV (50Hz 1 Min) to Accessible Surfaces |
| Lock Retention | >100N |
| Panel Mount | Compliant |
| Panel Thickness | Black & White IEC320 Snap-in 1mm or 1.5mm |
| Solder/QC Dimensions | 6.5 x 1.6mm |
| Manufacturing Information | |
| IEC-Lock Part # | PA135015BK6 |
| Connectors | |
| C13 x 6 | Female |
| Solder/Quick Connect | Male |
| Approvals | |
| UL | Compliant |
| CSA | Compliant |
| Certification | |
| c(UL)us | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.33 lbs [0.14kg] |
Spec Sheets
Video
Product Weights
| SKU | Weight | |
| PW-SCL-C13-6T | 0.33 lb |
