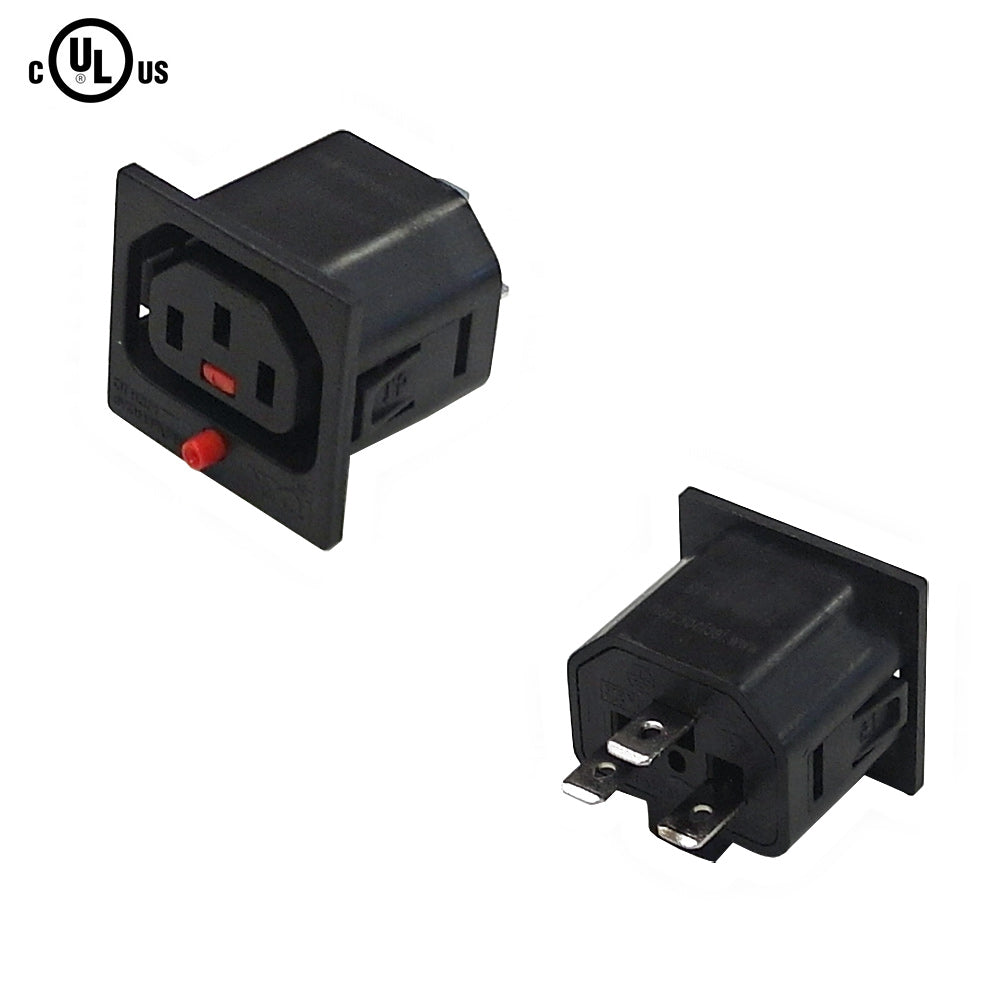

This power outlet has a locking female C13 connector on one side and a solder/quick connect terminal on the other. This outlet is typically used to provide maximum retention when connecting a C14 power cable to the locking C13 power outlet. Compatible with any C14 cable.
| Physical Characteristics
|
|---|
| Connection Type
|
Snap-in Mounting From Front
|
| Color
|
Black
|
| Material (Body)
|
Thermoplastic UL94V-0
|
| Connector Plating
|
Nickel
|
| Rating
|
10A/250VAC
|
| Insulation Resistance
|
10M (500VDC, 1Min.)
|
| Dielectric Strength
|
2KV (50Hz 1 Min) to Accessible Surfaces
|
| Panel Mount
|
Compliant
|
| Panel Thickness
|
Black & White IEC320 Snap-in 1mm or 1.5mm
|
| Solder/QC Dimensions
|
6.3 x 0.8mm
|
| Manufacturing Information |
|---|
| IEC-Lock Part # |
PA135015BK1
|
| Connectors
|
|---|
| C13
|
Female
|
| Solder/Quick Connect
|
Male
|
| Approvals
|
|---|
| Certification
|
c(UL)us |
| Packaging Information |
|---|
| Package Quantity
|
1
|
| Product Weight
|
0.05 lbs [0.02kg]
|
