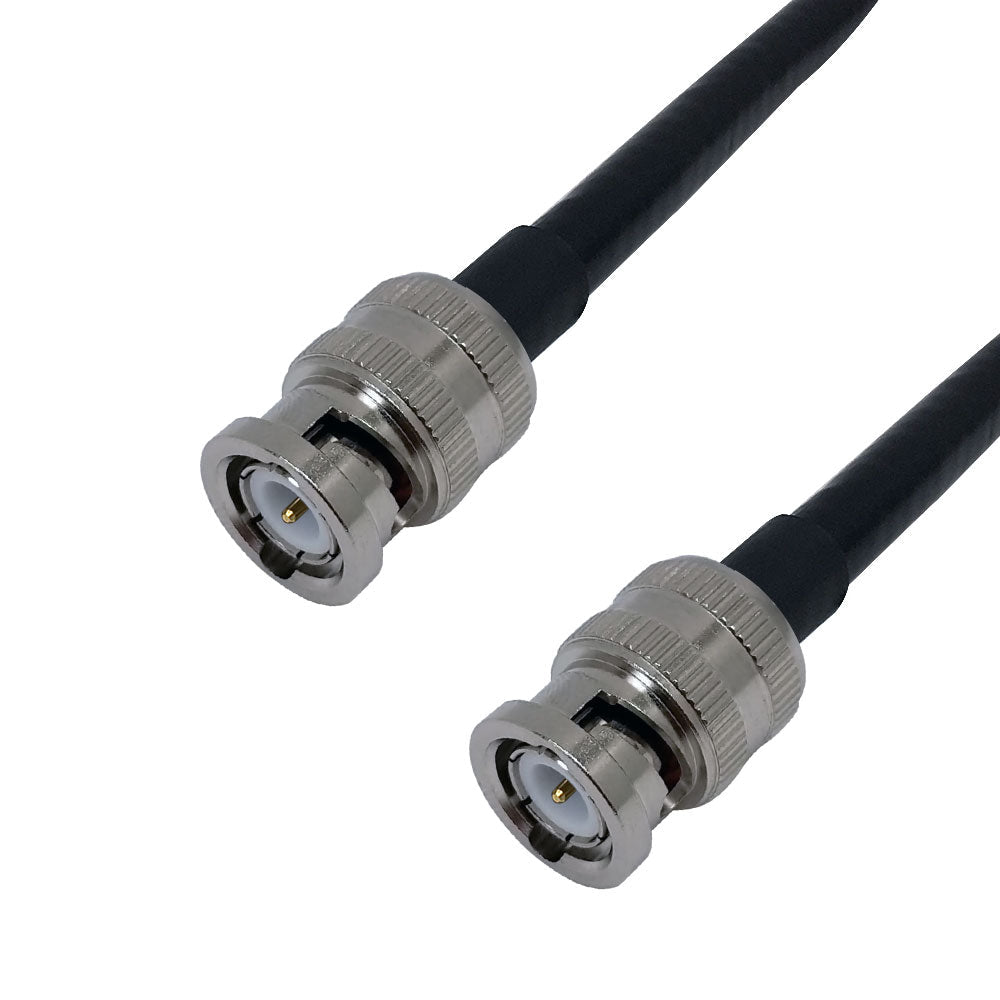

This HD-SDI 12GHz RG6/U precision serial digital video coaxial cable consists of 12GHz BNC male connectors on both ends. It is typically used to connect professional HDTV video equipment such as DSLR cameras and monitors.
|
|
Shielded Cable ConstructionThis is a constructed shielded 75 ohm 12GHz RG6/U solid 18AWG cable. Maximum Resolution and High Quality SignalThe cable is 12GHz and can offer a maximum resolution of 4K Ultra HD; it optimizes connectivity and maintains a clear signal integrity.
|
Application
Specifications
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Cable Diameter | 6.9mm |
| Connector Plating | Nickel |
| Contact Plating | Gold |
| Cable Type | RG6/U 75 Ohm 12GHz |
| Cable Shielding | 100% Aluminum Foil + 95% Tinned Copper Braid |
| Wire Gauge | 18AWG Solid |
| Jacket Material | PVC |
| Insulation Material | Gas-Injected FHDPE - Foam High Density Polyethylene |
| Fire Rating | CMR/FT4 |
| Operating Temperature | -30°C to +75°C |
| Maximum Pulling Tension | 69 lbs |
| Minimum Bend Radius | 2.75 inches |
| UV Resistance | Yes |
|
Performance
|
|
| Maximum Resolution | 4K UHD |
| Supports | SMPTE 2082-1 12 Gb/s UHDTV, SMPTE 2081-1 6 Gb/s UHDTV, SMPTE 424M 3 Gb/s HD-SDI 1080P |
| Nominal Impedance | 75 Ohms |
| Return Loss (Frequency -> Minimum Return) |
5 MHz - 1600 MHz -> 23db 1600 MHz - 4500 MHz -> 21dB 4500 MHz - 120000 MHz -> 15dB |
|
Connector(s)
|
|
| Connector A | 1 - BNC 12GHz Male |
| Connector B | 1 - BNC 12GHz Male |
|
Certification
|
|
| c(UL)us | Yes - Bulk Cable |
|
Environmental
|
|
| RoHS | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 - Cable |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
