Description

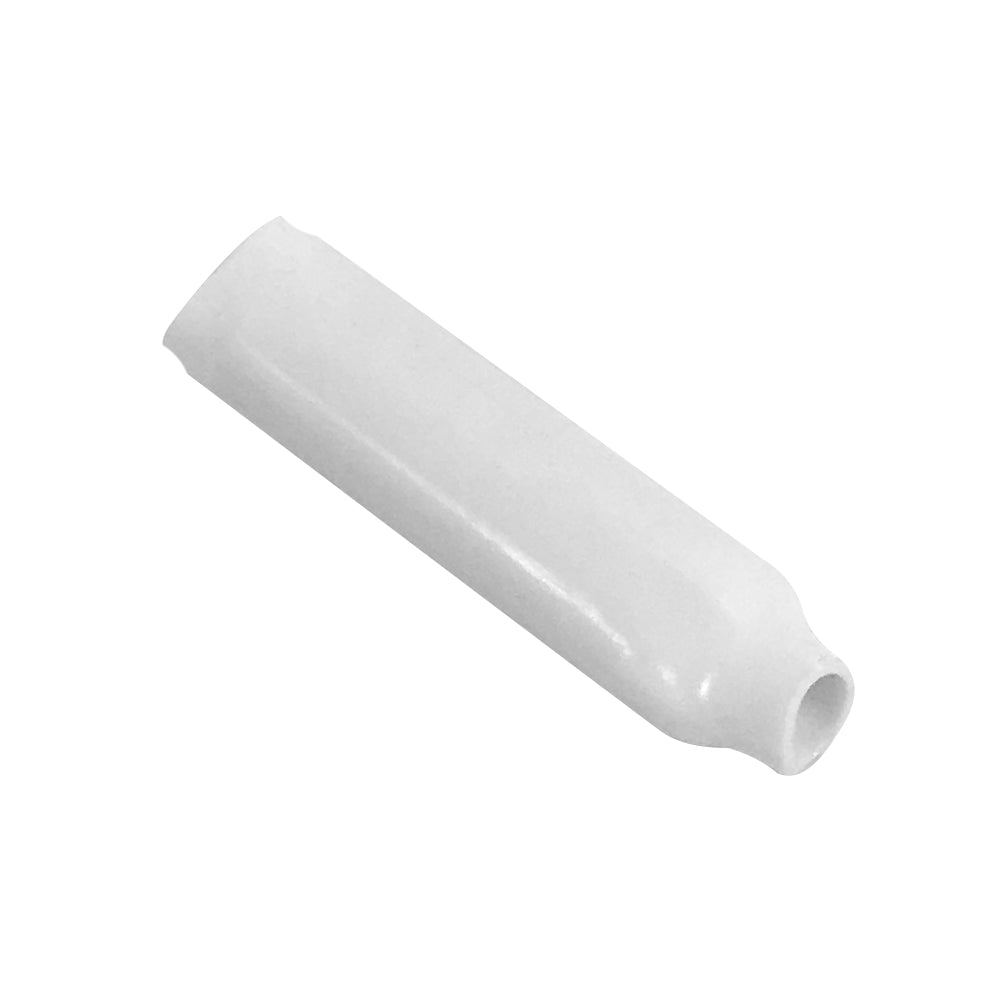

This B-Connector is used to connect low voltage spliced wire and is ideal for indoor use in a dry environment.
| Physical Characteristics | ||
|---|---|---|
| Part Number | CN-B | CN-B1 |
| Connection Type | B-Connector | B-Connector |
| Color | White | White |
| Gel Filled | No | No |
| Wire Range |
19-26 AWG Wire |
22-26 AWG Wire |
| Dielectric | N/A | 1000 V |
| Strength of Joint | N/A | 9 lbs |
| Material | N/A | Outer Shell: Plastic Type - Heat Shrink Tubing Metal Housing: Brass Inner Sleeve: Bright Nickel Plated Phosphor-Bronze |
| Wire Capacity | N/A | Four #24 AWG (insulated wires) Four #22 AWG (insulated wires) Three #20 AWG (insulated wires) Three #18 AWG (insulated wires) Three #16 AWG (stripped wires) |
| Environmental | ||
| RoHS | Compliant | Compliant |
| REACH | Compliant | Compliant |
| Packaging Information | ||
| Package Quantity | 500 per pack | 250 per pack |
