Description

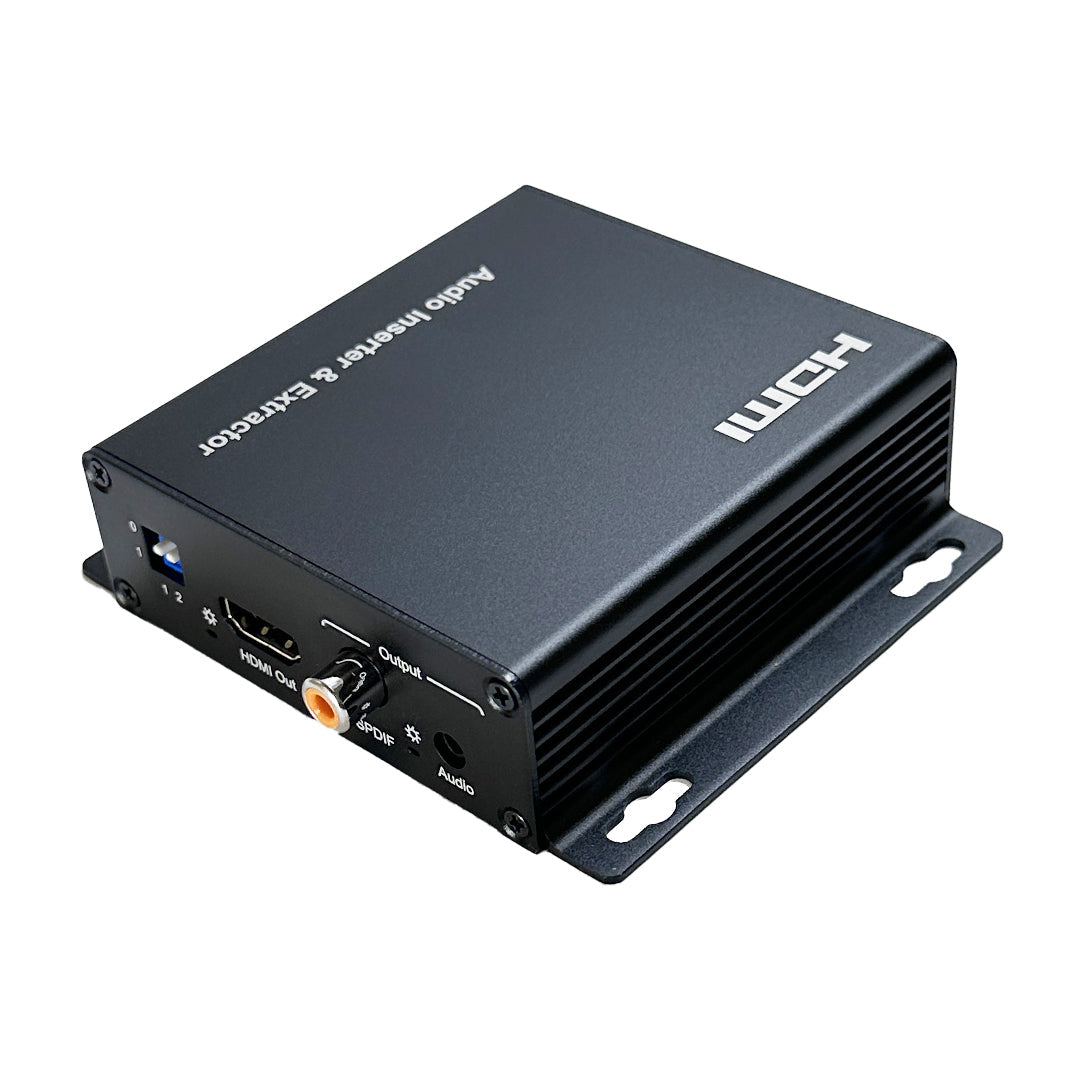

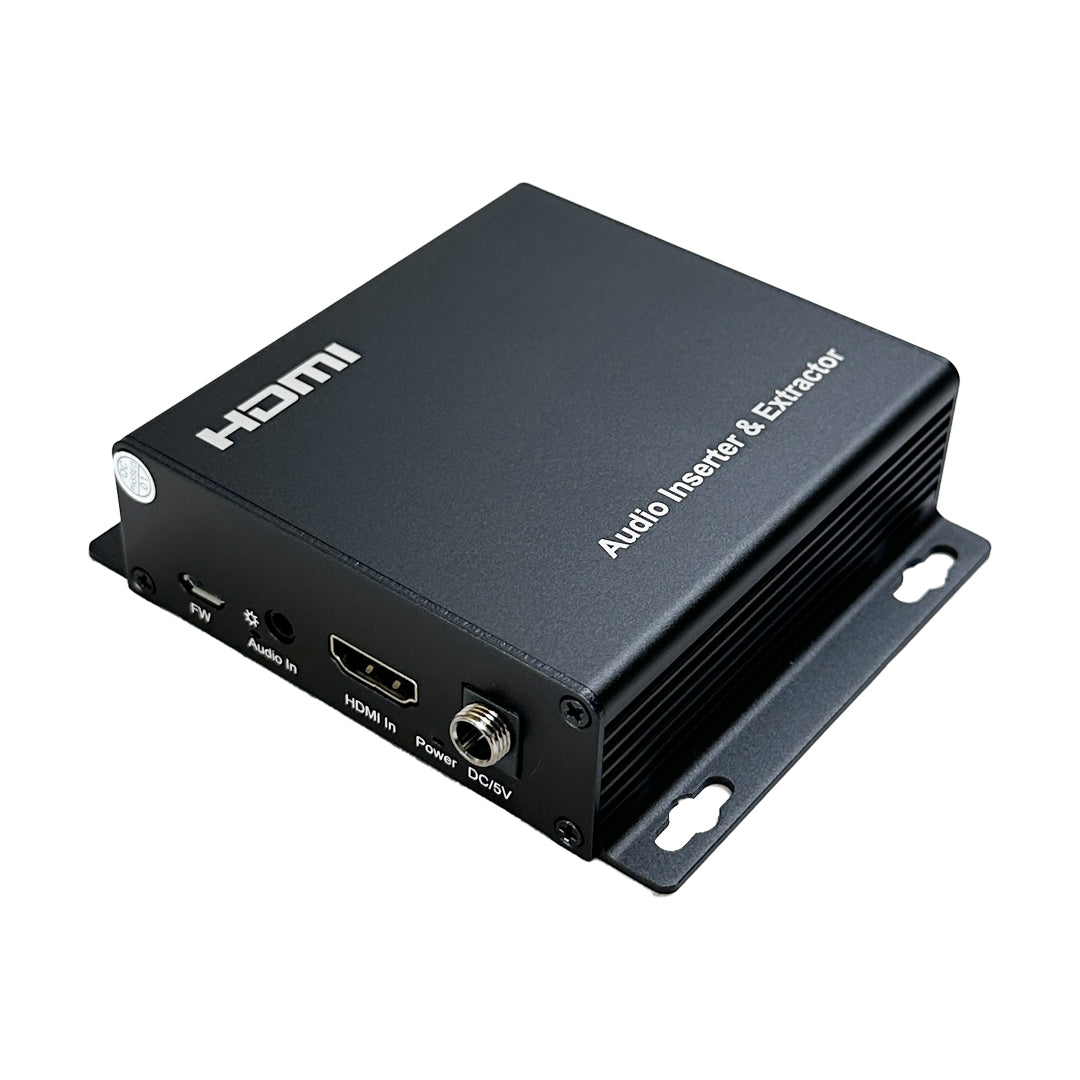

This HDMI audio extractor and embedder allows you to extract the audio embedded in an HDMI signal and output it via analog stereo or digital coaxial audio. It also allows you on embed analog stereo audio to the HDMI signal as well. It easily connects from one HD source to one HD display and can support 4Kx2k@60Hz or HDMI v 2.0 specifications.
Key Features:
- HDMI V2.0, Up to 4Kx2K resolution.
- Can be configured to work as either a HDMI audio extractor or audio embedder.
-
Extracts high quality Stereo Analog audio & Digital S/PDIF (RCA) audio from the incoming HDMI signal without losing any active audio (*Note: Does not convert/decode Dolby Digital 5.1/7.1 HDMI audio source to 2-channel Stereo audio).
-
Support 2 DIP switch to extract the digital HDMI audio signal from the HDMI input to 2 channel analog stereo output or 5.1 channel Audio output.
- Supports HDMI Input & Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit), HDMI 2.0a, HDCP 2.2, 18Gbps.
- Inserts external stereo analog audio into HDMI signal.
- Supports CEC bypass (Consumer Electronics Control).
- Advanced EDID management & HDCP2.2/1.4 Compliant.
- Supports HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission.
- Support firmware updating through USB port.
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Aluminum |
| Operating Temperature | -5℃ to +40℃ |
| Operating Humidity | 5 to 90% RH (No Condensation) |
| Performance | |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 volts p-p(TTL) |
| Support Video format | 4Kx2K/1080P/1080i/720P/576P/576i/480P/480i 3D video |
| Support Video Color Format | xv-YCC/deep color 36bit |
| Support Audio Format | PCM, DTS-HD Master Audio, Dolby true-HD |
| Data transfer speed rate | 18Gbps |
| HDCP | Compliant HDCP2.2/1.4 |
| DIP Switch |
Audio Configuration 00 - Audio Embedded 01 - PCM 2.0 Audio Extraction 10 - 5.1 Audio Extraction 11 - Bypass |
| Power | |
| External Power Supply | 5V/1A |
| Power consumption | 1.5W (max) |

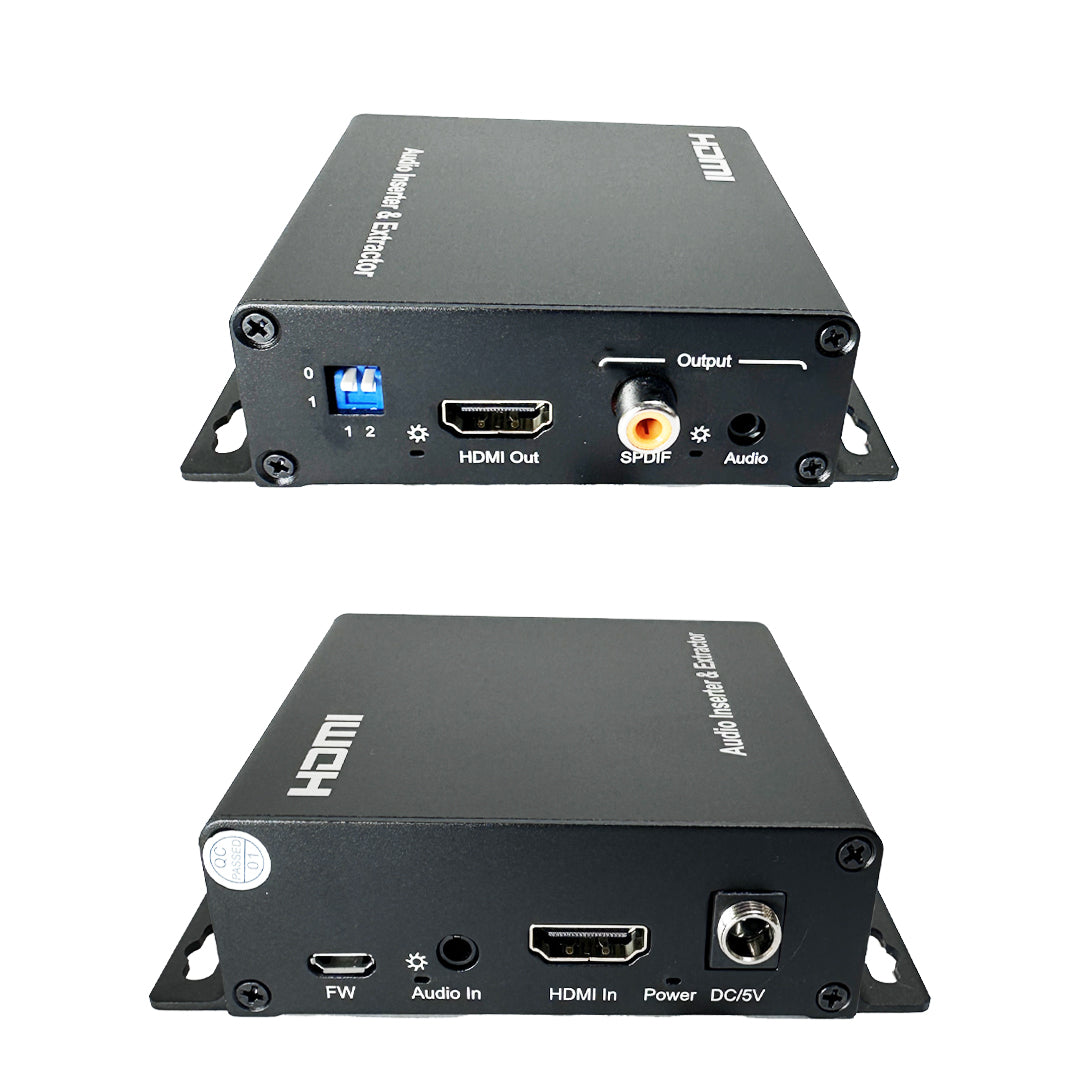

| Connector(s) | |
| Input |
1 - HDMI Female |
| Output | 1 - HDMI Female 1- SPDIF Audio (RCA) 1- 3.5mm Stereo Analog |
| Approvals | |
| Device | FCC/CE |
| Power Adapter | c(UL)us/FCC/CE |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.3 lbs [0.1kg] |
| Package Weight | 1.10 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 -Main unit |

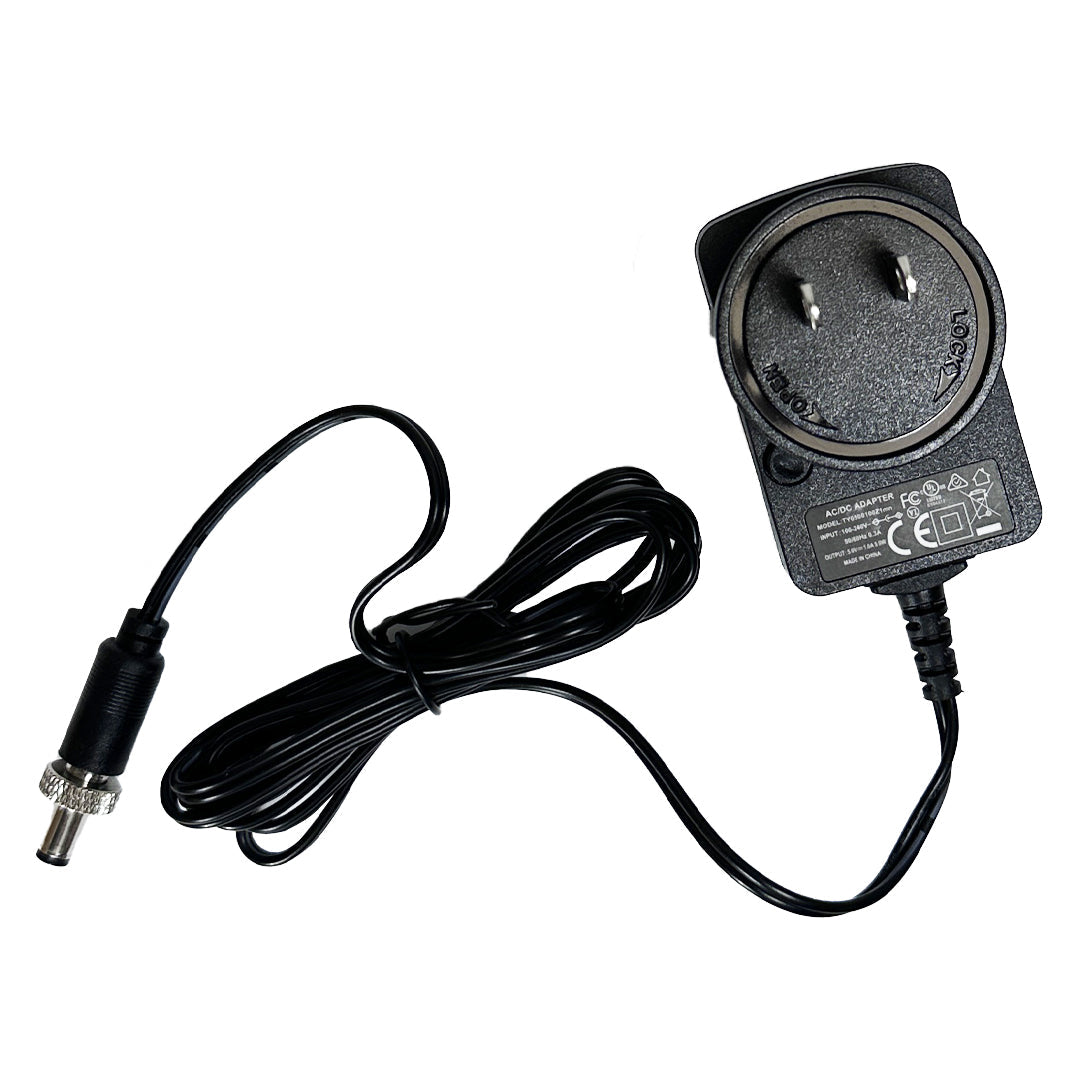

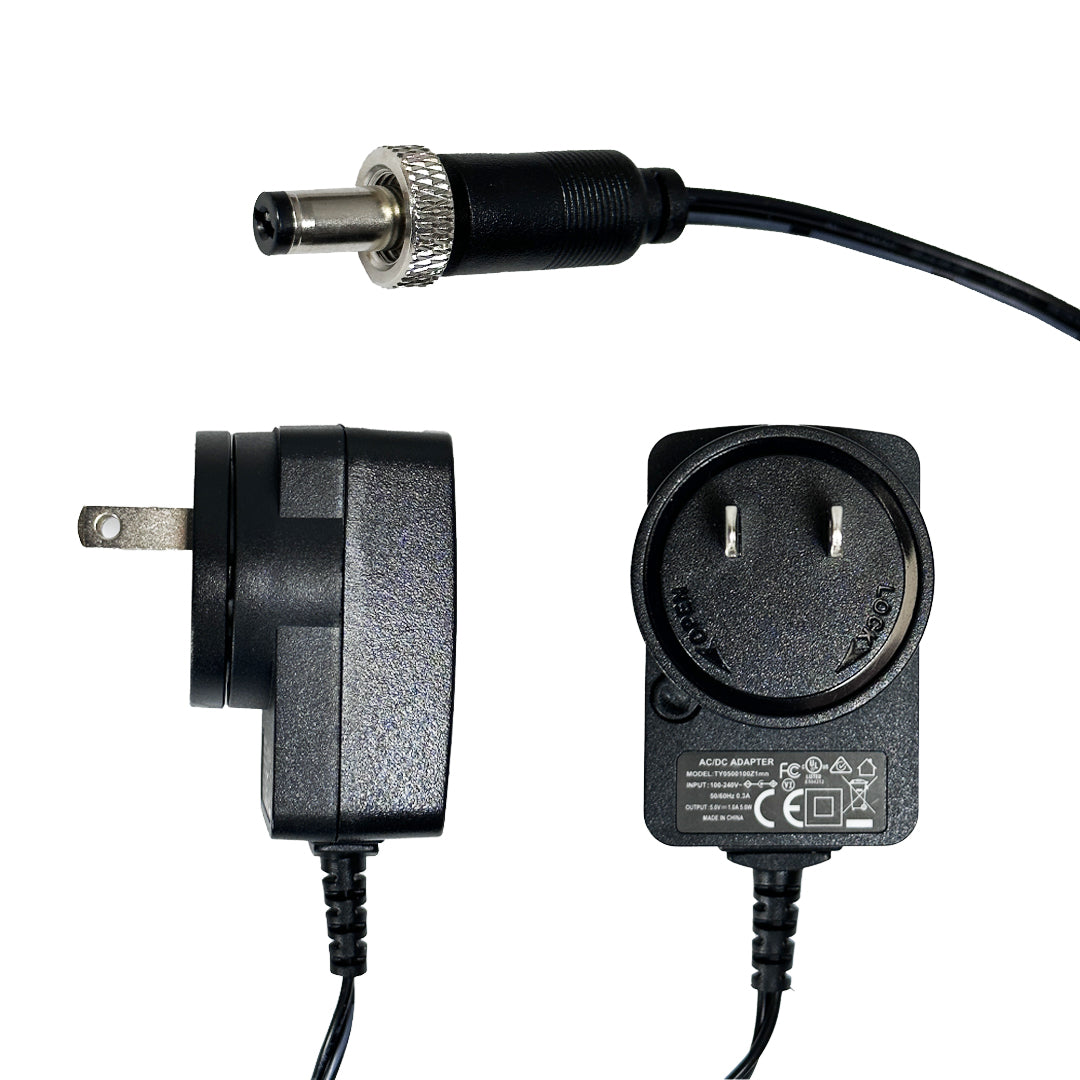

| 1 -5V/1A DC Power Supply |
|
| 1 -User Manual | |
