DisplayPort 8K@60Hz AOC Active Optical Cable - 40Gbps V2.0Cable - CMP Plenum Rated

DisplayPort CablesSKU: DP-205-15PL

Length: 15ft
Sale price$159.60 CAD
In stock



This active optical DisplayPort cable is plenum rated and consists of a DisplayPort male connector on both ends. The cable has a built-in signal booster chipset which supports DisplayPort 2.0 and provides a wide range of features in a compact, lightweight form-factor. These cables are fully HDCP 1.4 / 2.2 compliant and supports signals with data rates up to 40 Gbps (HBR3). It is typically used to connect a DisplayPort source such as a PC or laptop to a monitor and supports full 8K Ultra HD resolution at 60Hz (4:4:4) up to 100 meters.

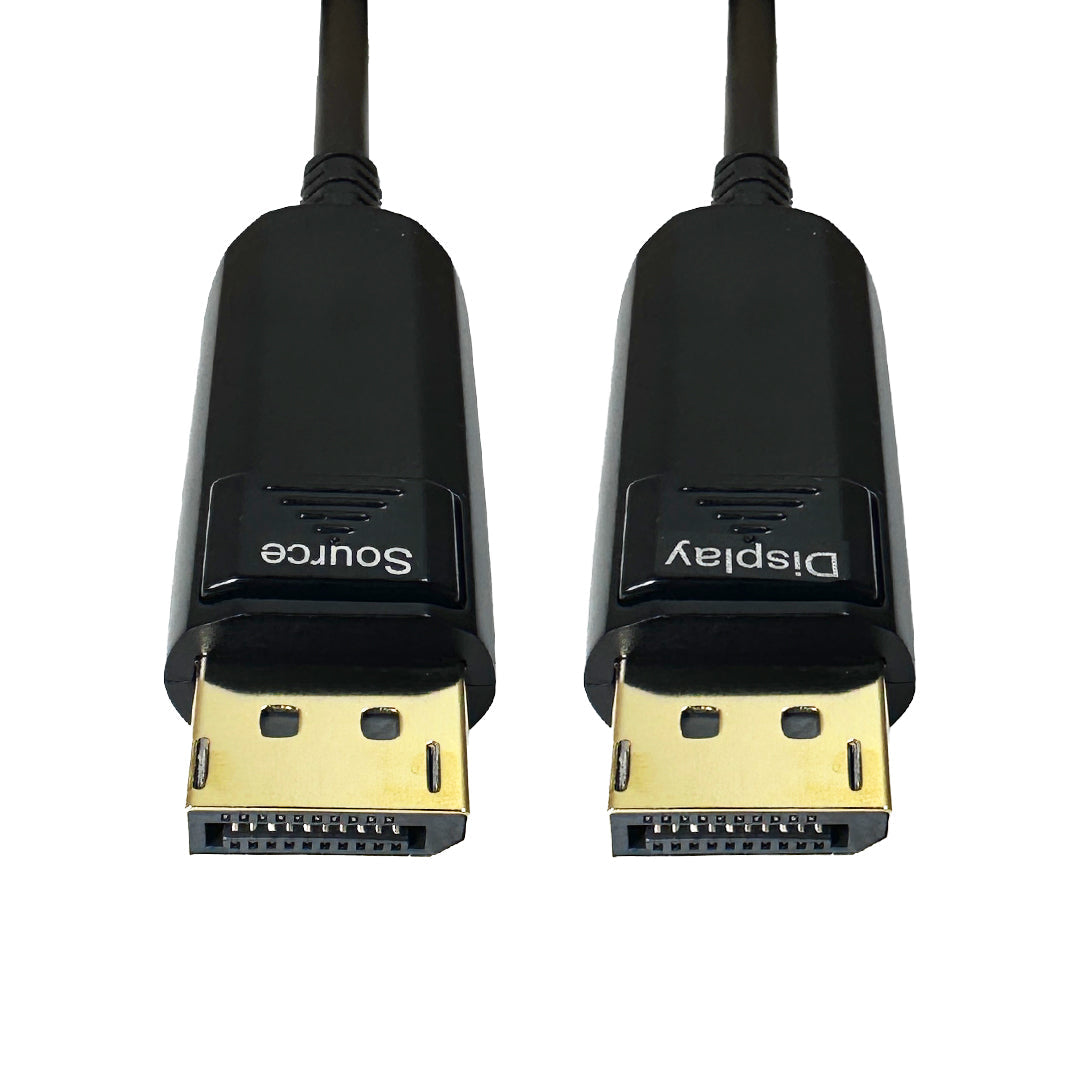

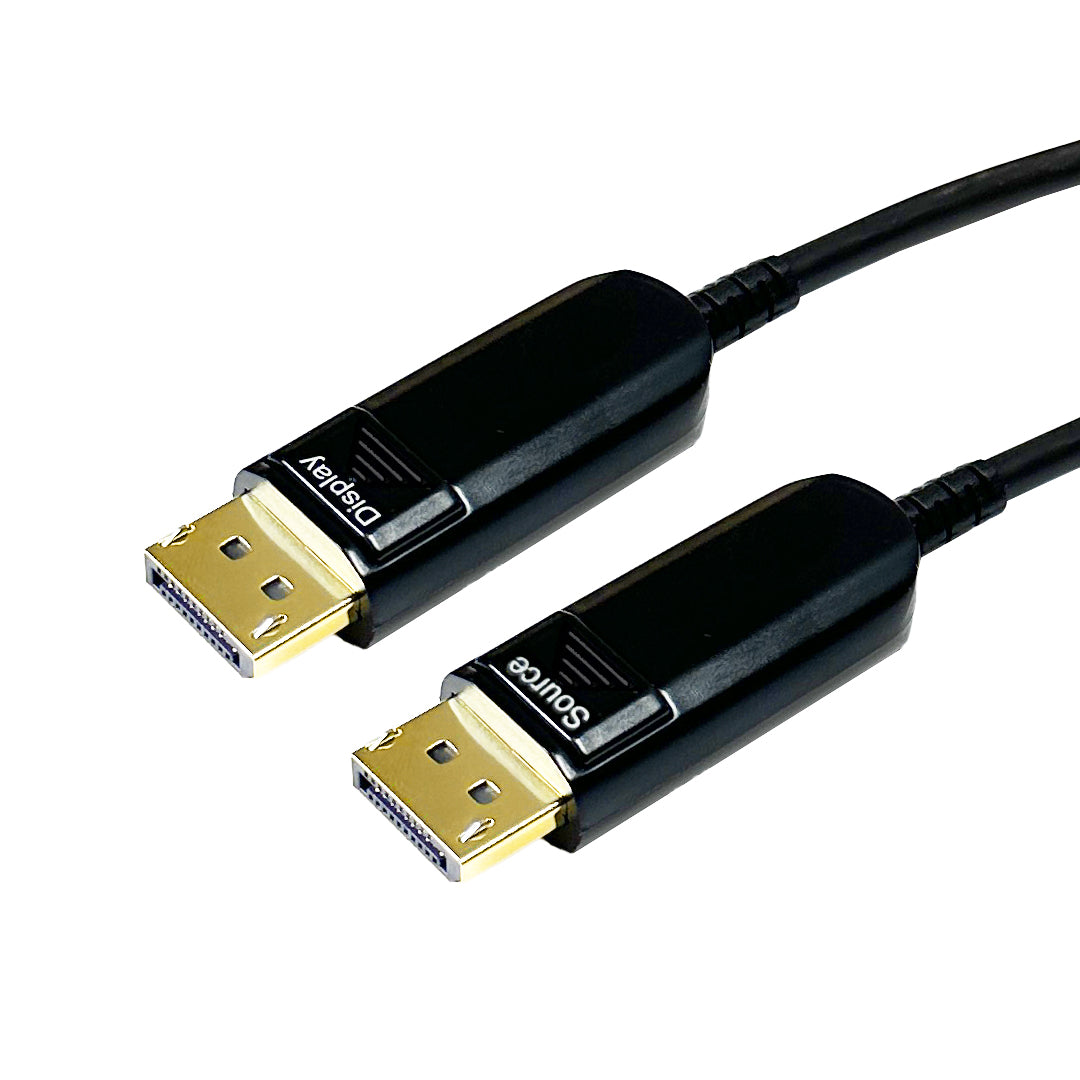

This active optical DP cable is directional. Each end of the cable is marked "Source" and "Display" to indicate the direction of the signal flow. Always test the cable before permanently installing in a wall or ceiling to be sure that the signal flow is correct and for device compatibility.


  • External power not required
  • Hybrid optical cable with fiber and copper wire
  • Plug and Play
  • Support computer resolutions to 8K@60Hz with 40Gbps bandwidth

Extend DisplayPort Signals Over Optical Cable

These cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 8K Ultra HD resolution and ensure a full 40Gbps bandwidth with no signal loss over longer distances.

Optimum Performance and Easy Installation

These cables utilize AOC technology which make them more flexible and thinner than traditional long-length DisplayPort cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.



Physical Characteristics
Connector Plating Gold
Shell Material Zinc-Alloy
Cable Specs Fiber Optic 50/125um multimode / Copper
Cable Diameter 4.8mm
Shielding 75% Braid + 100% Aluminum-Mylar Foil
Jacket Fire Rating CMP
Jacket Material PVC
Strain Relief Molded PVC
Connector A DisplayPort Male
Connector B DisplayPort Male
Resolution Ultra HD 8K @ 60Hz
Chroma Sampling 4:4:4
Bandwidth 40Gbps, 8.1 Gbps per channel
Supported Distance 100m
Support HBR3, HDCP
HDCP Compliant Yes, 1.4 / 2.2
DisplayPort Version v2.0
c(UL)us Yes, Cable
CE Yes
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Warranty 3 Years Warranty
Cable Weights
15ft 25ft 35ft 50ft 75ft 100ft 150ft
0.50 lbs (0.22 kg) 0.70 lbs (0.32 kg) 0.80 lbs (0.36 kg) 1.05 lbs (0.47 kg) 1.50 lbs (0.68 kg) 2.65 lbs (1.20 kg) 3.50 lbs (1.58 kg)
