AOC 2.0 - Active Optical Cable - HDMI High Speed with Detachable Head - 4K@60Hz - 18Gbps - HDR Cable - CMP Plenum Rated

HDMI CablesSKU: HDMI-235-25PL

Length: 25ft
Price:
Sale price$102.65 CAD
Stock:
In stock

Description

Overview

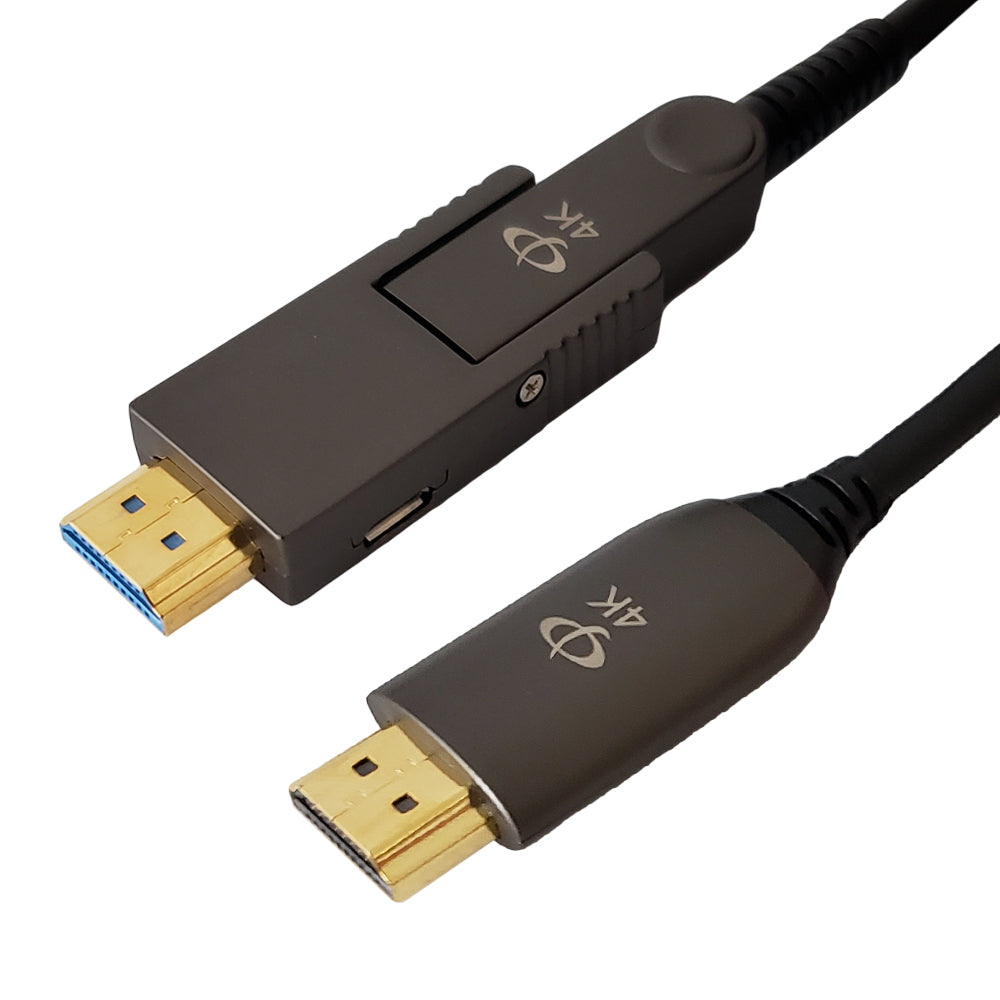

This active optical High-Speed HDMI® cable is plenum rated and consists of a HDMI male connector on both ends. It has a detachable head on one end which allows the cable to be pulled through smaller diameter conduit easily. The cable has a built in signal booster chipset which allows it to maintain a HDMI 2.0 signal over a thin cable at longer lengths with no signal loss. It is typically used to connect a HDMI source such as Blu-Ray players and PC's to a HDTV or monitor and supports full 4K Ultra HD resolution and High Dynamic Range (HDR). The AOC cable also works with splitters, switches and other video sharing devices.

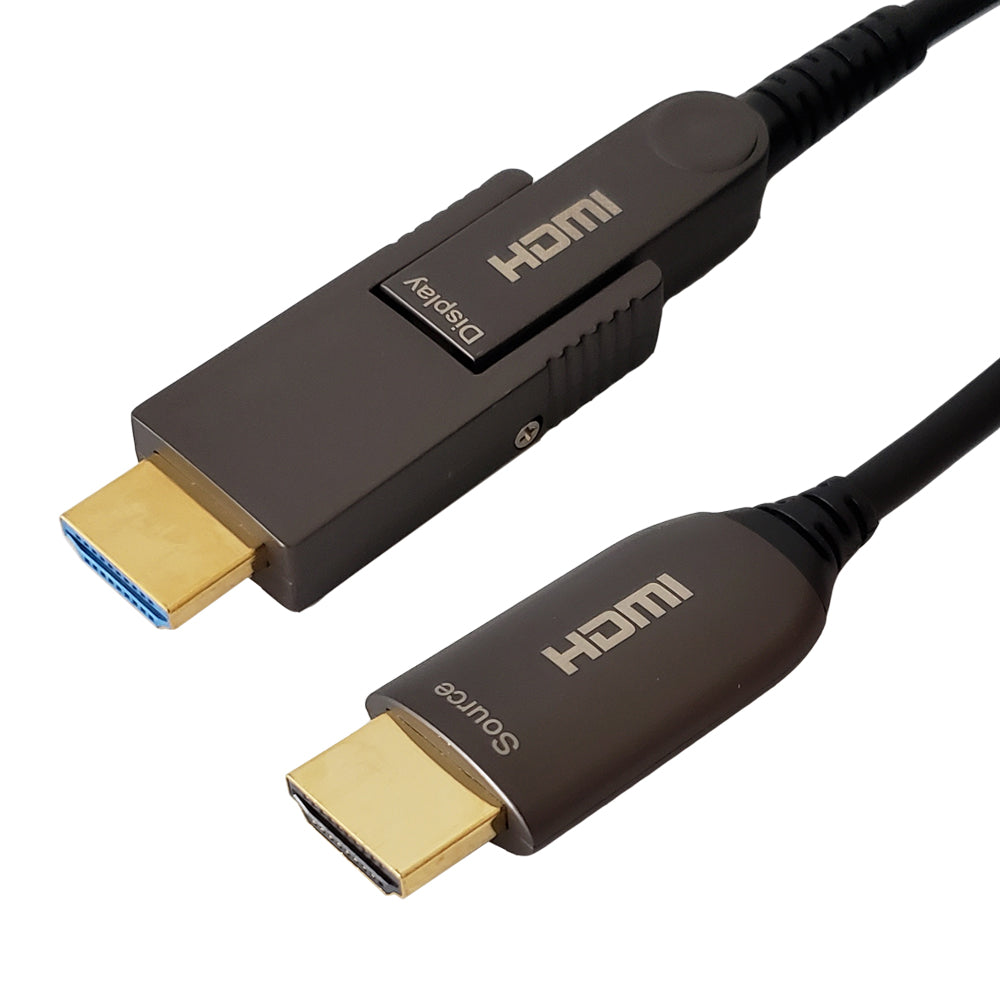

NOTE: This active optical HDMI® cable is directional. Each end of the cable is marking "Source" and "Display" to indicate the direction of the signal flow. Always test the cable to be sure that the signal flow is correct and for device compatibility before permanently installing in a wall or ceiling.

The product is supplied with an optional USB cable to supplement power if the HDMI source does not provide enough amperage.

This product also comes with a protective cover to protect the connector during installation.

Extend HDMI Signals Over Optical Cable

These cables are plenum rated and constructed from both copper and optical fiber. They feature a built-in booster chipset ideal for maintaining 4K Ultra HD resolution and ensure a full 18Gpbs bandwidth with no signal loss over longer distances.

Optimum Performance and Easy Installation

These cables utilize AOC technology which make them more flexible and thinner than traditional long-length HDMI cables, making them easier to install. The transmission signal is transferred over fiber optic cable which eliminates EMI/RFI interference, maintaining a high level of performance even in high interference environments.

Applications

Digital Signage - LED signboards in streets and in stadiums - Medical Imaging Equipment - Airplane On-board Video System - Home Theater - Blue-ray, 3D video, Projector, Set-up box, DVR, Game Consoles and Computer - TV Broadcast Station - Conference Room Video Equipment - Security systems

Specifications

Physical Characteristics
Color
Black
Connector Plating Gold

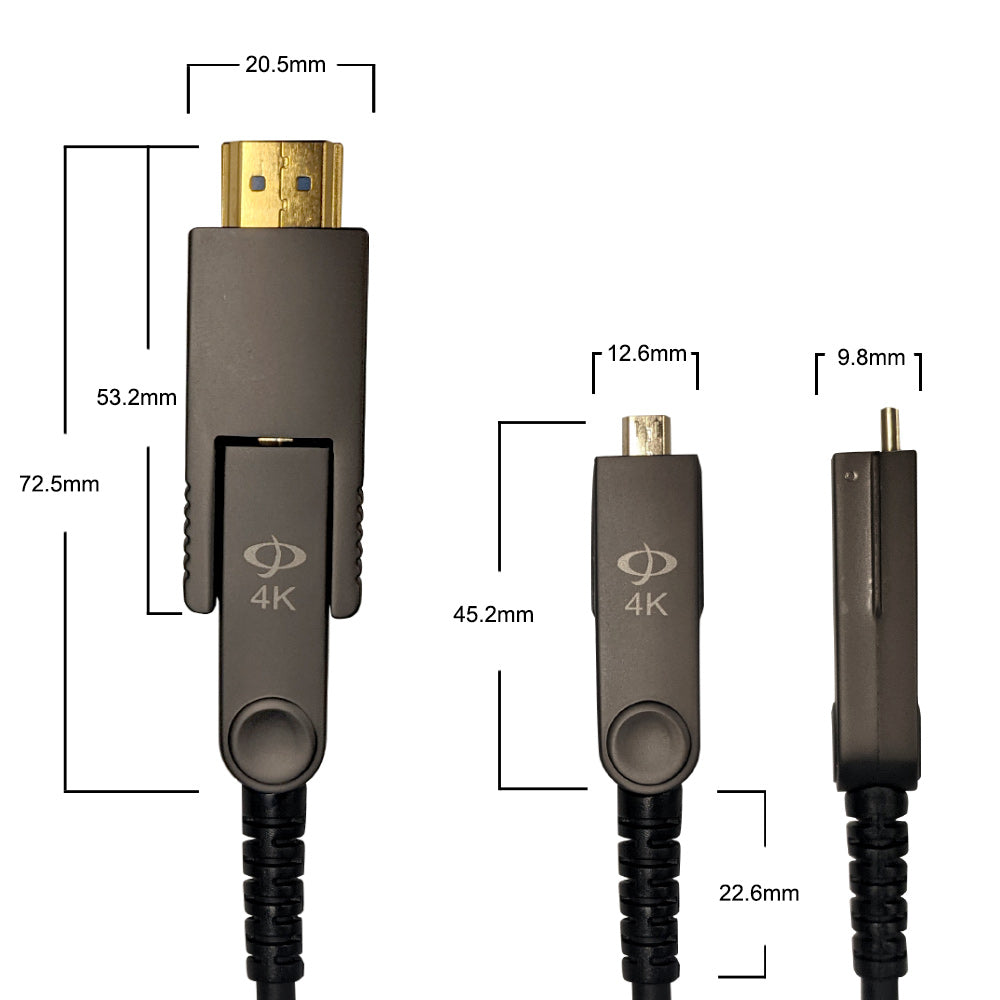

Detachable Connector Dimensions (WxDxH) Type A: 33mm x 20mm x 9mm
Type D: 39.8mm x 13.8mm x 9.9mm
Type D/A Adapter: 44mm x 20.6mm x 9.5mm
Pulling Tool: 53.5mm x 19.2mm x 15mm
Shell Material Zinc-Alloy
Cable Specs Hybrid with OM3 Fiber / Copper
Cable Diameter 4.5mm
Shielding 75% Braid + 100% Aluminum-Mylar Foil
Jacket Fire Rating Plenum Rated CMP
Jacket Material PVC
Strain Relief Molded PVC
Strain Relief Length 22.6mm
Bend Radius 48mm
Connectors
Connector A HDMI type A (19 pin) Male
Connector B HDMI type D with HDMI D/Female to HDMI A/Male Adaptor
Compatible Product
HDMI-235-DH Replacement HDMI Detachable Head for AOC 2.0 - Active Optical Cable (Cable Series HDMI-235-xxPL)
Performance
Supported Resolution HDTV : 480p, 720p, 1080i and 1080p deep color, 4K@30Hz, 4K@60Hz(4:4:4), 3D Full HD 1920 x 1080 , up to 100 meters
Video Bandwidth 6 Gbps x 3 Channel (max) + Clock
Video HDR, Deep Color (48-bit) and 3D Compatible
Audio 32 Channel Audio with ARC
O/E Converter 4 channel 850 nm VCSEL array (Transmitter)
4 channel GaAs PD array (Receiver)
Support CEC, EDID, HDCP
Built in Ethernet Channel Yes
HDCP 2.2 Compliant Yes
HDMI Version HDMI 2.0, Backward Compatible with HDMI 1.4
Approvals
c(UL)us Yes
CE Yes
FCC Yes
CPR Yes
ATC Yes
Environmental
RoHS Yes
Reach Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1
Warranty Information
Warranty 3 Years Warranty
Cable Weights
25ft 35ft 50ft 75ft 100ft 150ft 200ft 300ft
0.52 lbs
0.69 lbs 0.93 lbs 1.37 lbs 2.25 lbs 3.50 lbs 4.50 lbs 7.00 lbs
