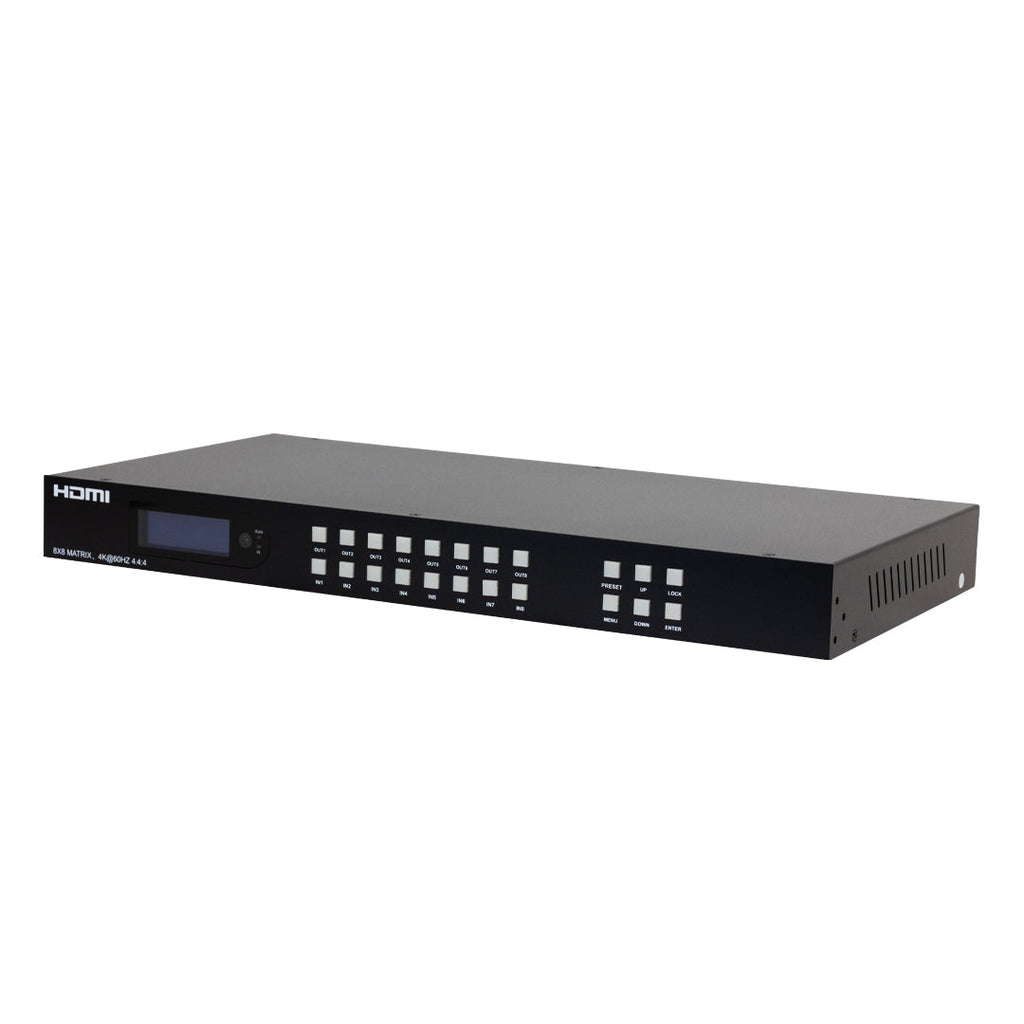

This 8x8 HDMI matrix switch enables you to connect up to eight HDMI sources to up to eight HDMI displays. Any one of the eight inputs can be displayed on any one of the eight outputs. It is typically used to connect HDMI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to HDMI displays such as HDTVs, HD projectors or HDMI monitors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | 0℃ ~ 40℃ |
| Storage Temperature | -10℃ ~ 60℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Input Voltage | 125 VAC |
| Power Supply (Transmitter) | 12VDC 3A |
| Power Consumption | 28W Max. |
| Connector(s) | |

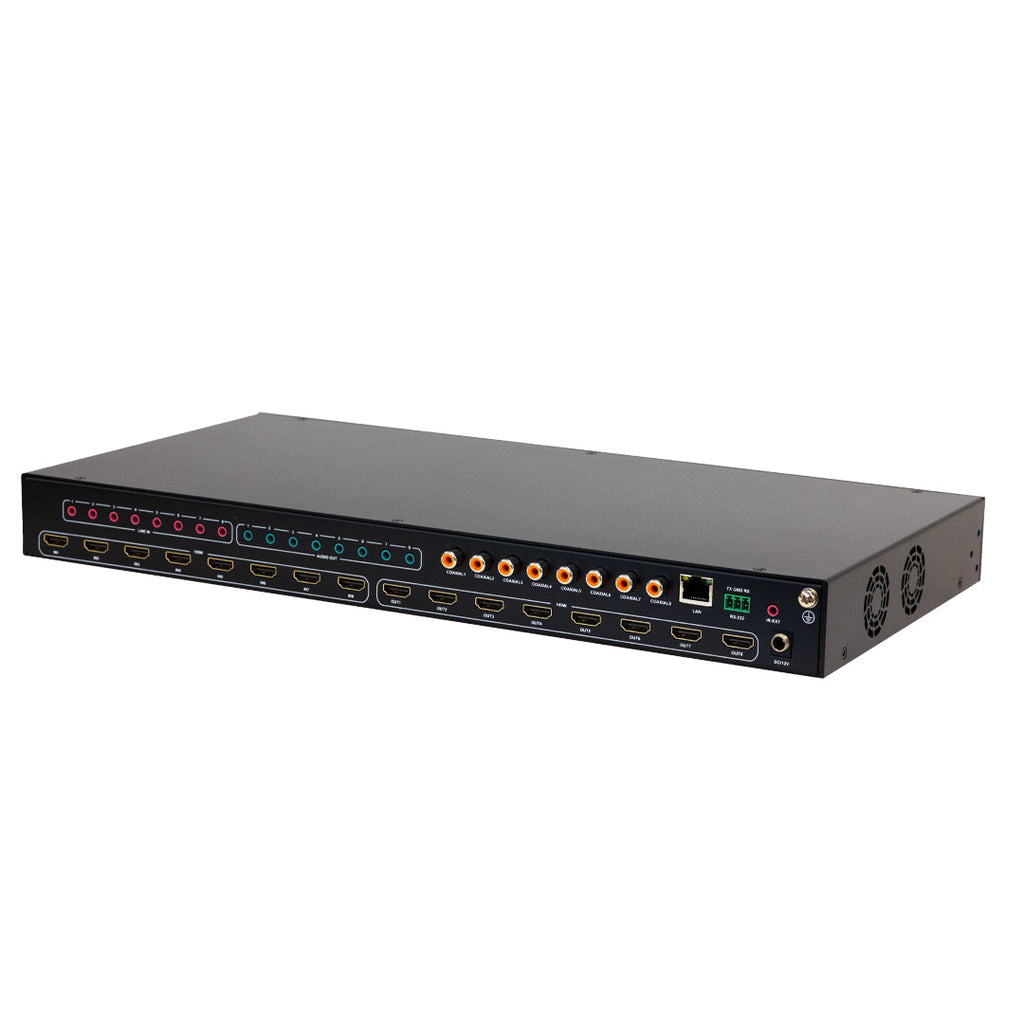

| Input | 8 x HDMI Female, 8 x 3.5mm Stereo Jack |
| Output | 8 x HDMI Female, 8 x SPDIF, 8 x 3.5mm Stereo Jack |
| RS-232 Serial Port | DB9 Female |
| Ethernet Port (IP Control) | RJ45 Female |
| IR Ext Port | 1 x 3.5mm Stereo Jack |
| Performance | |
| Video | 480p@60hz,576P@50hz,720P@60hz, 1080P@24hz,1080P@50hz,1080P@60hz,4K@24hz,4K@30hz, 4K@60hz YUV4:2:0,4K@ 60hz YUV4:4:4 |
| Audio | LPCM2.0-5.1/16-24BIT/32-192KHZ, Dolby Atmos and DTS-X |
| HDMI Version | HDMI 2.0 (4K@60Hz YUV4:4:4) |
| Bandwidth | 18 Gbps |
| HDCP Version | HDCP2.2/1.4 Compliant |
| IR Control | Compliant |
| 3D Compliant | Compliant |
| Other Features |
Support HDR10, HLG, Dolby Vision Support EDID management, CEC and ARC |
| Factory Default Information | |
| Login Credentials | IP Address : 192.168.1.168 Default Username : admin Default Password : 123456 |
| RS-232 Baud Rate | 115200 |
| Approvals | |
| Power Adapter | c(UL)us |
| Power Cable | c(ETL)us |
| Environmental | |
| RoHS | Compliant |
| Certification(s) | |
| CE | Compliant |
| FCC | Compliant |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 6.20 lbs [2.81 kg] |
| Contents | |

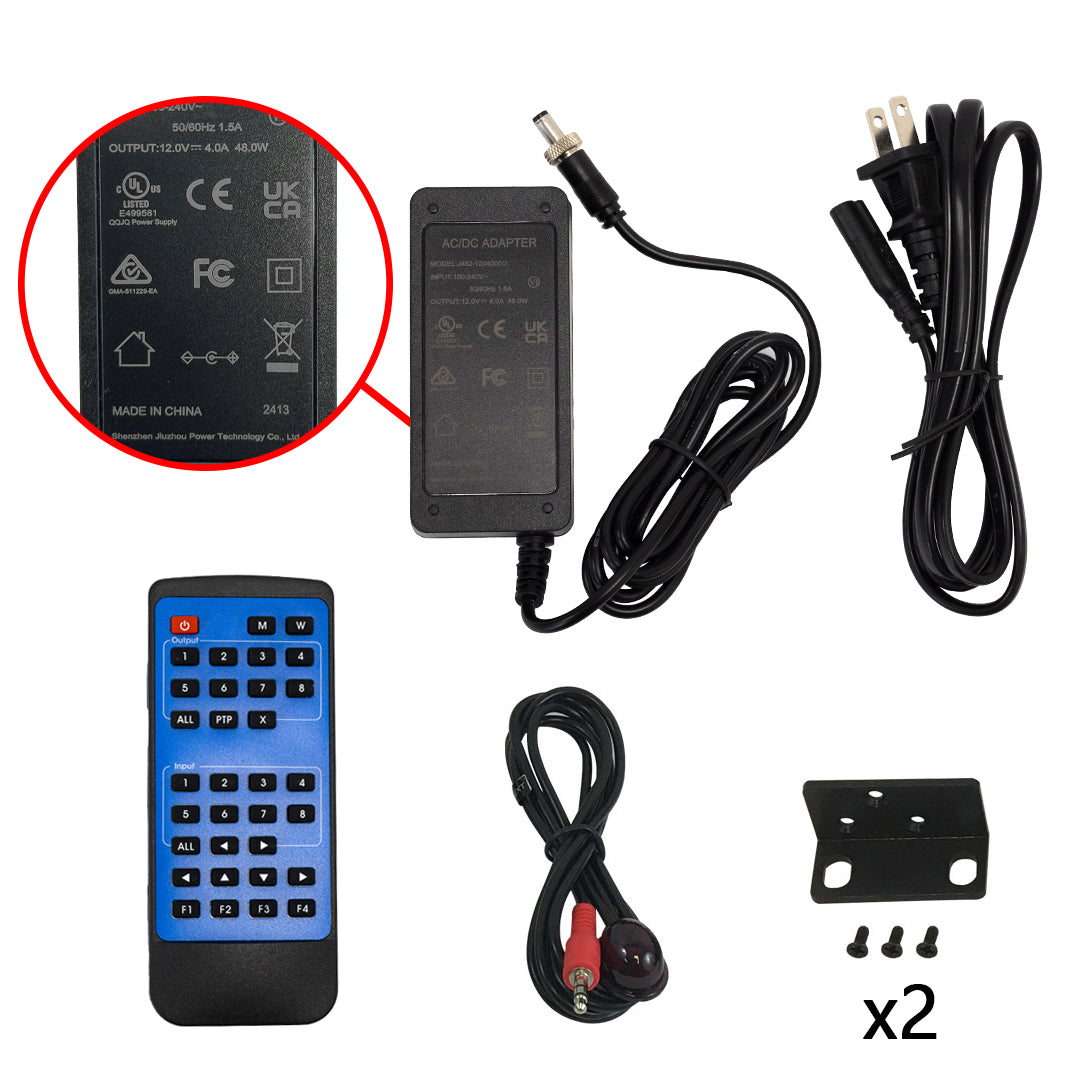

| Included in Package | 1 - HDMI Matrix |
| 1 - IR Ext RX Cable | |
| 1 - DC12V 3A Power Supply | |
| 1 - Remote Control | |
| 1 - Mounting Kit | |
| 1 - CD for Control Software & Manual | |
2-YEAR WARRANTY
Infinite Cables Inc. offers a 2-year warranty on selected Power Adapters, NVR/DVR's, network switches, PoE products and all video boxes to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
| SKU | Weight | |
| VM-HDMI-207 | 6.2 lb |
