Description

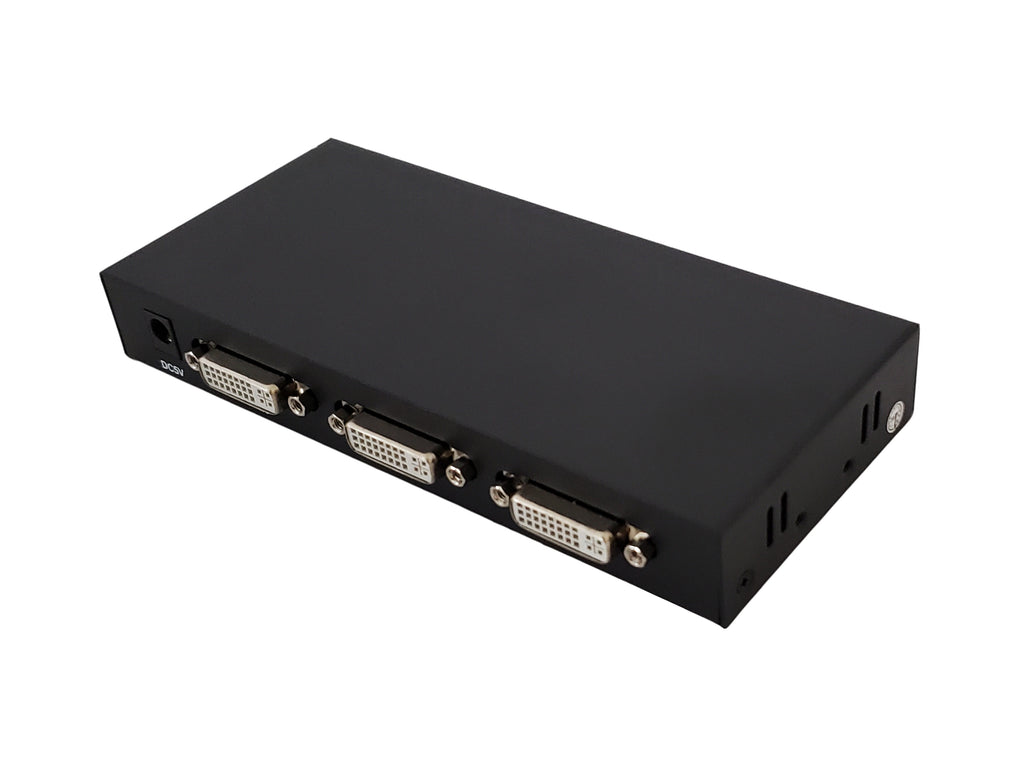

This 1x8 DVI splitter enables you to display one DVI source to eight DVI displays simultaneously. It is typically used to connect DVI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to DVI displays such as HDTVs, HD projectors or DVI monitors.
Features
- 1x DVI input and 2xDVI output/ 4xDVI output/ 8xDVI output
- Support resolution up to 4096x2160@30Hz
- Support for long distance signal transmission
- Installs in minutes, No loss of quality
- Supports wide range voltage DC input (DC5V)
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Operating Temperature | -5 to +45? |
| Storage Temperature | -15 to +55? |
| Operating Humidity | 10 to 90%RH (No Condensation) |
| Storage Humidity | 5 to 95%RH (No Condensation) |
|
Connectors
|
|
| Video Input Connector | 1 - DVI-D 29-pin Female |
| Video Output Connector | 8 - DVI-D 29-pin Female |
|
Power
|
|
| Max. working current | 1.2A/5V |
| Power Supply | AC 100V?240V 50HZ/60Hz, DC5V/2A/12V |
|
Performance
|
|
| DVI Resolution | 4096x2160@30Hz |
| Max. Signal Bandwidth | 340MHz |
| Max. Baud Rate | 3.4Gbps Serial Link |
| Cable Distance | 10 m (Max.) |
| Input/Output TMDS signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC signal | 5Volts p-p (TTL) |
|
Approvals
|
|
| Power Cable | c(UL)us |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Dimensions | 440x130x44 (LxWxH) mm |
| Product Weight | 5.6 lbs [2.5kg] |
| Package Weight | 6.6 lbs [3kg] |
|
Contents
|
|
| Included in Package | 1 - DVI Splitter |

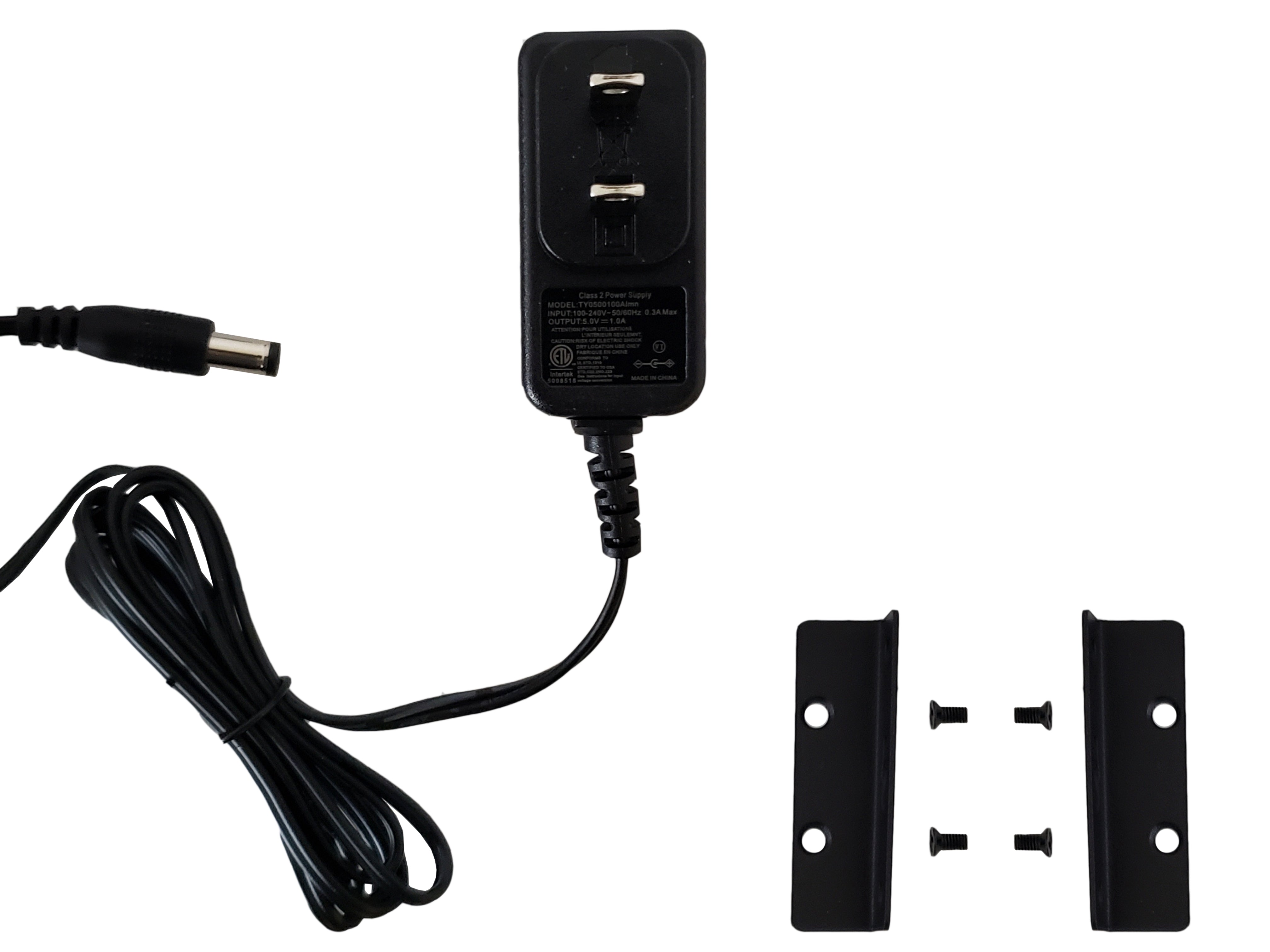

| 1 - Power Adapter | |
| 1 - User Manual | |
