Description

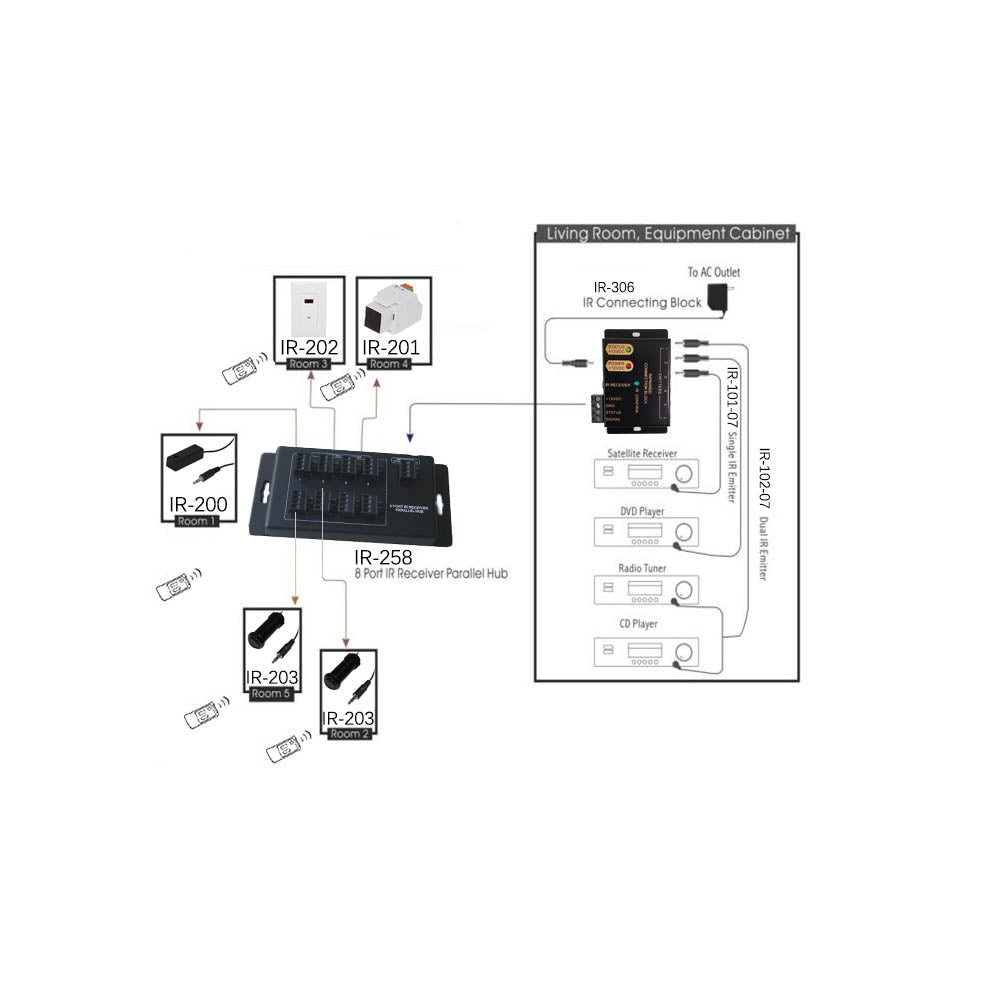

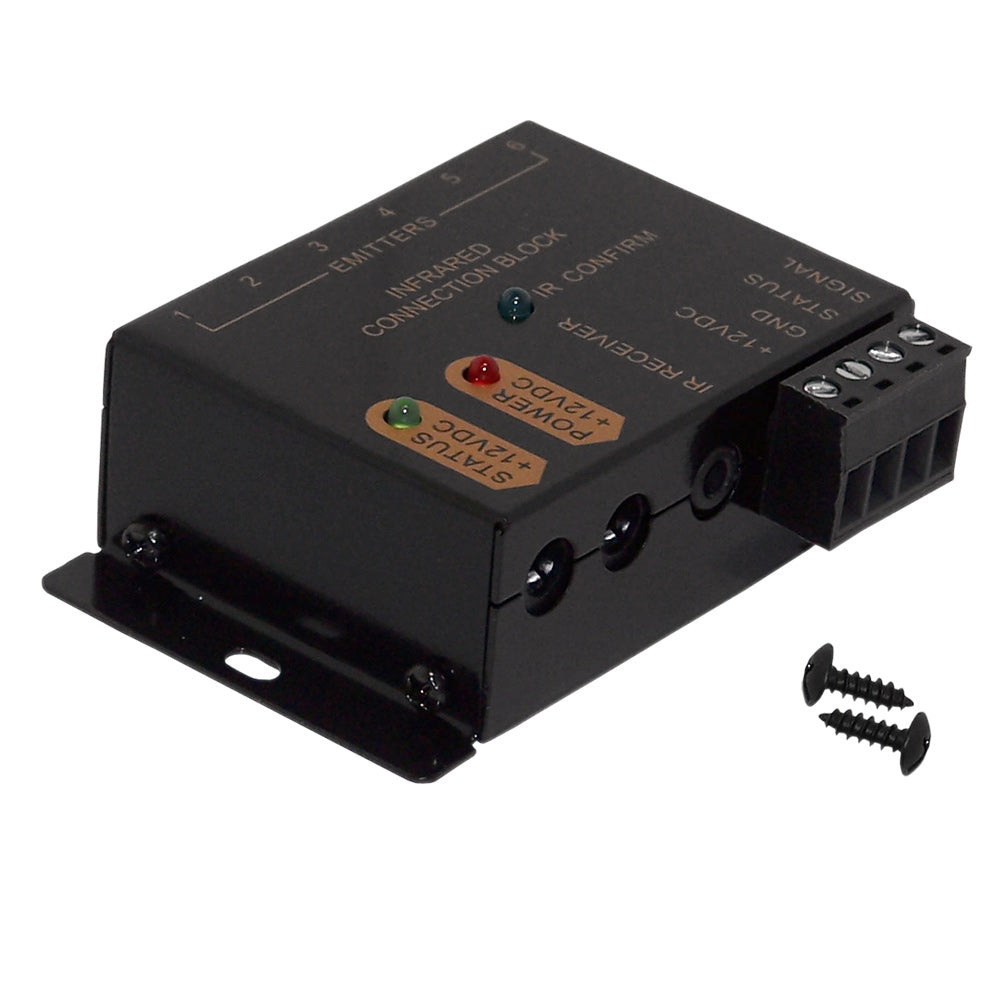

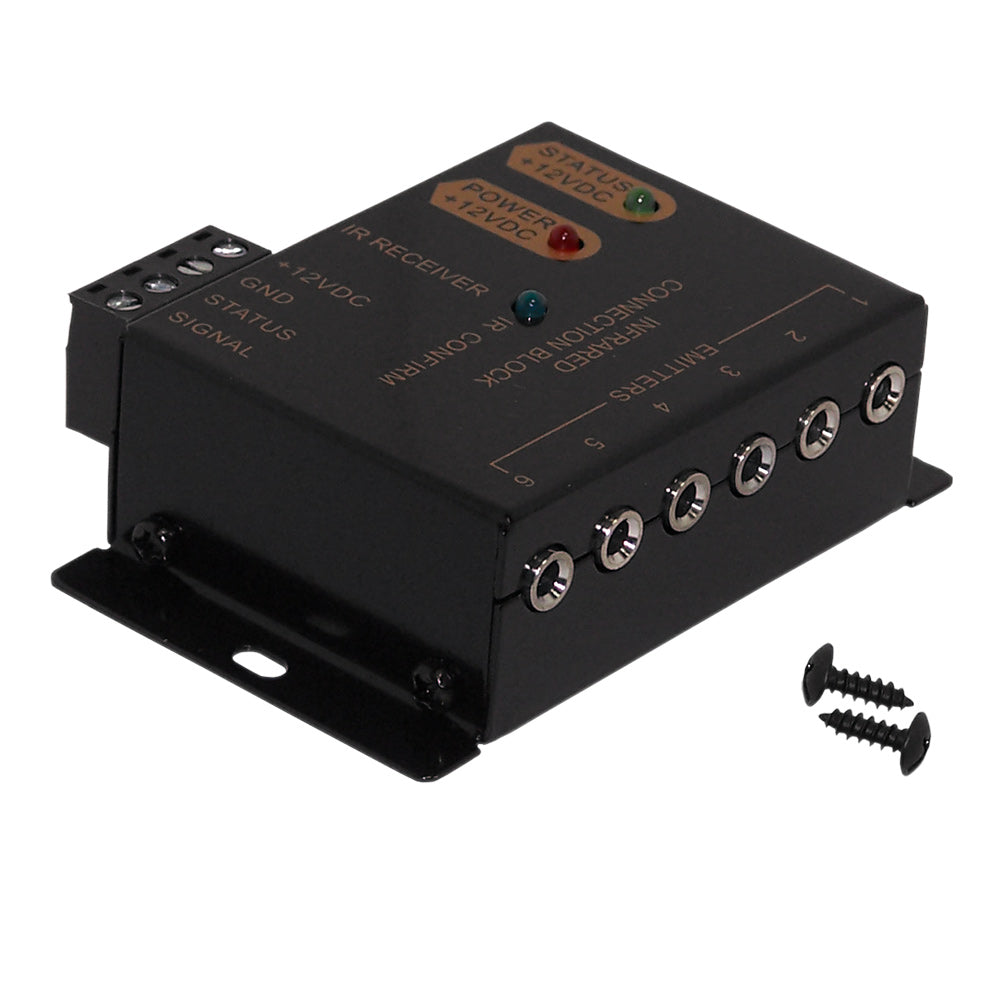

This active IR connecting block consists of a two IR receiver input, six IR emitter outputs and a DC power input. It is used to receive IR remote control commands and emitter the signals to the IR inputs of audio/video components.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Dimensions | 82W x 60H x 27D mm |
| IR Confirmation LED | Yes |
| Power LED | Yes |
| Status Confirmation LED | Yes |
| Detachable IR Receiver | Yes |
| CFL Friendly | Yes |
| Connector(s) | |
| Emitter Output | 6 - Port |
| IR Receiver Input | 1 - 3.5mm Female |
| IR Receiver Input | 1 - Set of Four Screw Down Terminals |
| Performance | |
| IR Frequency Range | 30 KHz to 60 KHz |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.7 lbs [0.3kg] |
| Contents | |
| Included in Package | 1 - 6 Port Active IR Connecting Block 1 - 12VDC Power Supply 1 - Pair of Screws 1 - Installation Manual |
