Description

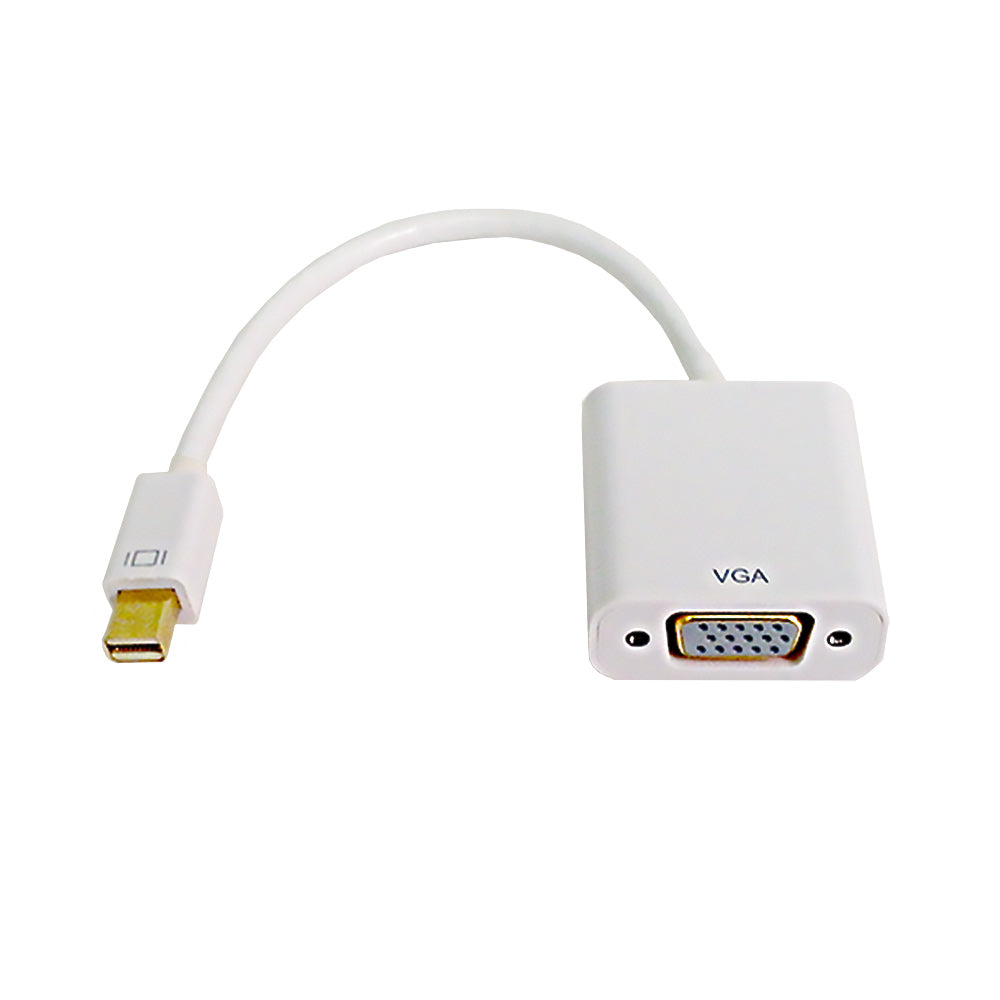

This adapter consists of a Mini-DisplayPort/Thunderbolt v1.2 male on one end and a VGA female on the other. It is primarily used to connect a Mini-DisplayPort to an analog VGA display.
| Physical Characteristics | |
|---|---|
| Cable Length | 6 inches |
| Color | White |
| Connector Plating | Nickel |
| Operating Temperature | 0℃ to +70℃ |
| Storage Temperature | -10℃ to +80℃ |
| Connectors | |
| Connector A | Mini-Display/Thunderbolt Port Male v1.2 |
| Connector B | VGA Female |
| Performance | |
| Resolution | 1080p, 1920x1200 |
| Version | 1.2 |
| Power Consumption | Active 400mW, standby mode 12mW |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.10 lbs [0.05 kg] |
