Overview

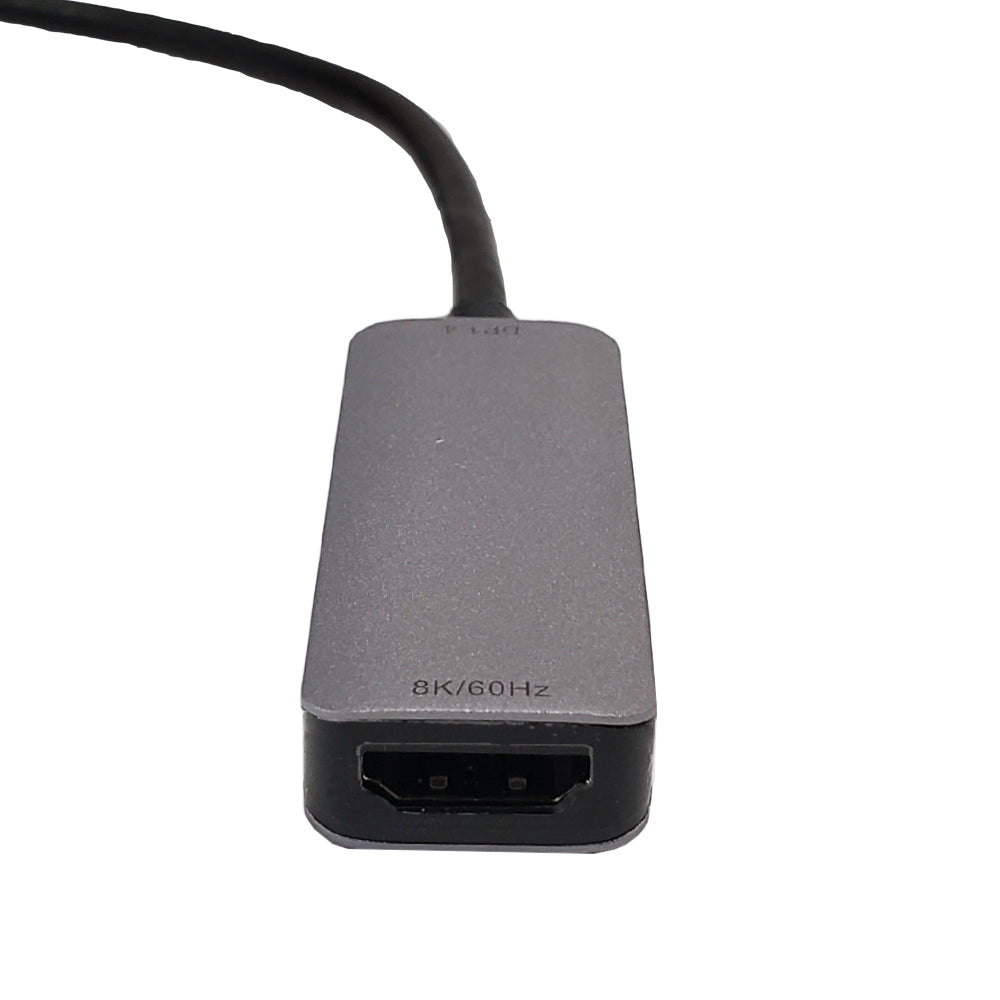

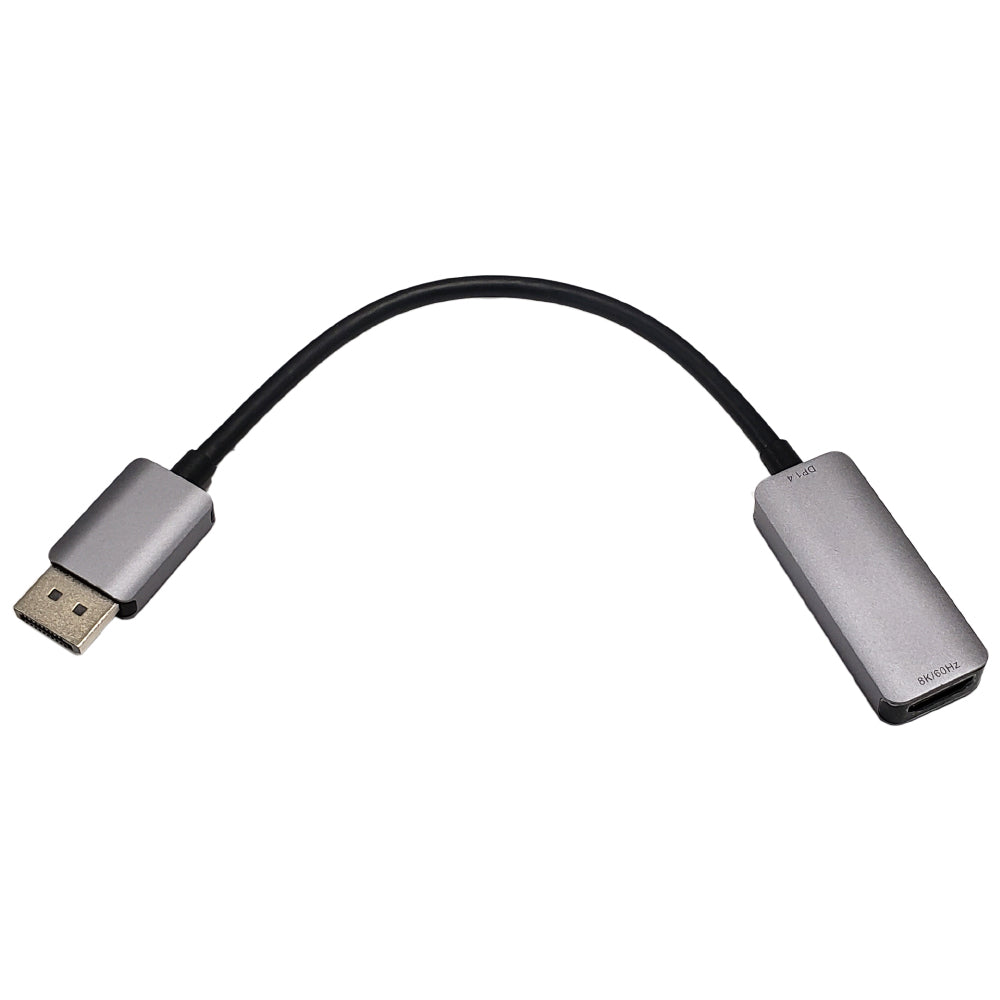

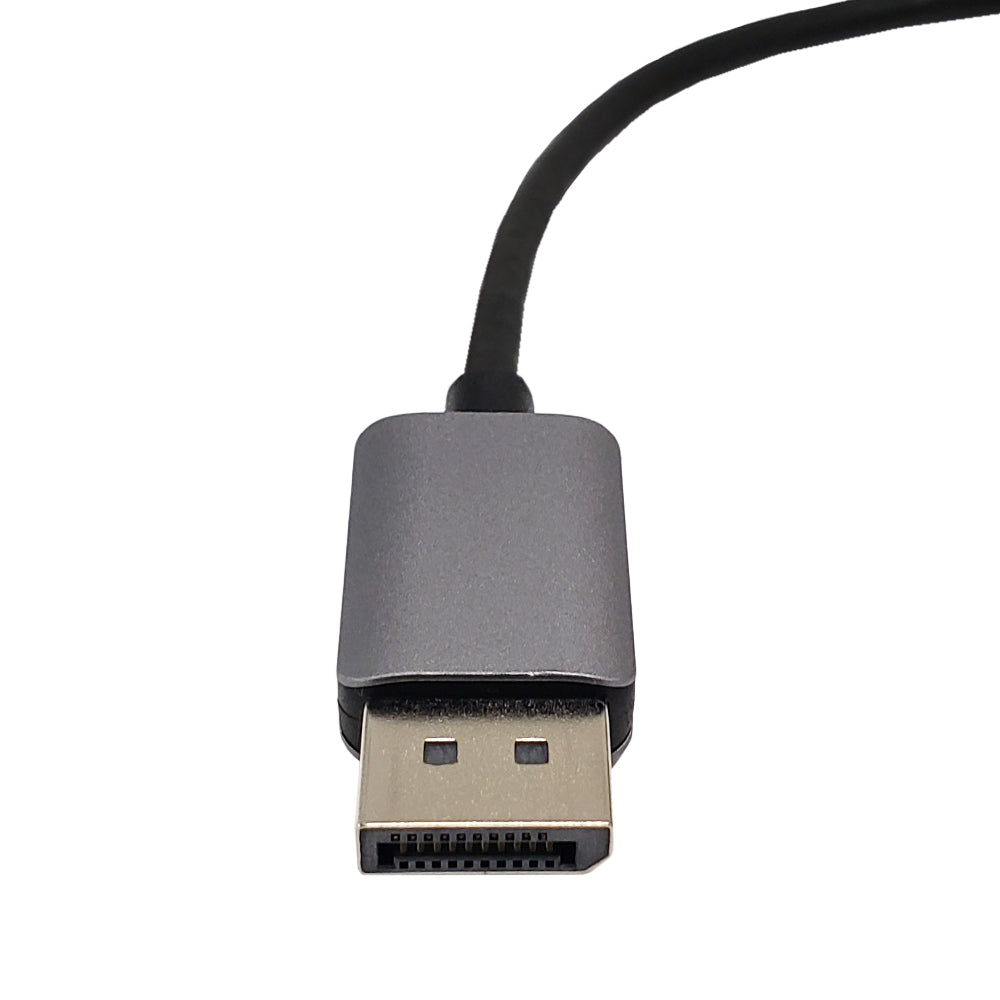

This adapter consists of a DisplayPort v1.4 male on one end and a HDMI female on the other. It is used to connect a DisplayPort source to an analog HDMI display. It does not work from a HDMI source to a DisplayPort monitor.
|
|
Ultra High-Definition ResolutionThis adapter supports video resolutions up to Ultra HD 8K @ 60Hz. Supports Multiple Color FormatsThis adapter supports a variety of color formats - including RGB and YCbCr4:4:4, YCbCr4:2:2, 8/10/12-bit per component. Used in Common InstancesThis adapter can be used in common instances - for example, connecting your PC to a TV. It can be used in settings such as data control centers, conference rooms, schools and corporate training environments. |
Application
Specifications
| Physical Characteristics | |
|---|---|
| Connector A | DisplayPort Male v1.4 |
| Connector B | HDMI Female |
| Performance | |
| Resolution | 8K@60Hz |
| Supported Application | DisplayPort input and HDMI output |
| DisplayPort Features | Supports DP1.4 Supports DSC1.1/1.2a or uncompressed video Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 |
| HDMI Features | Supports Dynamic HDR10+ Supports HDCP1.4 and HDCP2.3 specification Supports HPD Supports DSC 1.1/1.2a decoder Supports 8/10/12 bit color depth output Supports pixel format RGB/YCbCr4:4:4/YCbCr4:2:2/YCbCr4:2:0 Supports 1 to 32 channels LPCM 192kHz audio output Supports HBR audio up to 1536kHz |
| Approvals | |
| FCC | Compliant |
| CE | Compliant |
| Environmental | |
| RoHS | Compliant |
| Reach | Compliant |
| Conflict Minerals | Compliant |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.50 lbs [0.23 kg] |
3-YEAR WARRANTY
Infinite Cables Inc. offers a 3-year warranty on this product to be free from defects in material and workmanship.
This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.
Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
