Description

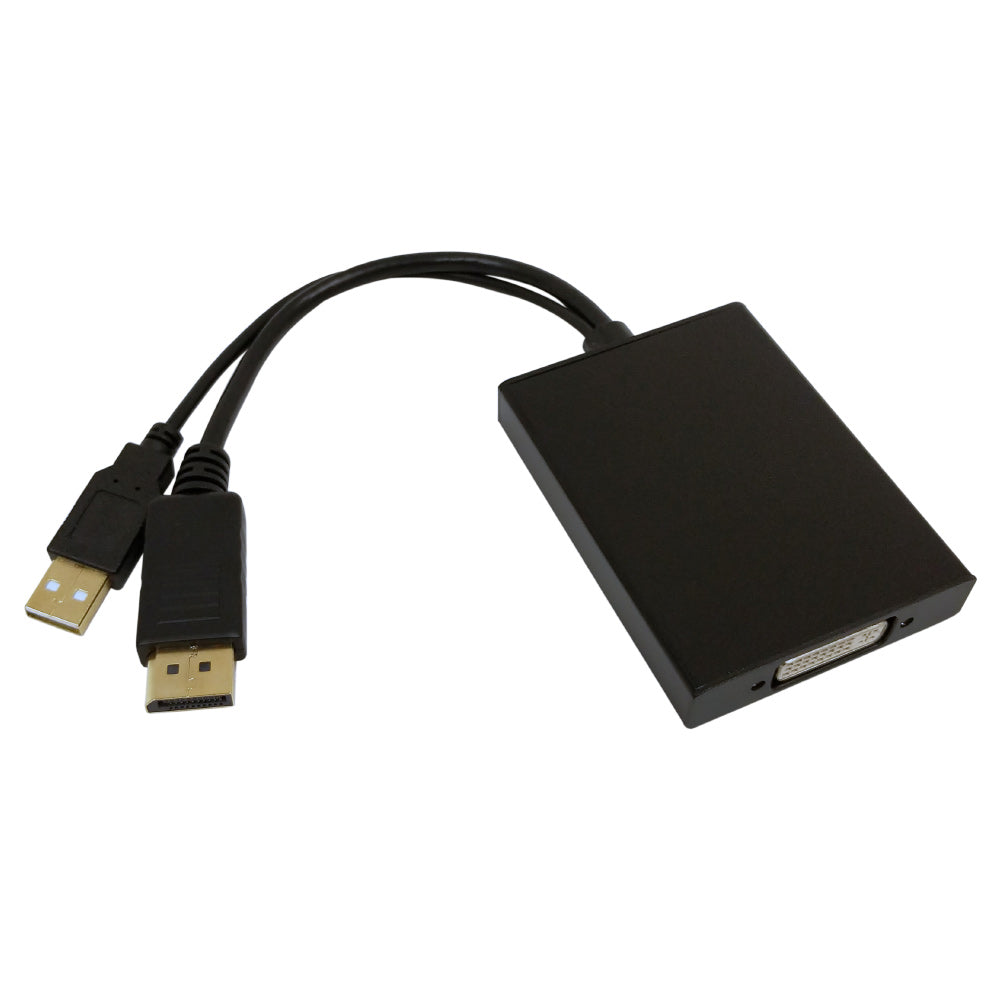

This adapter consists of a DisplayPort male on one end and a dual-link DVI female on the other. It is primarily used to connect a DisplayPort source such as PC/laptop to a DVI-D display such as; CRT, LCD monitors and projectors.
Application
| Physical Characteristics | |
|---|---|
| Length | 6 inches |
| Color | Black |
| Connector Plating | Gold |
| Operating Temperature |
0℃ to +45℃ |
| Operating Humidity |
10%to 85 % RH (no condensation) |
| Storage Temperature |
-10℃ to +80℃ |
| Storage Humidity |
5%to 90 % RH (no condensation) |
| Connectors | |

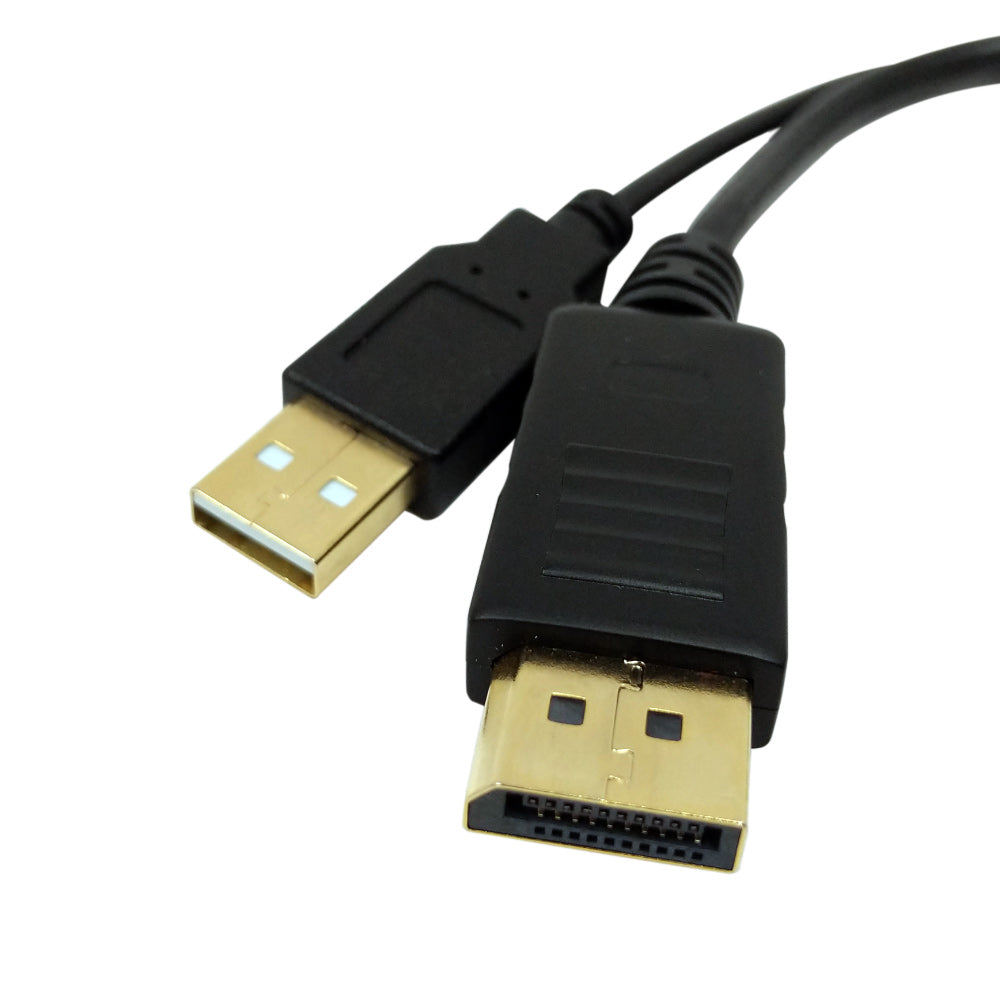

| Connector A | DisplayPort Male + USB Male (power) |
| Connector B | Dual-Link DVI-D Female |
| Performance | |
| Dual-Link Resolution (Max) | 2560 x 1600 |
| Single-Link Resolution (Max) |
1920 x 1080 |
| Supports | Deep Color 12bit |
| Supports | 268.5/348.5 MHz Bandwidth |
| DP Version | 1.1a |
| Frequency Range | 50/60Hz |
| Power Requirement | No external power needed |
| Power consumption (Max) |
3W |
| Approvals | |
| CE | Yes |
| FCC | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Conflict Minerals | Yes |
| Packaging Information | |
| Packaging Quantity | 1 |
| Product Weight | 0.10 lbs [0.05 kg] |
