Description

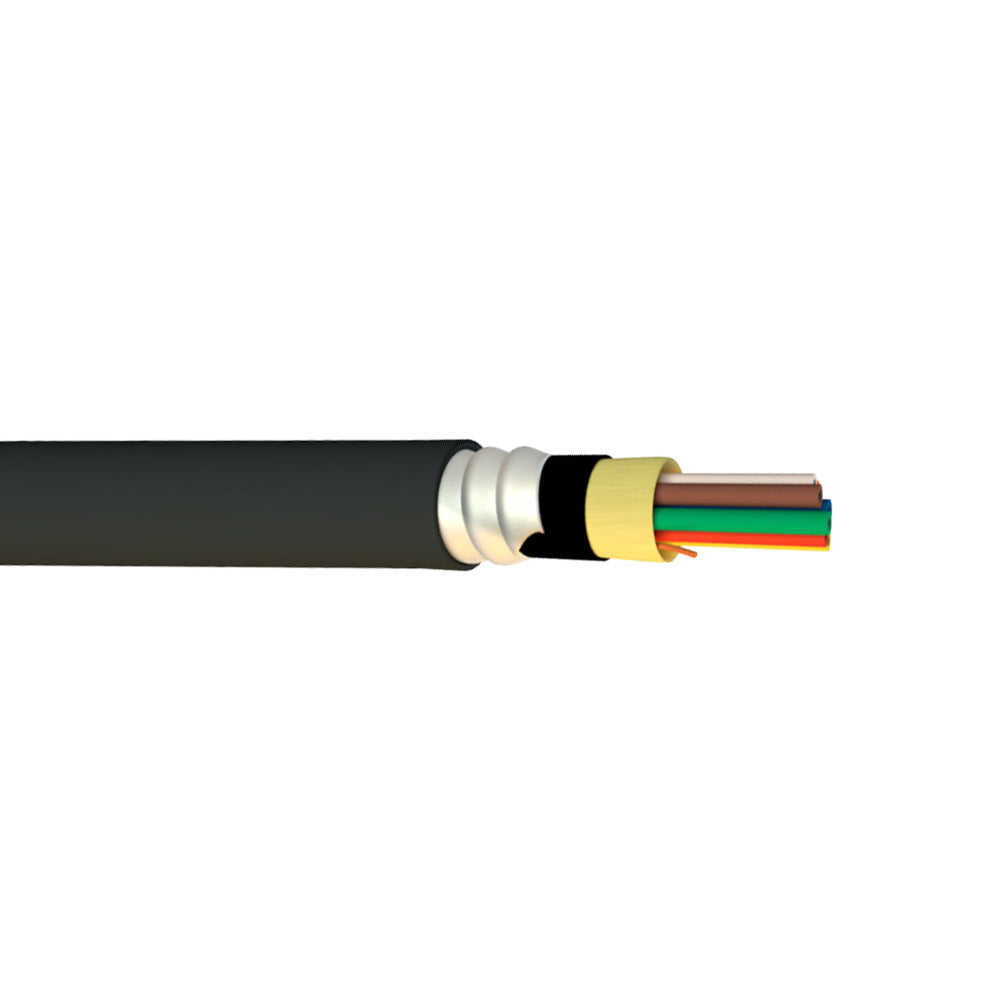

This bulk 6-strand OS2 armored fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's aluminum interlocking armor provides the best balance of ruggedness, flexibility, and low weight. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection and water-blocking elements for outdoor applications.
Features
- Cables are water blocked and meet water penetration requirements of GR-20-CORE
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use
- Tested to meet or exceed EIA/TIA 568-A/GR-409-CORE and ICEA-S-104-696
- ITU-T G.652.D compliant and fully backwards compatible.
- Exceeds the ITU-T Recommendation G.657.A1 standard.
- Approved for use in mining applications
- RoHS/REACH Compliant
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Fiber Optic Type | OS2 9 micron Singlemode Plenum Indoor/Outdoor Armored Tight Buffered Cable |
| Fiber Count | 6-Strand |
| Glass Fiber | Corning SMF-28 Ultra |
| Armorer |
Aluminum Interlocking Armor |
| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 0.56 inch (14.3mm) |
| Tension (Installation) | 300 lbs (1335 N) |
| Tension (Long Term) | 90 lbs (396 N) |
| Bending Radius (Installation) | 7.8 inch (199.5mm) |
| Bending Radius (Long Term) | 8.4 inch (214.5mm) |
| Installation Temperature | -10ÂșC to +70ÂșC |
| Operating Temperature | -40ÂșC to +70ÂșC |
| Storage Temperature | -40ÂșC to +70ÂșC |
| Attenuation Range |
@1300nm 0.5dB/km |
| Gigabit Ethernet Min. Link Distance | @1300nm = 5000 meters |
| 10 Gigabit Ethernet Min. Link Distance | @1300nm = 10000 meters |
| Fire Rating | OFCP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
| Water-Blocking | Yes |
|
Certification(s)
|
|
| ETL | Yes |
| c(ETL) | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Country of Origin | USA |
