Description

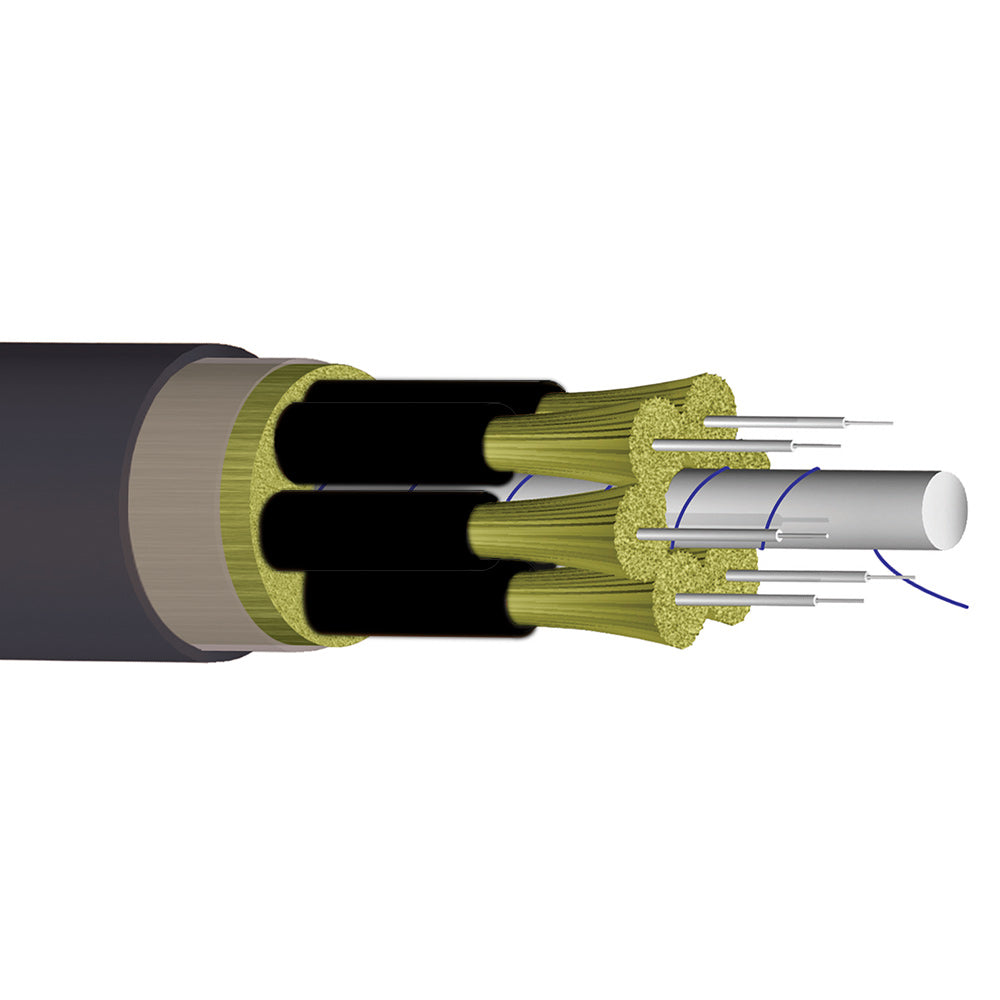

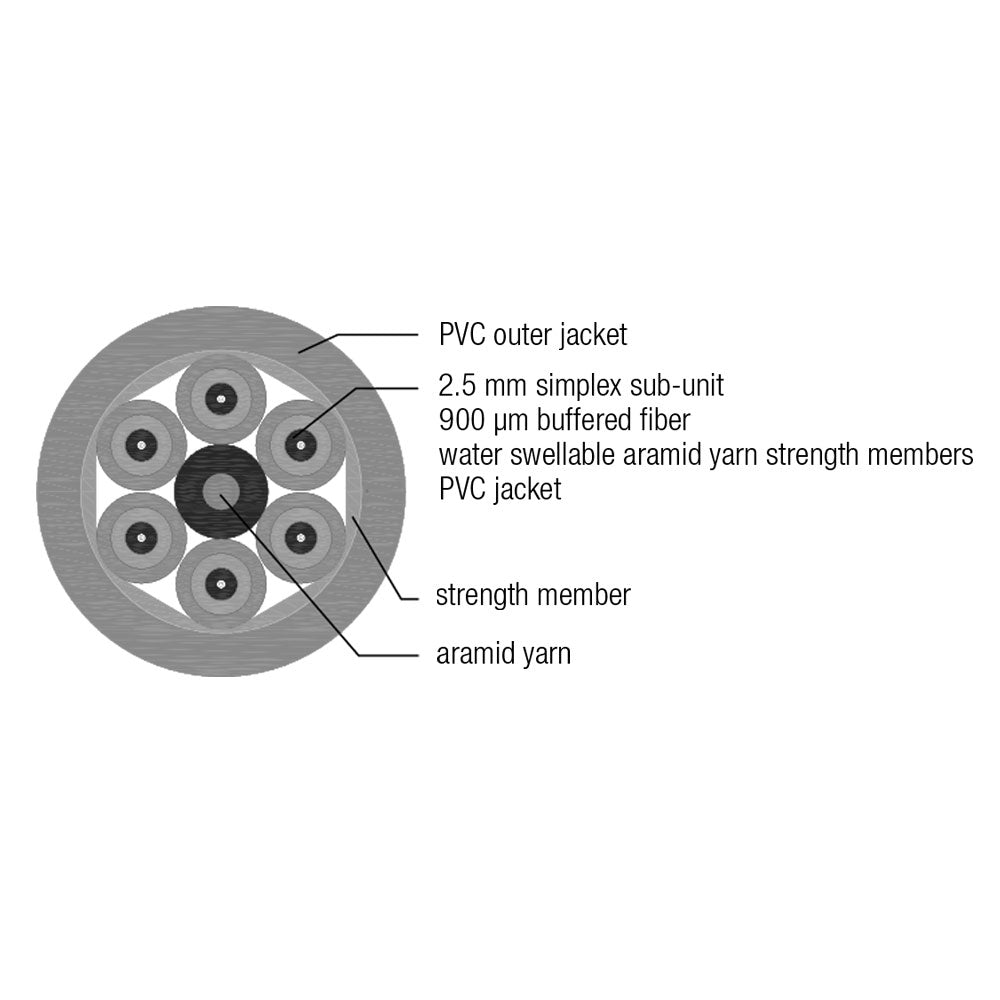

This bulk 6-strand OM2 ruggedized fiber cable is indoor/outdoor riser rated and has a tight buffer construction. It is OFNR rated for riser and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications. Ideal for harsh environments such as mining and industrial locations.
Features
- Fungus, water and UV-resistant PVC jacket featuring SP extrusion technology.
- UL 1666 riser-rated with water-blocked sub-units.
- Approved for harsh and campus environment, as well as mining and industrial applications.
- Tested to meet or exceed GR-409-CORE and ICEA-S-104-696.
- RoHS/REACH Compliant.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OM2 50 micron Multimode Riser Indoor/Outdoor Ruggedized Breakout Cable |
| Fiber Count | 6-Strand |
| Glass Fiber | Corning ClearCurve |
| Micron Legs | 3mm |
| Nominal Diameter | 11.4mm |
| Tension(Installation) | 450 lbs |
| Tension(Long Term) | 120 lbs |
| Bending Radius(Installation) | 17.3cm |
| Bending Radius(Long Term) | 11.4cm |
| Operating Temperature | -40℃ ~ +70℃ |
| Storage Temperature | -40℃ ~ +70℃ |
| Installation | -20℃ ~ +70℃ |
| Attenuation Range | @850nm 3.5dB/km @1300nm 1.5dB/km |
| Bandwidth Range | @850nm > 500 MHz/km @1300nm > 500 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 600 1300nm = 600 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 82 |
| Applications | Harsh Environment, Mining, Industrial, Campus Environment |
| Fire Rating | OFNR |
| MSHA | Compliant |
| UV Stabilizer | Compliant |
| Anti-Fungus Protection | Compliant |
| Enhanced Performance | |
| Weathering | 720 hours |
| Low/High Temp Bend | -20℃ ~ 70℃ |
| Cyclic Flex | 2000 cycles |
| Impact | 1500 impacts |
| Cold Impact | -10℃ |
| Crush Resistance | 2200 N/cm |
| Certification(s) | |
| ETL | Compliant |
| c(ETL) | Compliant |
| Product Support | |
| RoHS | Compliant |
| Country of Origin | USA |
Spec Sheets
Lead-time
This item is custom cut to length.
The cable required is in stock and custom cuts typically ship out within 1-2 business days.
For the lead-time on a larger quantity orders, please contact us via phone at 1-866-207-6442 or email at sales@infinitecables.com. One of our sales reps will be able to provide an accurate lead-time
