Overview

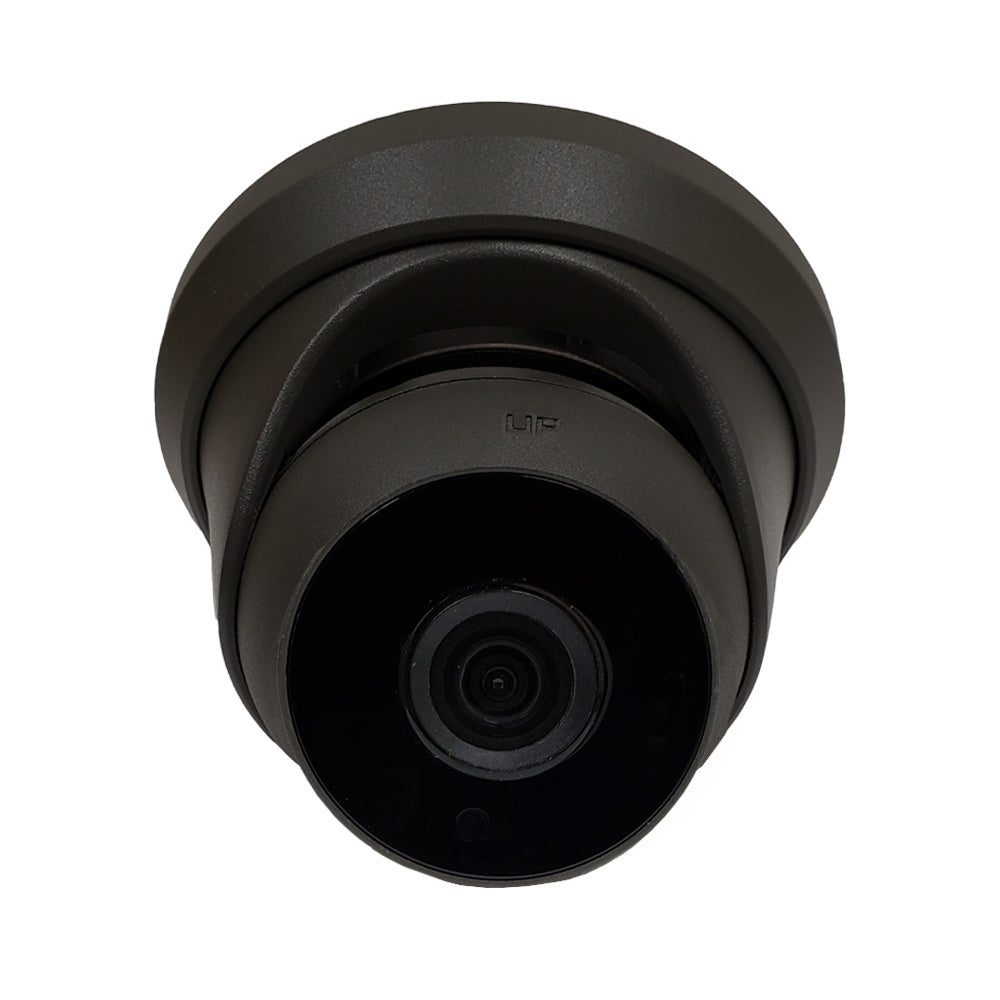

This 5MP outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 85.5° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.
Features
- 5MP High Performance CMOS Sensor
- EXIR 2.0
- 40m IR
- Outdoor EXIR Turret
- 0.01 Lux/F1.2
- 12 VDC
- Smart IR
- 2D DNR
- OSD Menu (Up the Coax)
- DWDR
- IP67
- 2.8mm Lens
Specifications
| Camera | |
|---|---|
| Image Sensor | 5.0 MP CMOS image sensor |
| Signal System | PAL/NTSC |
| Frame Rate | PAL: 5 MP@20fps, 4MP@25fps, 1080p@25fps NTSC: 5MP@20fps, 4MP@30fps, 1080p@30fps |
| Resolution | 2560 (H) x 1944 (V) |
| Minimum Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Shutter Time | PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s |
| Lens | 2.8 mm fixed focal lens 3.6 mm fixed focal lens |
| Horizontal Field of View |
85.5° 80.1° |
| Lens Mount | M12 |
| Day and Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Synchronization | Internal synchronization |
| Menu | |
| AGC | Supported |
| Day and Night Mode | Auto/Color/BW (Black and White) |
| White Balance | ATW/MWB |
| Backlight Compensation | Supported |
| Digital Wide Dynamic Range | Supported |
| Language | English |
| Functions | Brightness, Sharpness, DNR, Mirror, Smart IR |
| Interface | |

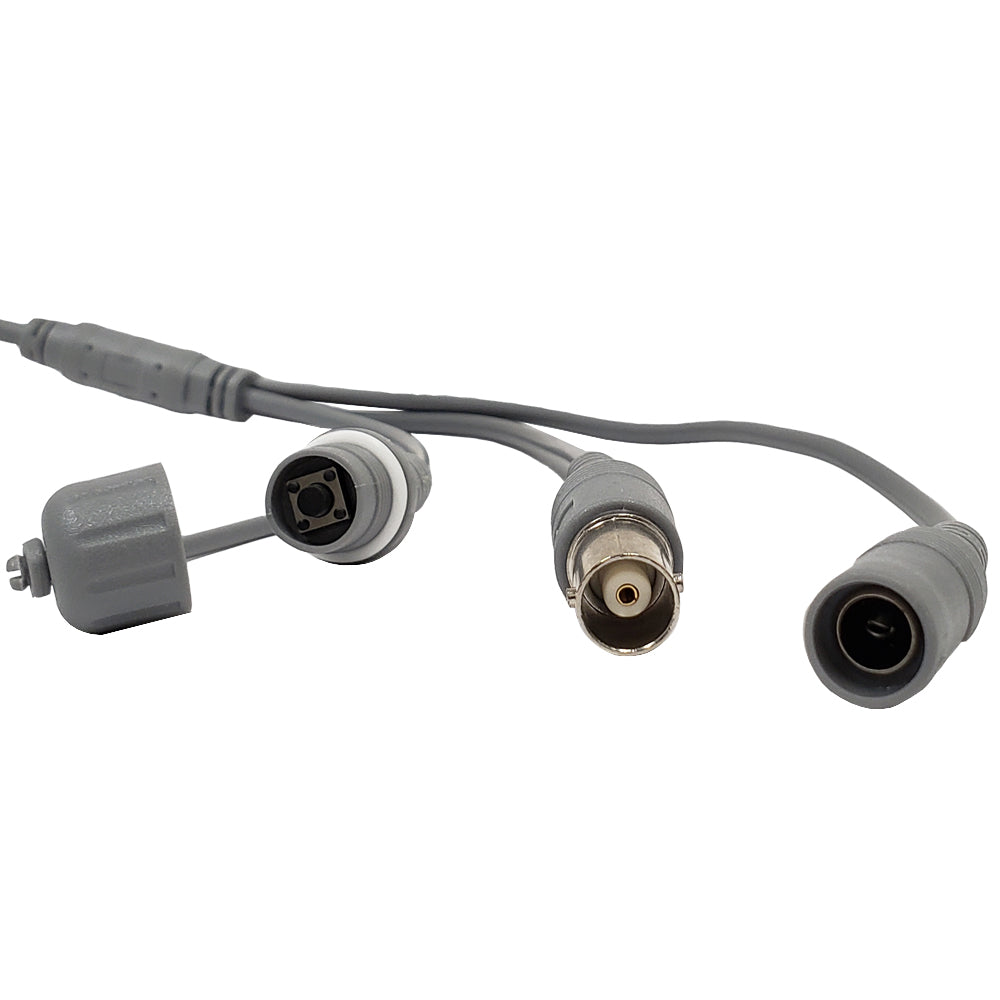

| Video Output | 1 HD analog output |
| Switch Button | TVI/AHD/CVI/CVBS |
| General | |
| Operating Conditions | -40° F to 140° F (-40° C to 60° C), humidity: 90% or less (non-condensation) |
| Power Supply | 12 VDC ± 25% |
| Power Consumption | Maximum 4.3 W |
| Ingress Protection | IP67 |
| Material | Enclosure: Plastic Main Body: Metal |
| IR Range | Up to 130 ft (40 m) |
| Communication | Up the coax, Protocol: UTC-C (TVI output) |
| Dimensions | ⌀ 4.33" x 3.67" (⌀ 110 mm x 93.2 mm) |
| Weight | Approximately 0.77 lbs (350 g) |
| Approvals | |
| c(UL)us | Yes |
| CE | Yes |
| FCC | Yes |
| ONVIF | Yes |
Compatible Baluns
Compatible DC Power Supplies
Compatible DC Power Connectors
| CN-DCM-S | DC Power Connector Male 2.1mm x 5.5mm Screw Down |
| CN-DCM | DC Power Connector Male 2.1mm x 5.5mm Plastic Shell |
| CN-DCM-8IN | DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG) |
Compatible BNC Connectors
| CN-CBNCM-59-10 | BNC Male Compression Connector for RG59 - Pack of 10 |
| CN-CBNCM-59-10PL | BNC Male Compression Connector for RG59 Plenum - Pack of 10 |
| CN-30-734A | BNC Male Crimp Connector for RG59 (734A) |
| CN-30-S | BNC Male Screw Down Connector, 75 Ohm |
| CN-TBNC-59 | BNC Male Twist-On Connector for RG59 |
