Description

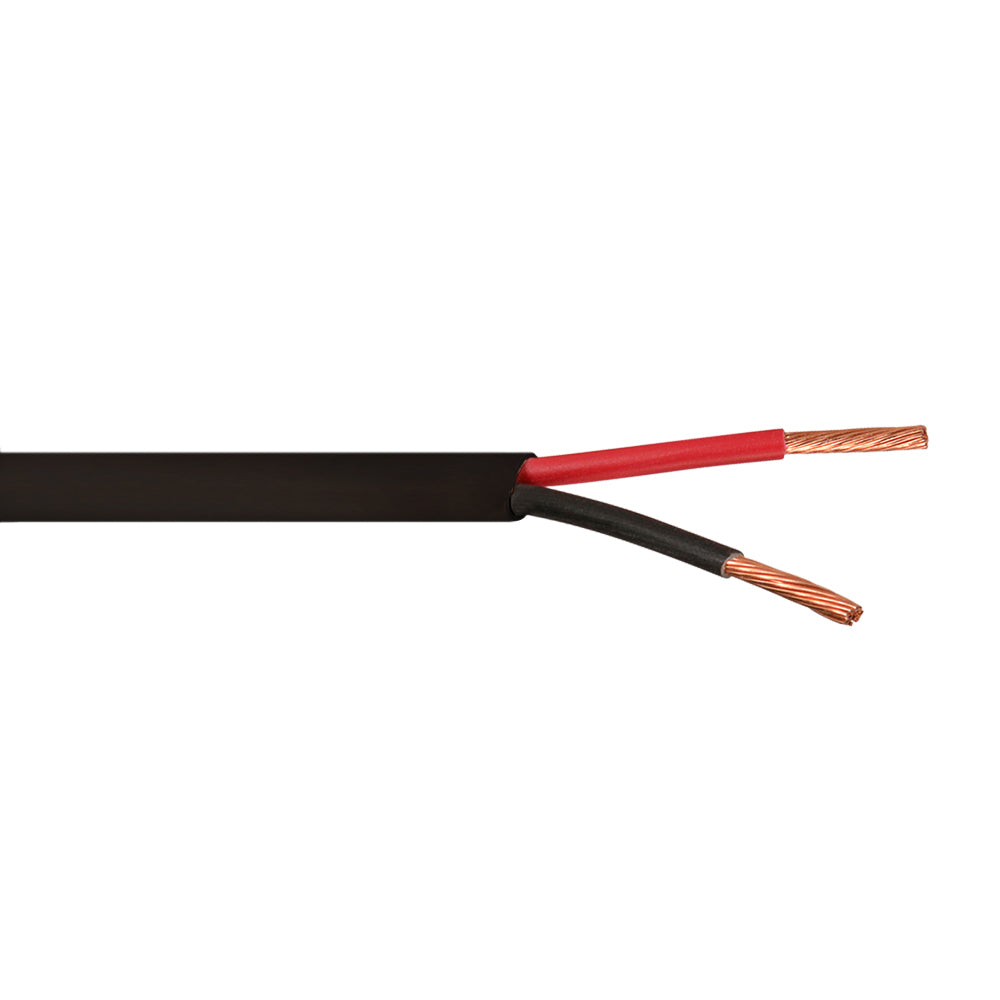

This bulk outdoor speaker cable is made from multi-stranded copper cable to capture all highs & lows for optimum audio performance. It is typically run outdoors and used to connect speakers to amplifiers.
| Physical Characteristics | |
|---|---|
| Cable Length | 500 foot [152.4m] |
| Color | Black |
| Temperature Rating | -20℃ ~ 75℃ |
| Cable Diameter | 5.80±0.10mm |
| Number of Conductors | 2 Conductor |
| Wire Gauge | 16AWG |
| Conductor Material | 100% Bare Copper (Oxygen Free) |
| Stranding Count & Diameter | 65/0.16mm ± 0.004 |
| Assembly Diameter | 4.10±0.20 |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | Outdoor |
| Jacket Average Thickness |
0.80mm |
| Jacket Minimum Thickness |
0.72mm |
| Insulation Average Thickness |
0.310mm |
| Insulation Minimum Thickness |
0.280mm |
| Insulation Diameter | 2.10±0.05 |
| Ripcord | Nylon |
| Cable Shielding | None |
| Max Voltage Rating |
300V |
| Flammability Test | CMX |
| Capacitance | < 9.8nF/100M |
| Resistance | 70+/-10 OHM |
| Conductor Resistance | Max 15.5ohm/km at 20℃ |
| Insulator Resistance | Min 50MΩ km at 20℃ |
| Mechanical Characteristics | |
| Before Aging | Tensile Strength (Mpa): >=13.8 Elongation (%): >=100 |
| Aging Condition (deg C x hrs) | 100x168 |
| After Aging | Tensile Strength (Mpa): >=85% of unaged Elongation (%): >=50% of unaged |
| Approvals | |
| ETL, c(ETL) | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 19.9 lbs |
