Description

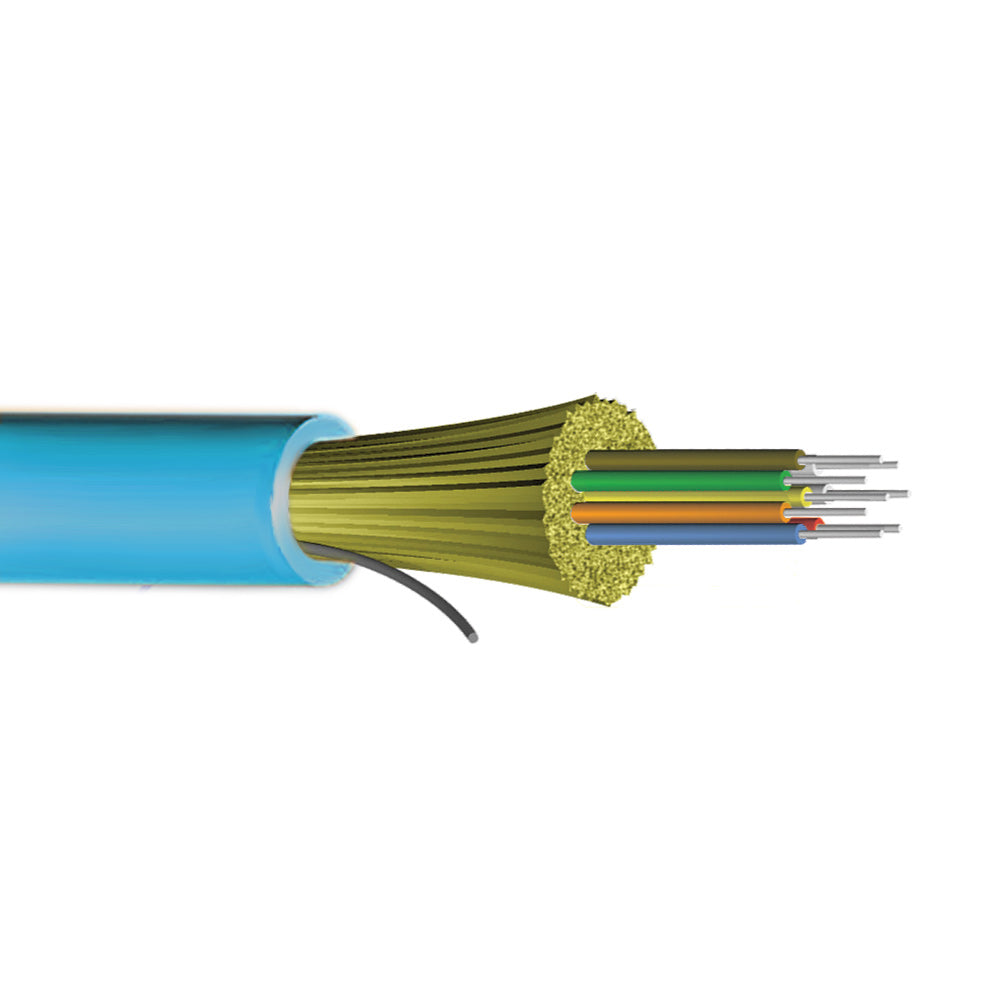

This bulk OM4 fiber cable is indoor/outdoor plenum rated and has a tight buffer construction. It is OFNP rated for plenum and general inside plant environments. It also has a UV stabilizer for protection against exposure to the sun plus an anti-fungus protection for use in underground applications.
Features
- Cables are water blocked and exceed water penetration requirements of ICEA S-104-696and GR-20-CORE.
- Outer jacket is moisture-resistant, fungus-resistant and UV resistant for outdoor use.
- With an overall OFNP (Plenum) rating, this cable is suitable for installations inmost spaces requiring UL flame ratings: Plenum, Riser, General Purpose and outside plant.
- Tested to meet or exceed EIA/TIA 568 / GR-409-CORE and ICEA-S-104-696.
- RoHS/REACH Compliant
|
Physical Characteristics
|
|
|---|---|
| Color | Aqua |
| Fiber Optic Type | OM4 50µ Multimode Plenum Indoor/Outdoor Tight Buffered Cable |
| Fiber Count | 12-Strand |

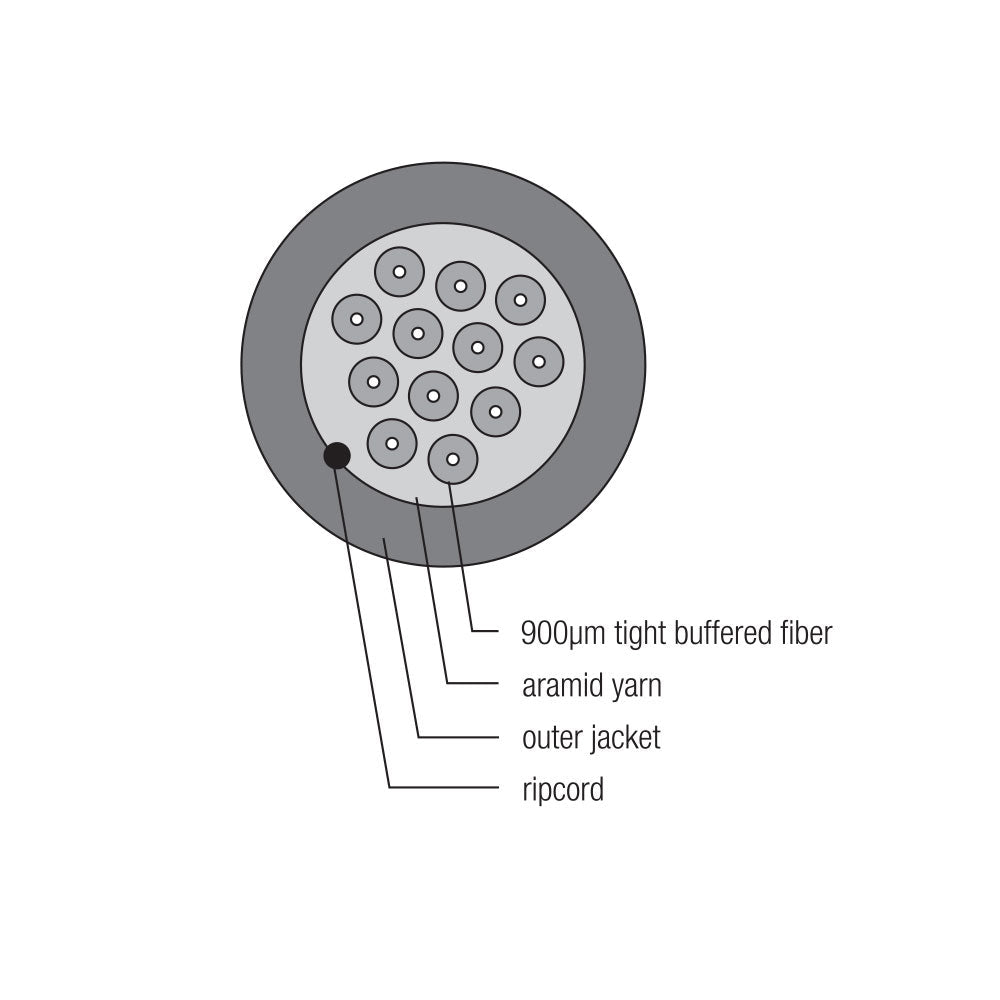

| Sub Unit Diameter | 900 Micron |
| Nominal Diameter | 7.0mm |
| Tension(Installation) | 300 lbs |
| Tension(Long Term) | 90 lbs |
| Bending Radius(Installation) | 10.5cm |
| Bending Radius(Long Term) | 7.0cm |
| Operating Temperature | -40°C ~ +70°C |
| Storage Temperature | -40°C ~ +70°C |
| Installation | -10°C ~ +70°C |
| Attenuation Range | @850nm 3.0dB/km @1300nm 1.2dB/km |
| Bandwidth Range | @850nm > 3500 MHz/km @1300nm > 550 MHz/km |
| Gigabit Ethernet Min. Link Distance | 850nm = 1040 1300nm = 540 |
| 10 Gigabit Ethernet Min. Link Distance | 850nm = 550 |
| Fire Rating | OFNP |
| UV Stabilizer | Yes |
| Anti-Fungus Protection | Yes |
|
Certification(s)
|
|
| ETL | Yes |
| c(ETL) | Yes |
|
Product Support
|
|
| RoHS | Yes |
| Country of Origin | USA |
|
Manufacturing Information
|
|
| Manufacturer | AFL |
