Description

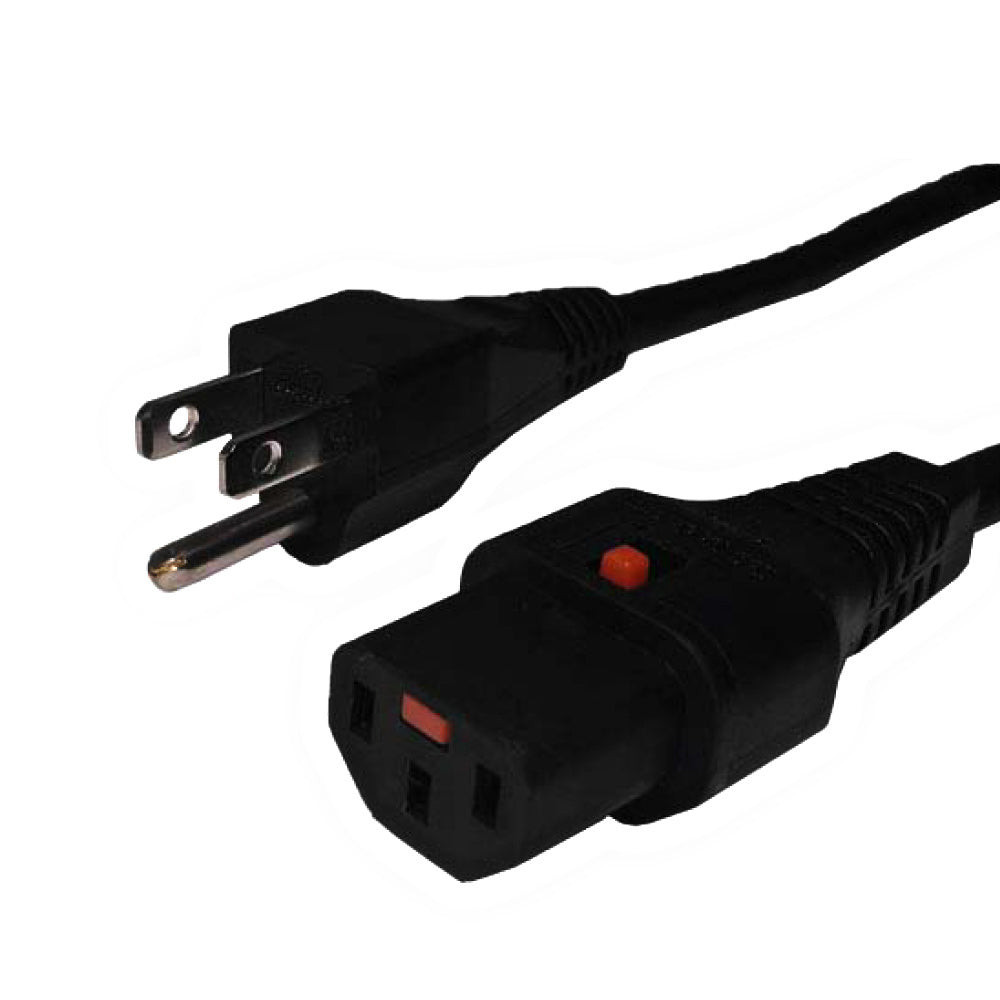

This power cord consists of a 5-15P male on one end and a locking C13 female on the other end. It is typically used to connect a server or UPS to a PDU or a wall outlet. The unique lockable C13 female connectors can be used with any standard IEC inlet and guards against accidental disconnection of computers, PDU's, servers and most network devices.
Physical Characteristics | |
|---|---|
| Color | Black |
| Number of Conductors | 3 Conductor |
| Wire Gauge | 18AWG |
| Jacket | Heavy Duty SJT |
| Jacket Fire Rating | FT2 |
| Strain Relief | Molded PVC |
| Temperature Rating | -20 deg C to 105 deg C |
Connector(s) | |
| Connector A | IEC 60320 Locking C13 - c(UL)us |
| Connector B | NEMA 5-15P - c(UL)us |
Performance | |
| Power Rating | 10 Amp / 250 Volt |
Approvals | |
| c(UL)us | Yes |
| ISO | ISO 9001:2008 |
Environmental | |
| RoHS | Yes |
| Conflict Minerals | Yes |
Packaging Information | |
| Package Quantity | 1 |
Warranty Information | |
| Warranty | Limited Lifetime |
| 2ft | 3ft | 6ft | 10ft |
|---|---|---|---|
| 0.23 lbs | 0.29 lbs | 0.48 | 0.73 lbs |
