Description
Overview

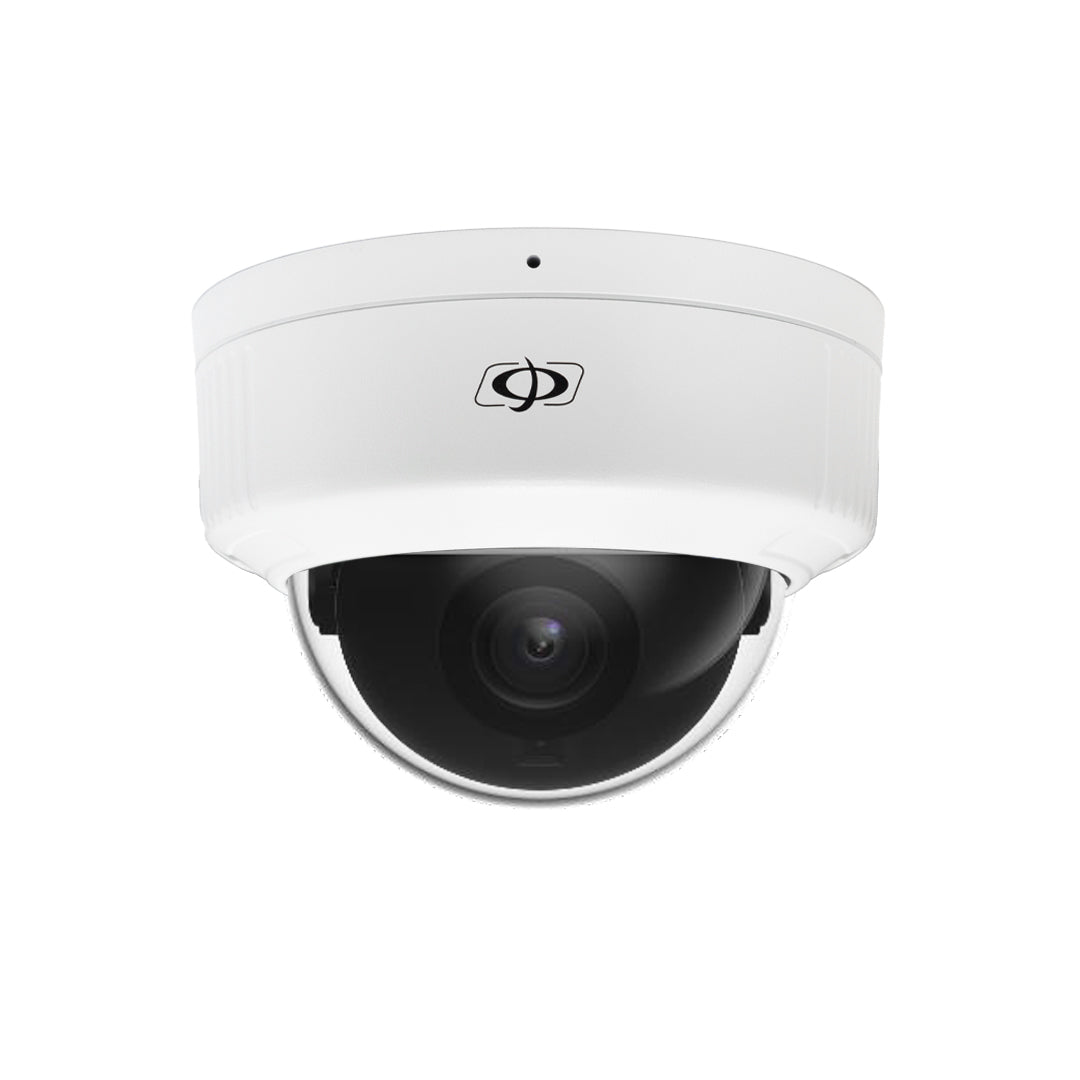

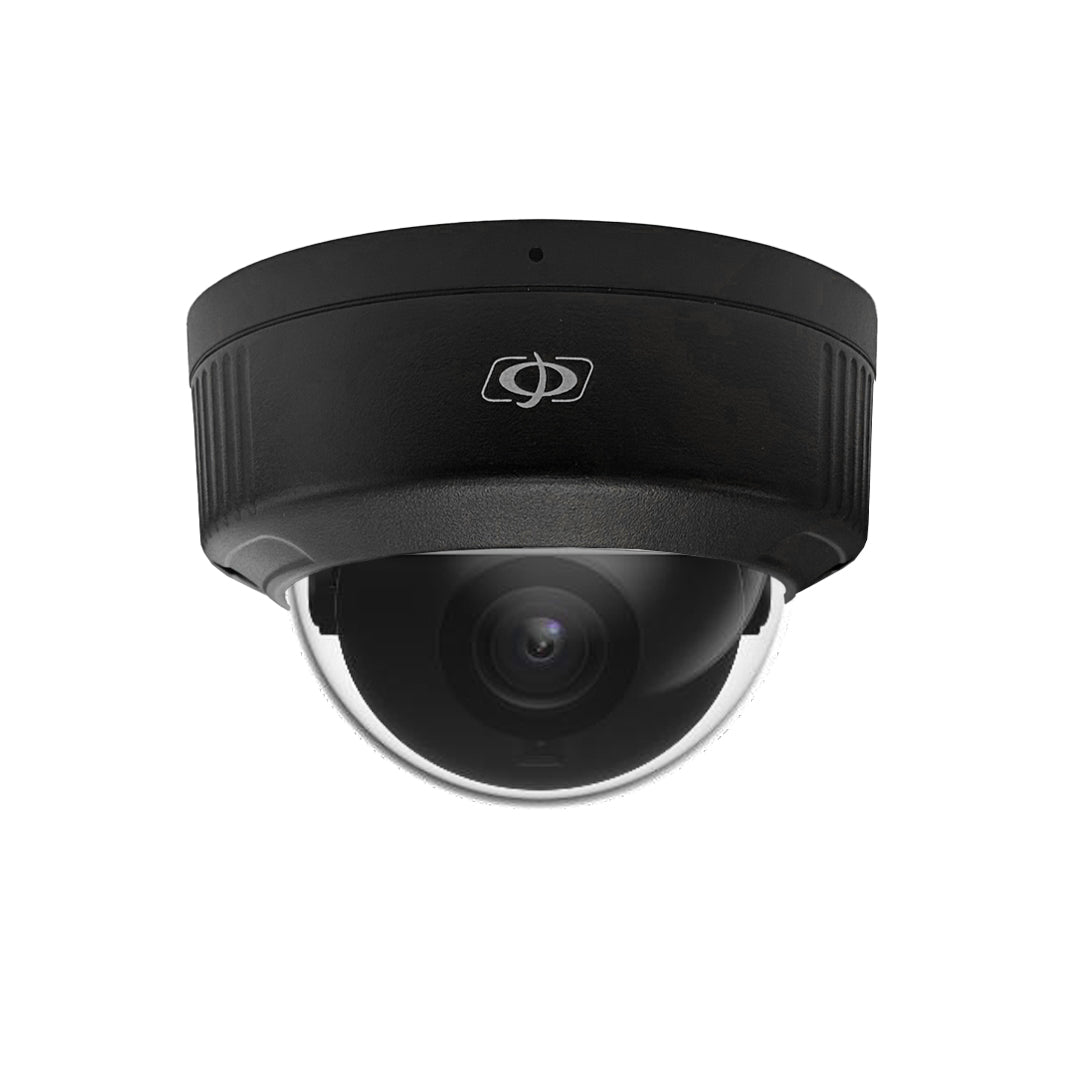

This 4MP indoor/outdoor, IP based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera is available in 2.8mm fixed lens which delivers a 105.3 ° horizontal field of view . Its maximum resolution is 2688*1520 at 25fps and supports Ultra 265 video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IK10 vandal-resistant and IP67 rated for outdoor use, and has 98 feet of night vision using an IR cut filter and IR LEDs.
 |
Features
|
 |
|
Application
The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.
NVR Setup
Specifications
|
Camera
|
|
|---|---|
| Image Sensor | 1/3" (4 MP) progressive scan CMOS |
| Minimum Illumination | Colour: 0.005Lux ( F1.6, AGC ON) 0Lux with IR |
| Day /Night | IR cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000s |
| Adjustment Angle | Pan: 0° to 360°, Tilt: 0° to 68°, Rotate: 0° to 360° |
| S/N | >52dB |
| WDR | 120dB |
|
Lens
|
|
| Lens Type | 2.8mm @F1.6, Fixed-focal |
| Angle of View (H) | 105.3° |
| Angle of View (V) | 57° |
| Angle of View (O) | 136.9° |
|
DORI
|
|
| DORI Distance | 2.8mm Lens, 63.0m Detect, 25.2m Observe, 12.6m Recognize, 6.3m Identify |
|
IR
|
|
| IR Range | Up to 30m (98ft) |
| Wavelength | 850 nm |
| IR On/Off Control | Auto/Manual |
|
Video
|
|
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Frame Rate |
Main Stream: 4MP (2688*1520), Max 25fps; 4MP (2560*1440), Max 25fps; 3MP (2304*1296), Max 30fps; 2MP (1920*1080), Max 30fps; Sub Stream: 720P (1280*720), Max 25fps |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 4 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Up to 4 areas |
| Motion Detection | Up to 4 areas |
|
|
|
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip |
Normal/Vertical/Horizontal/180° |
| Dewarping | Support |
| HLC | Supported |
| BLC | Supported |
| Defog | Digital Defog |
|
Storage
|
|
| Edge Storage | Micro SD, up to 256GB |
| Network Storage | ANR |
|
Network
|
|
| Protocols |
IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
| Client | Phantom CamStation Phantom CamView |
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ |
|
Interface
|
|
| Network | 1 * RJ45 10M/100M Base-TX Ethernet |
|
Certification
|
|
| EMC | FCC: FCC Part 15 |
| Safety | CE: EN 60950-1 UL: UL60950-1 FCC: FCC Part 15 |
| NDAA Compliant | Yes |
|
General
|
|
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
| Power |
DC 12V±25%, PoE (IEEE 802.3af) Power consumption: Max 3.5W |
| Surge Protection | 2KV |
| Vandal Resistant | IK10 |
| Ingress Protection | IP67 |
| Material |
Shield：PC Body：plastic Bottom plate：metal |

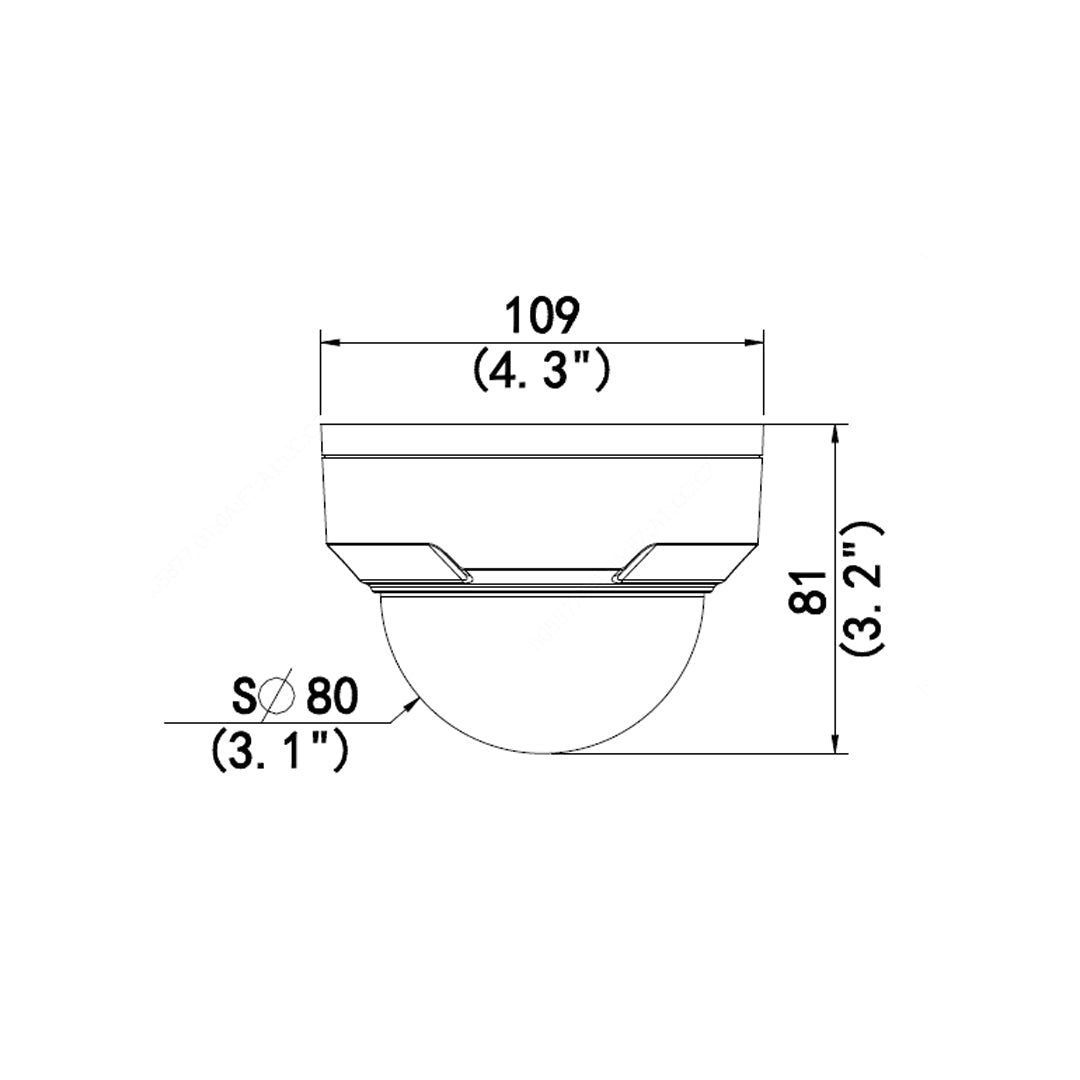

| Dimensions (Ø x H) |
Φ109 x 81mm (Ø4.3” x 3.2”) |
| Weight | 1.08 lbs [0.49kg] |
Compatible Products
Compatible Mounts
| SCD-PM06-WH |
Pole Mount Adapter for IP Turrets and Dome Cameras - White |
| SCD-JB03G |
Junction Box Mounting Bracket for IP Domes |
| SCD-WMJB03G-WH |
Wall Mounting Bracket with Junction Box for IP Domes - White |
| SCD-WM03G-WH |
Wall Mounting Bracket for IP Dome Cameras - White |
