4MP Compact Dome IP Camera - 2.8mm Fixed Lens - 2-Way Audio Communication - 10m IR Range - Outdoor IP66 Rated - White

OEM IP Cameras & RecordersSKU: CA-NC324-WDA-WH

Price:
Sale price$324.00 CAD
Stock:
In stock

Description

Overview

This 4MP indoor/outdoor, IP based compact dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 98┬░horizontal field of view. It also comes with a built in microphone and a speaker output for voice recording and 2-way communication. Its maximum resolution is 2688 x 1520 at 30 fps and supports H.265+ video compression technology, which assures savings in bandwidth and storage. The camera is IP based with integrated PoE technology which makes for a quick and easy installation over a single CAT5e/CAT6 cable. Its housing is IP66 rated for outdoor use and has 10 meters of night vision using an IR cut filter and IRLEDs.

Features

  • 1/3" Progressive Scan CMOS
  • H.265+/H.265/H.264+/H.264/MJPEG
  • Color: 0.018 Lux @ (F1.6, AGC ON), 0 lux with IR
  • 25fps/30fps(2688x1520, 1920x1080)
  • VCA functions
  • 3 streams
  • 3D DNR
  • BLC/HLC
  • ICR
  • EXIR, up to 10m
  • WDR (Wide Dynamic Range)
  • DC12V&PoE
  • Built-in micro SD/SDHC/SDXC slot supports 128 GB
  • Guarding Vision APP
  • Built-in mic, Audio/Alarm IO

Application

Specifications

Camera
Image Sensor 1/3" Progressive Scan CMOS
Minimum Illumination Color: 0.018 lux @ (f/1.6, AGC on), 0 Lux with IR
Shutter Speed 1/3 s to 1/100,000 s
Slow Shutter Yes
Auto-Iris No
Day /Night IR cut filter
Digital Noise Reduction 3D DNR
WDR 120dB
Angle Adjustment Pan: -30┬░ to +30┬░, tilt: 0┬░ to 75┬░, rotate: 0┬░ to 360┬░
Lens
Focal Length 2.8 mm fixed lens
Aperture f/1.6
Focus Manual
FOV horizontal field of view: 98┬░, vertical field of view: 55┬░, diagonal field of view: 114┬░
Lens Mount M12
IR
IR Range Up to 35 ft (10 m)
Wavelength 850 nm
Compression Standard
Video Compression Main stream: H.265+/H.265/H.264+/H.264, sub-stream: H.265+/H.265/H.264+/H.264/MJPEG, third stream: H.265+/H.265/H.264+/H.264
H.264 Type Main profile/high profile
H.264+ Main stream and sub-stream support
H.265 Type Main profile
H.265+ Main stream and sub-stream support
Video Bit Rate 256 Kbps to 16 Mbps
Audio Compression G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM
Audio Bit Rate 64 kbps (G.711)/16 kbps (G.722.1)/16 kbps (G.726)/32 to 192 kbps (MP2L2)
Smart Features
Behavior Analysis Line crossing detection, intrusion detection
Face Detection Yes
Region of Interest One fixed region for main stream and sub-stream
Maximum Resolution 2688 x 1520
Main Stream 30 fps (2688 x 1520, 2304 x 1296, 1920 x 1080)
Sub-Stream 30 fps (640 x 480, 640 x 360, 320 x 240)
Third Stream 30 fps (1280 x 720, 640 x 360, 352 x 240)
Image Enhancement BLC, 3D DNR
Image Setting Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Day/Night Switch Auto/schedule/day/night/triggered by alarm in
Network
Network Storage MicroSD/SDHC/SDXC card (128 GB), local storage, NAS (NFS,SMB/CIFS), and ANR
Alarm Trigger Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6
General Function One-key reset, anti-flicker, 5 streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, and IP address filtering
API ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View Up to 6 channels
User / Host Up to 32 users. 3 user levels: administrator, operator and user
Client iVMS-4200, Hik-Connect
Web Browser IE 8+, Chrome 31.0 to 44, Firefox 30.0 to 51, Safari 8.0+

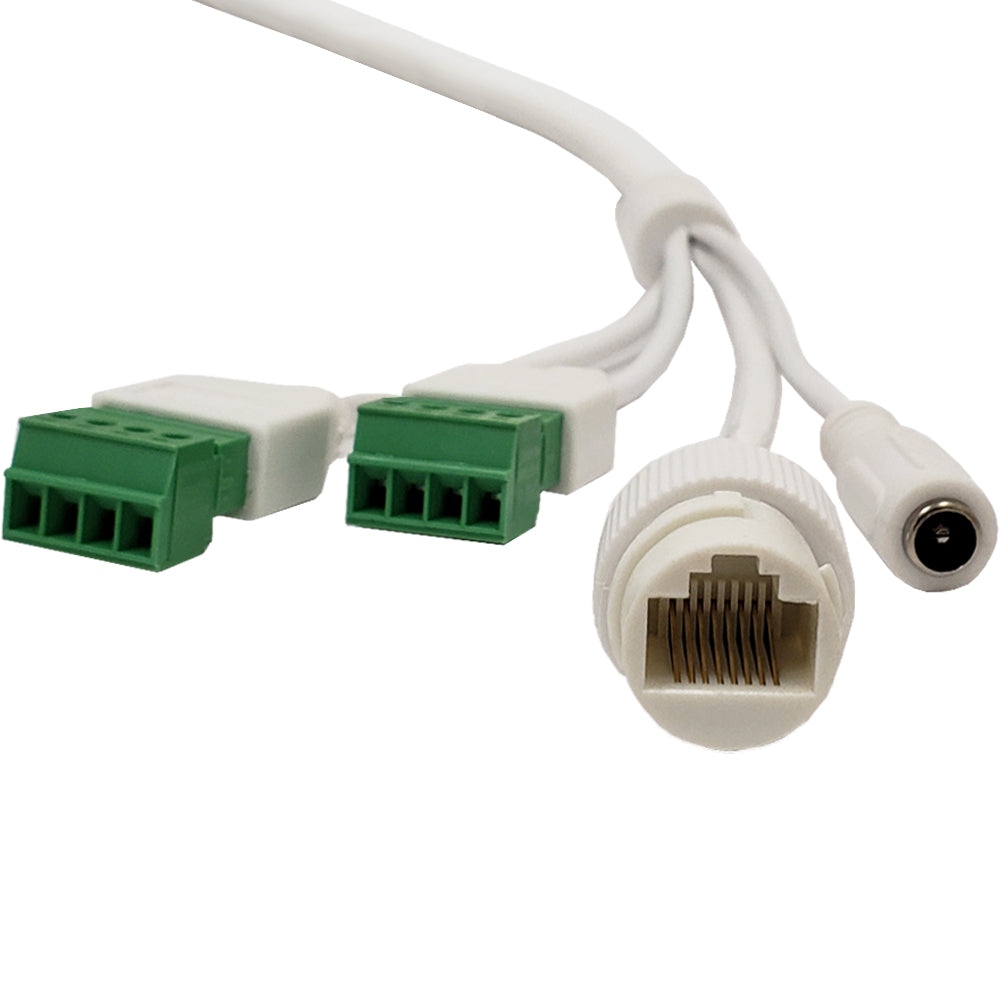

Interface
Audio 2 inputs: line in (3.5 mm) or mic in (built-in microphone), 1 output: line out (3.5 mm), mono sound
Alarm 1 Input: alarm in (3.5mm), 1 output: alarm out (3.5mm)
Communication Interface 1-port RJ-45 10M/100M self-adaptive Ethernet port
On-board storage Built-in microSD/SDHC/SDXC slot, up to 128 GB
SVC H.264 and H.265 encoding
Audio
Environment Noise Filtering Yes
Audio Sampling Rate 16 kHz, 32kHz, 44.1kHz, 48kHz
General
Operating Conditions -22┬░ F to 140┬░ F (-30┬░ C to 60┬░ C); humidity 95% or less (non-condensing)
Power Supply 12 VDC ┬▒ 25%, N 5.5 mm coaxial power plug, PoE (802.3af, class 3)
Power Consumption and Current 12 VDC, 0.7 A, maximum 8.5 W; PoE (802.3aft, 36 V to 57 V), 0.3 A to 0.1 A, maximum 10 W
Protection Level IK08, IP66
Material Front cover: plastic, bottom base: metal
Dimensions ├ś 4.3" x 2.2" (├ś 110 mm x 56.4 mm)
Weight 0.90 lbs (0.40 kg)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Quick Start Guide
Data Sheet
RJ45 pin out diagram


Web Portal Remote Access
Register/login with your Guarding Vision account for access to all devices in your account remotely from the browser. Supports Internet Explorer 8+, Chrome 41.0 to 44, Firefox 30.0 to 51 and Safari 8.0 to 11

Guarding vision Android app
Supports Android 4.1 and up

Guarding vision iOS app
Supports iOS 8.0 or later. Compatible with iPhone, iPad and iPod touch

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports macOS version 10.12,10.13 and 10.14 (64-bit)

iVMS-4200 video management software for the DVRs, NVRs and IP cameras
Supports Microsoft Windows 7/Windows 8.1/Windows 10 (32-bit or 64-bit)/Windows XP SP3 (32-bit)/Windows 2008 R2/Windows Server 2012 (64-bit)

SADP Tool V3.1.0.8
Search, activate devices on the network and modify the basic network information

3-YEAR WARRANTY

Infinite Cables Inc. offers a 3-year warranty on all cameras and hard drives to be free from defects in material and workmanship.

This warranty is available to the original purchaser with proof of purchase. This warranty does not apply to any damage or product failure that is caused beyond Infinite Cables’ control, including but not limited to, misuse, neglect, accidental damage, improper installation or application, alteration, acts of God, or normal wear and tear. Infinite Cables is not responsible for any costs of removal or installation. Infinite Cables’ sole and exclusive obligation under this warranty shall be limited to repair or replacement of the defective item at our discretion.

Infinite Cables makes no other warranties expressed or implied including without limitation and warranty of fitness for a particular purpose. Infinite Cables will not be liable for damages of any kind including lost or anticipated profits, delay, consequential or special damages.
