Description

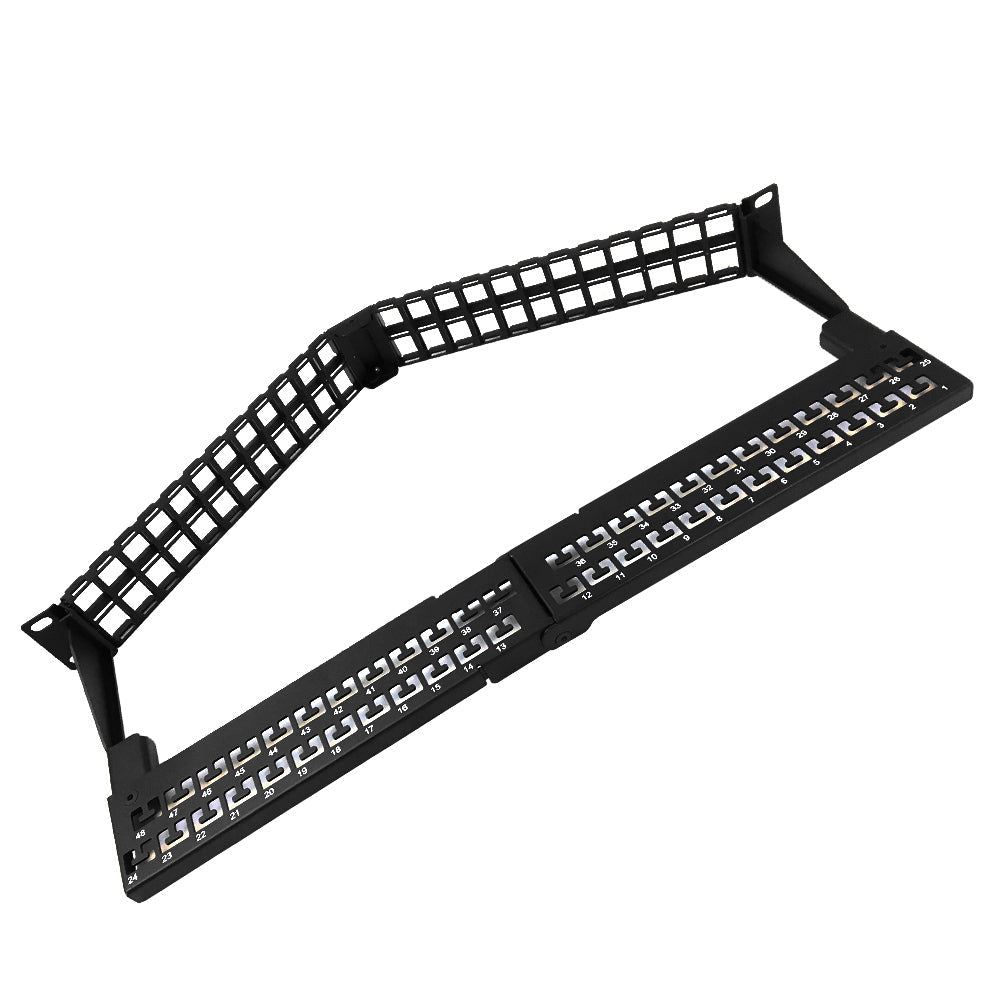

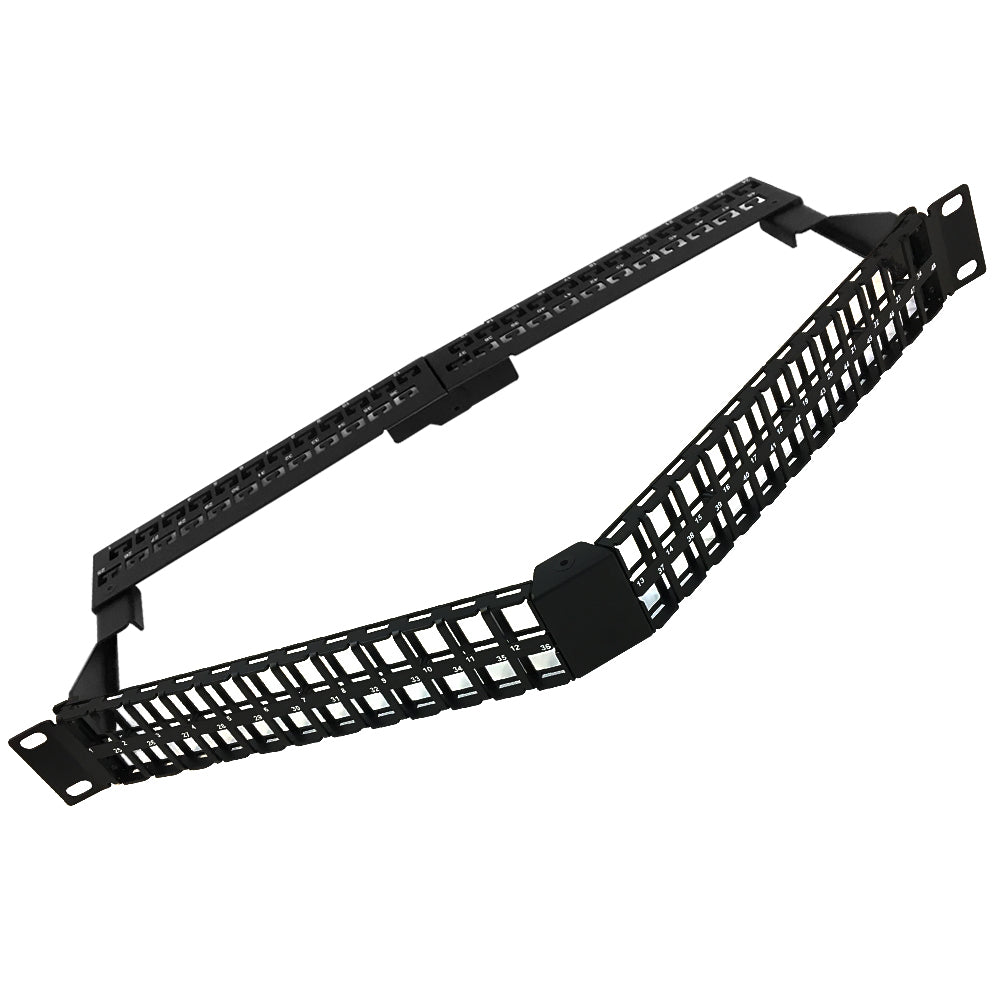

This 48 port patch panel comes unloaded and is 1U in height. It can be fitted with standard networking and audio/video keystone inserts and is meant to be mounted on a 19 inch rack or cabinet. It gives you the flexibility to customize the panel to your specific installation requirements.
The following jacks are not compatible with this patch panel: JK-8C5S-BL, JK-8C5S-BK, JK-8C5S-WH, JK-C6PB-WH, JK-C6PB-BK, JK-C6PB-BL
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Steel |
| Connector Type | Standard Keystone |
| Ports | 48 |
| Shielded | No |
| Product Dimensions | 19 inch W x 1.75 inch H [48 cm W x 4.45 cm H] |
| Rackmountable | Yes, 19 inch rack or cabinet |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - Patch Panel |
| Product Weight | 1.54 lbs [0.70 kg] |
