Description
Overview

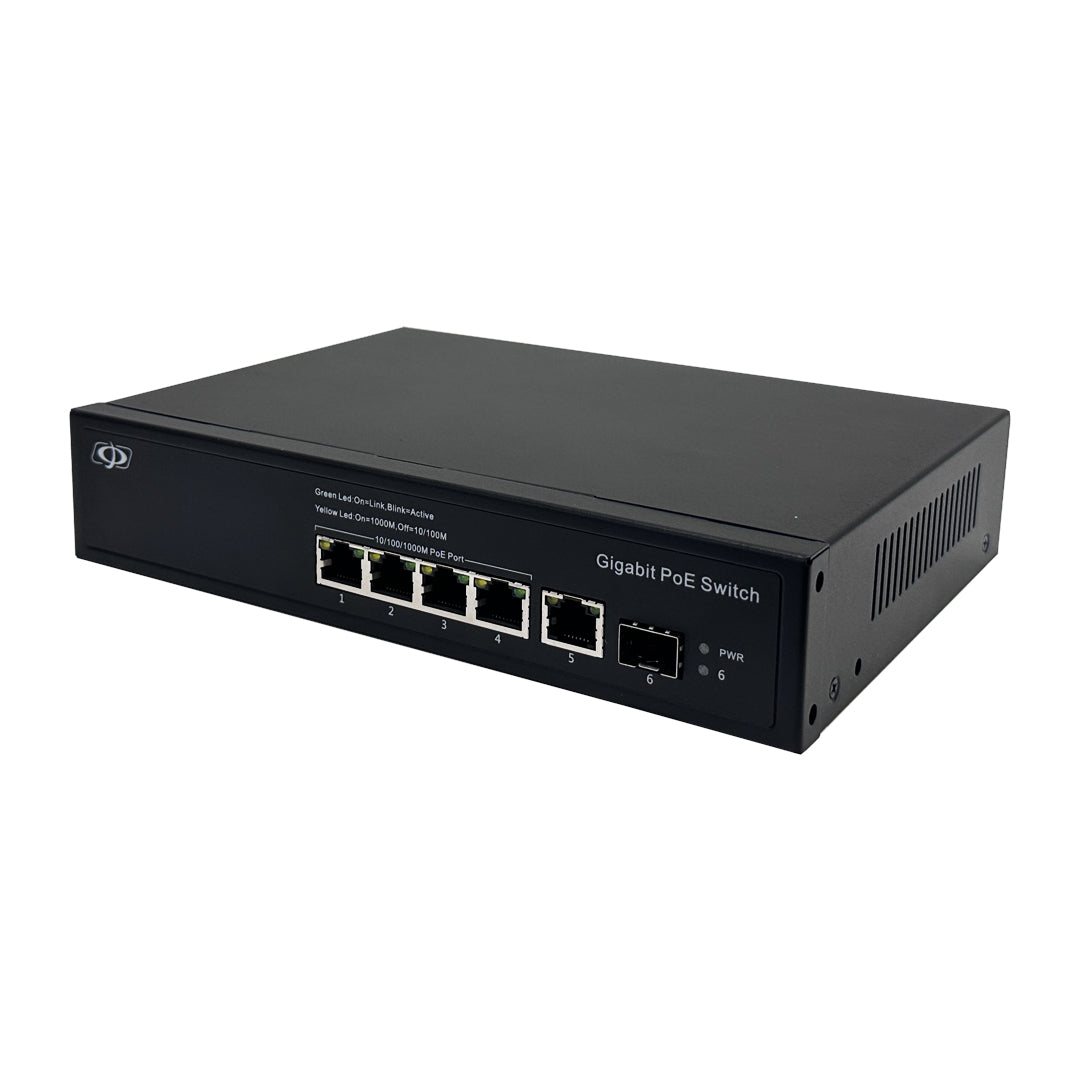

This is a 4+2-port gigabit Ethernet switch, providing 4x 10/100/1000Mbps PoE+ ports, one RJ45 uplink port and one SFP ports. The switch provides power and network to PoE+ compatible devices such as access points, CCTV cameras, voice over IP phone, etc., eliminating the need to power the devices separately.
Features
- 4 x 10/100/1000M unmanaged PoE+ ports - IEEE802.3af/at
- 1 x RJ45 and 1 x SFP Gigabit Uplink Port
- Support auto MDI/MDIX
- Power Budget: 120W
- Network Topology: Star/Bus/Tree Topology
- Solid high-strength metal shell
Application
Specifications
|
Physical Characteristics
|
||||
|---|---|---|---|---|
| Product Dimensions | 220 x 40 x 150 mm | |||
| Shell | Metal Material, Fan-Free Design | |||
| Operating Temperature | -10°C to 50°C | |||
| Storage Temperature | -40°C to 70°C | |||
| Operating Humidity / Storage Humidity |
10% to 90% (no condensation) | |||
| Thermal Methods | Natural cooling | |||
| Power Supply | 100 - 240 VAC ~ 50/60Hz | |||
| Total Power consumption | ≤150W | |||
| Main Board Power | <30W | |||

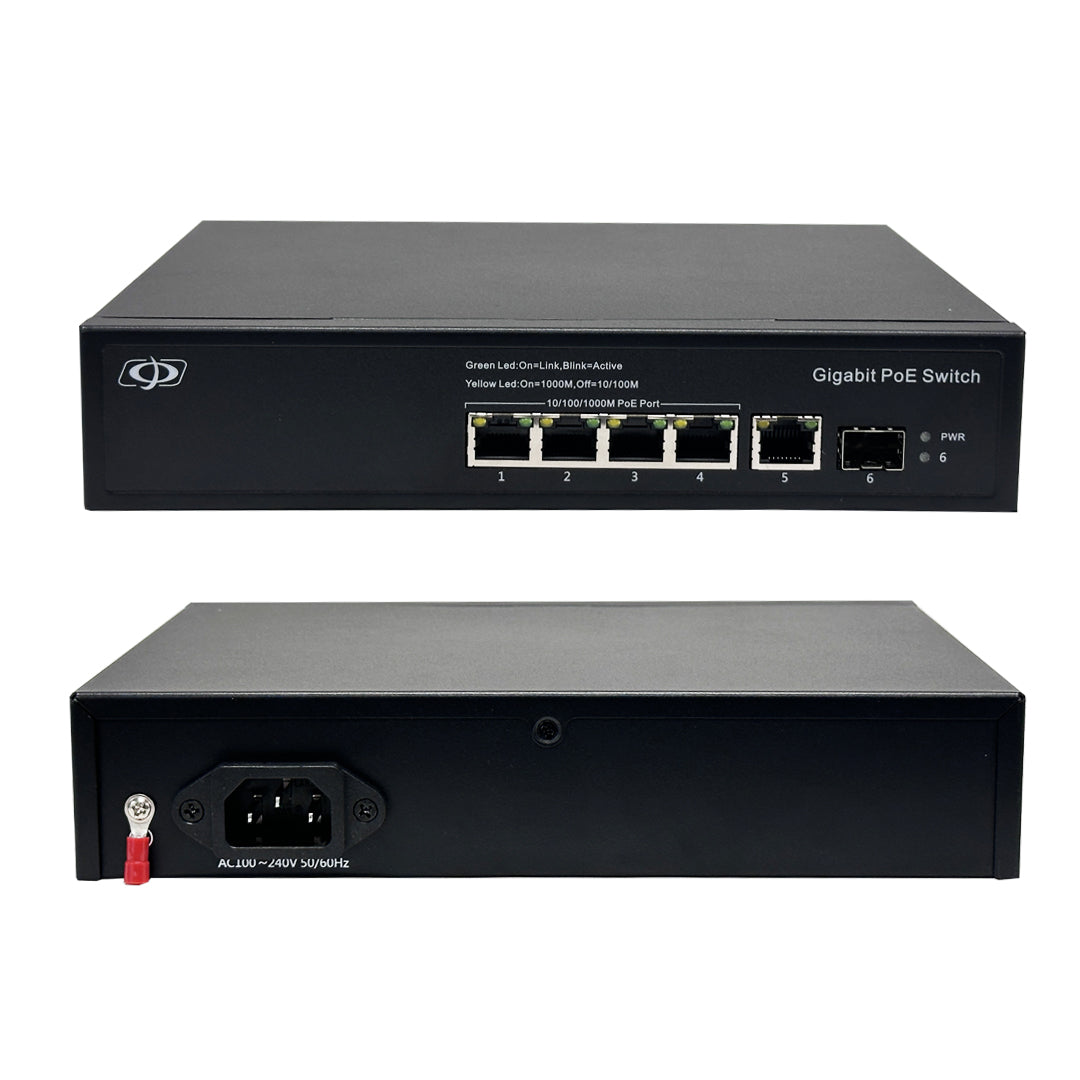

| Ports |
4 x Gigabit PoE+ ports 1 x Gigabit RJ45 port - Uplink 1 x Gigabit SFP fiber optical port - Uplink |
|||
| Port Type | RJ45 port, Full duplex, MDI/MDI-X adaptive | |||
| PoE Power Supply |
PoE Standard: IEEE 802.3af, IEEE 802.3at |
|||
| Cable type & Transmission Distance |
Twisted Pair: 0-100m Singlemode Optical Fiber: 20/40/60/80/100km Multimode Optical Fiber: 550m |
|||
| Network Topology |
Ring Topology: Not Support Star/ Bus/ Tree Topology: Support |
|||
|
Performance
|
||||
| Network Standard | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3z | |||
| MAC Address Table | 2K | |||
| Transfer Mode | Store-and-forward switching | |||
| Switching Capacity | 12 Gbps | |||
| Packet Forwarding Rate | 8.92 Mpps | |||
| Forwarding Delay | <10us | |||
| MDI/MDIX | Support | |||
| Jumbo Frame | 9Kbytes | |||
| Internal Cache/ Buffer | 2 Mbits | |||
| MTBF | 100000 hours | |||
| Surge protection of Ethernet port | IEC 61000-4-5 Level 4 (6/2KV) (10/700us) | |||
| DIP | IEC 61000-4-11 Level 3 (10V) | |||
| ESD | IEC 61000-4-2 Level 4 (8K/15K) | |||
| Free Fall | 0.5m | |||
|
SFP Compatibility
|
||||
| TR-SFP-1G-LXG | 1000base-LX SFP 1310nm SM LC Transceiver, 10km | |||
| TR-SFP-1G-SXG | 1000base-SX SFP 850nm MM LC Transceiver, 500m | |||
| TR-GLC-T | Cisco® GLC-T Compatible 1000BASE-T SFP Copper RJ45 Transceiver | |||
|

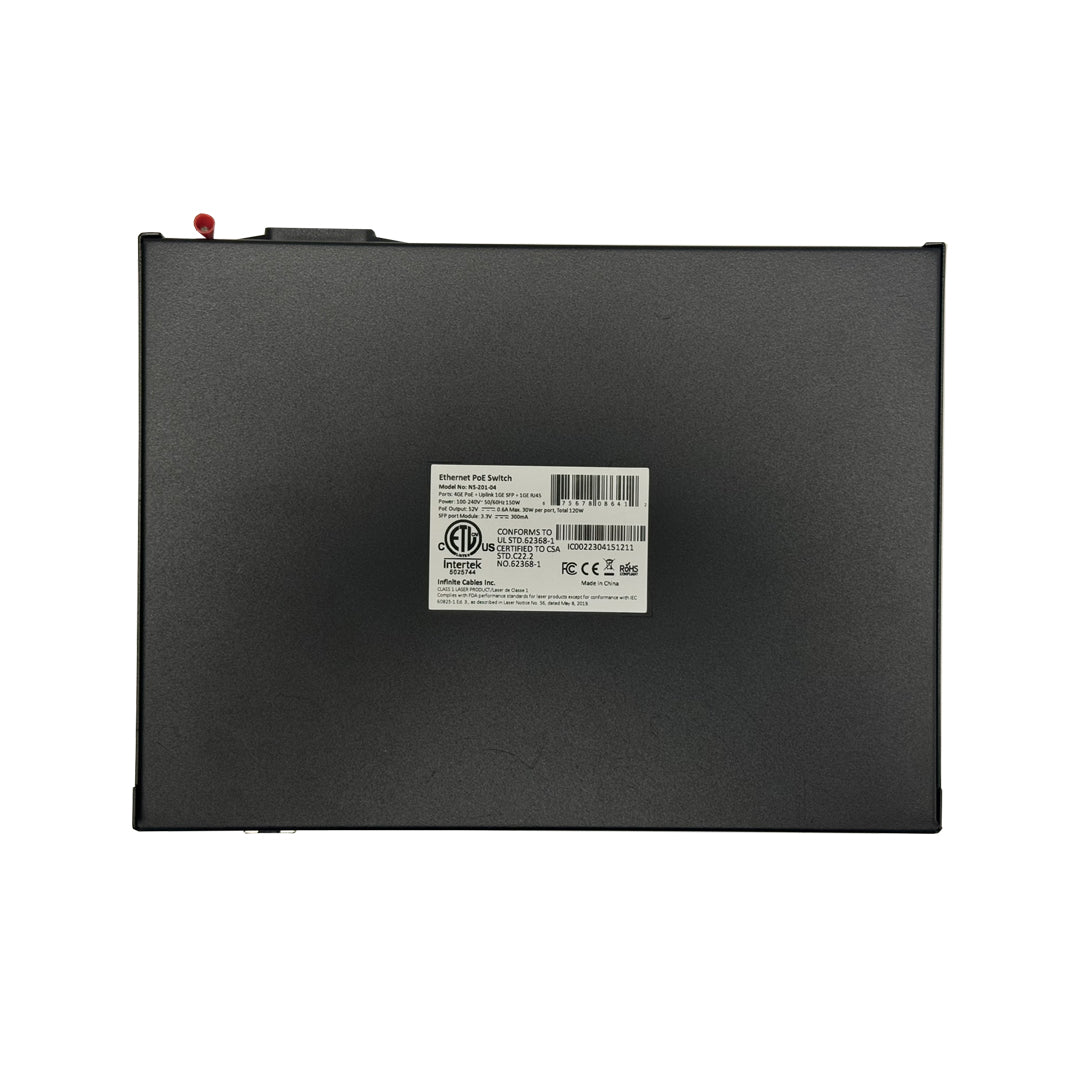

Approval
|
||||
| c(ETL)us |
Yes | |||
|
Environmental
|
||||
| RoHS | Yes | |||
| FCC, CE | Yes | |||
|
Packaging Information
|
||||
| Package Quantity | 1 | |||
| Product Weight | 2.3 lbs | |||
Spec Sheets
Download attachment - Spec Sheet
