Description

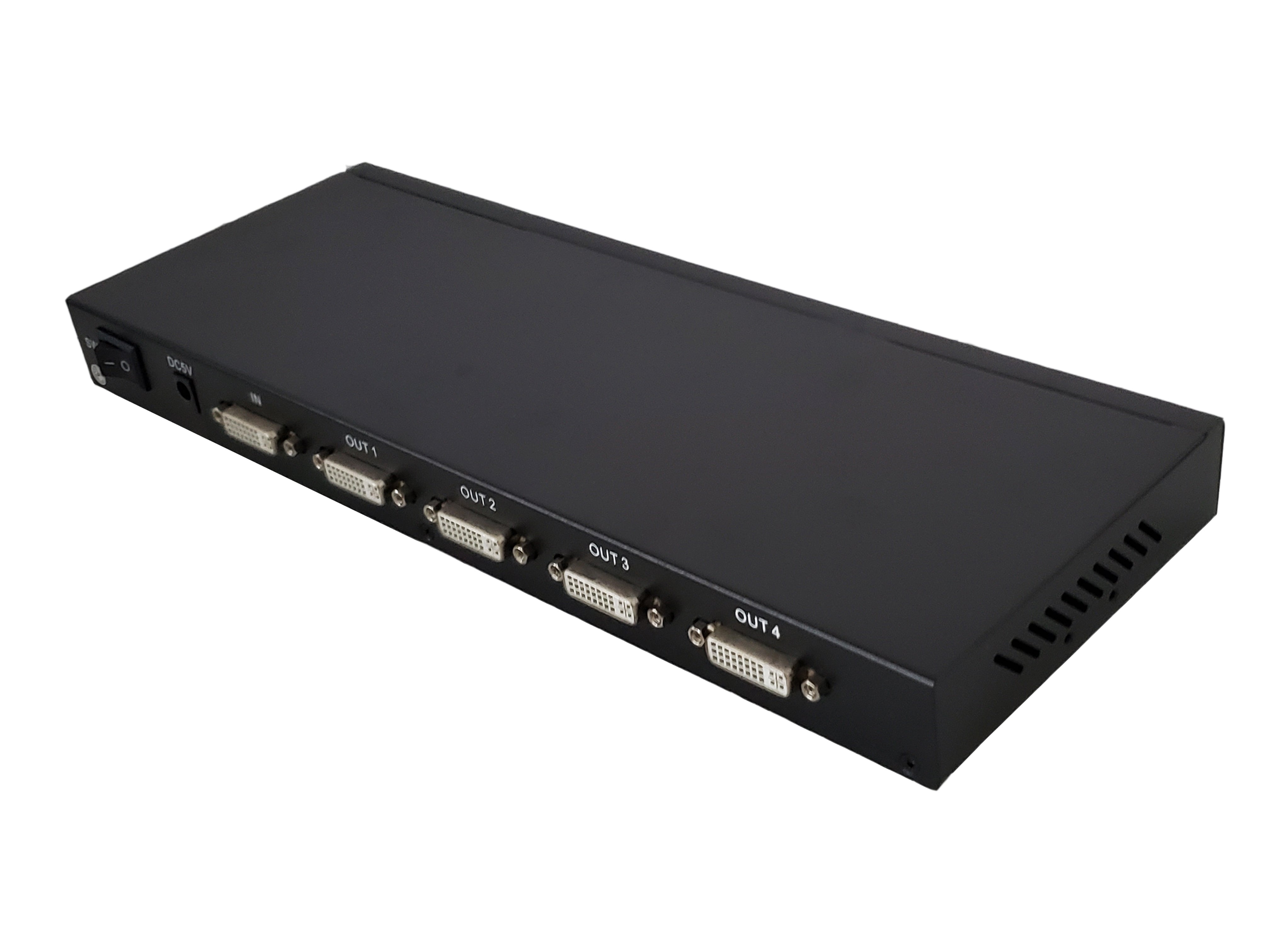

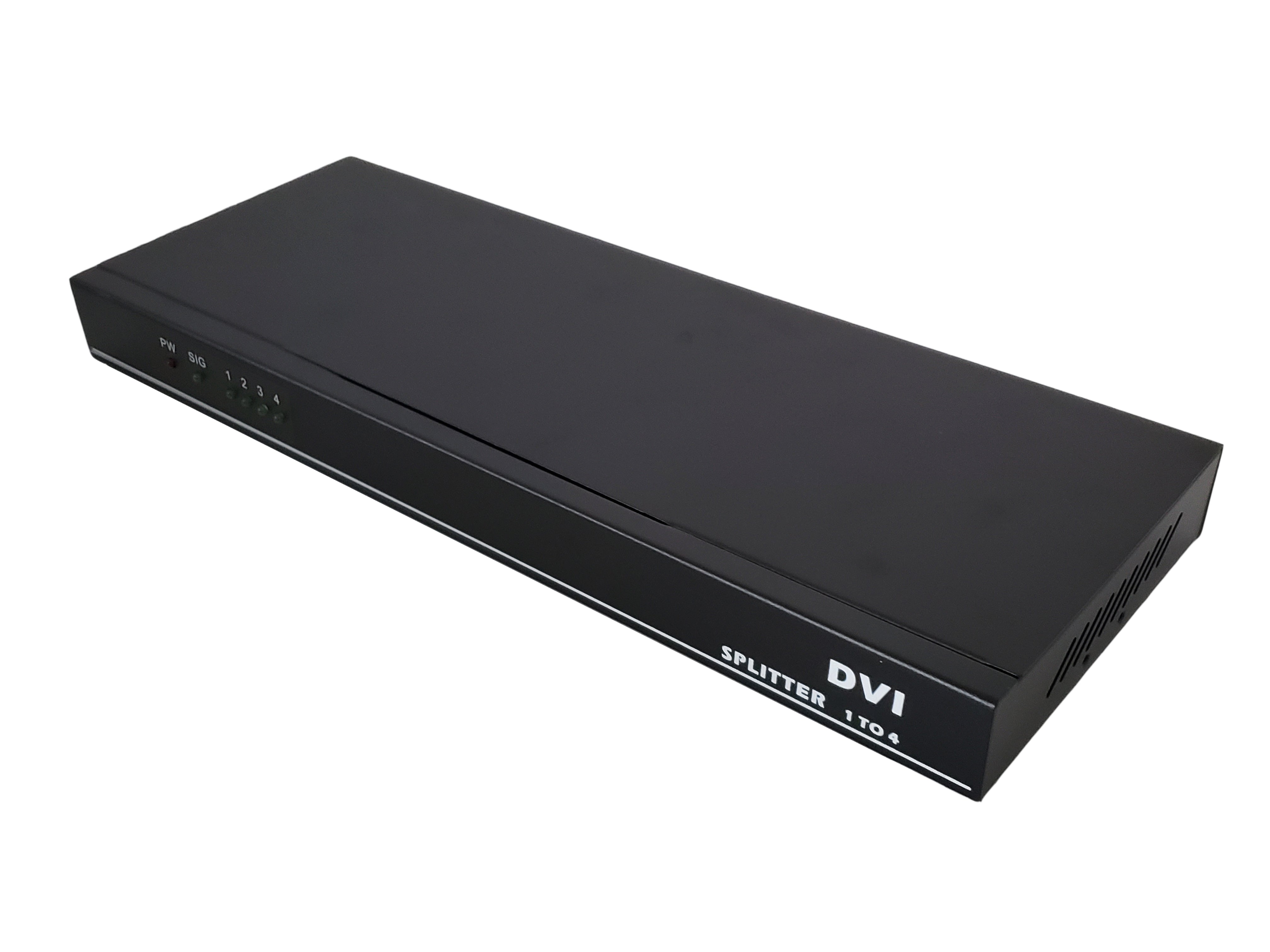

This 1x4 DVI splitter enables you to display one DVI source to four DVI displays simultaneously. It is typically used to connect DVI sources such as DVD players, Blu-ray players, satellite receivers or gaming systems to DVI displays such as HDTVs, HD projectors or DVI monitors.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Housing | Metal Enclosure |
| Dimensions | 317L x 120W x 30H mm [12.48L x 4.72W x 1.18H inches] |
| Operating Temperature | -5 to +45℃ |
| Storage Temperature | -15 to +55℃ |
| Operating Humidity | 10 to 90% RH (No Condensation) |
| Storage Humidity | 5 to 95% RH (No Condensation) |
| Connectors | |
| Video Input Connector | 1 - DVI Female |
| Video Output Connector | 4 - DVI Female |
| Power | |
| Power Adapter | AC 100V ~ 240V 50Hz/60Hz DC5V/2A |
| Performance | |
| DVI Resolution | Up to 4096 x 2160 @ 30Hz |
| Max Signal Bandwidth | 340MHz |
| Max Baud Rate | 3.4Gbps Serial Link |
| Input/Output TMDS Signal | 0.5~1.5Volts p-p(TTL) |
| Input/Output DDC Signal | 5Volts p-p(TTL) |
| Max Working Current | 1.2A/5V |
| Approvals | |
| Power Adapter | c(ETL)us |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.3 lbs [0.58kg] |
| Contents | |
| Included in Package | 1 - DVI Splitter |
| 1 - Power Adapter | |
| 2 - Rack Rails, 4 - Screws | |
| 1 - User Manual | |
