Description

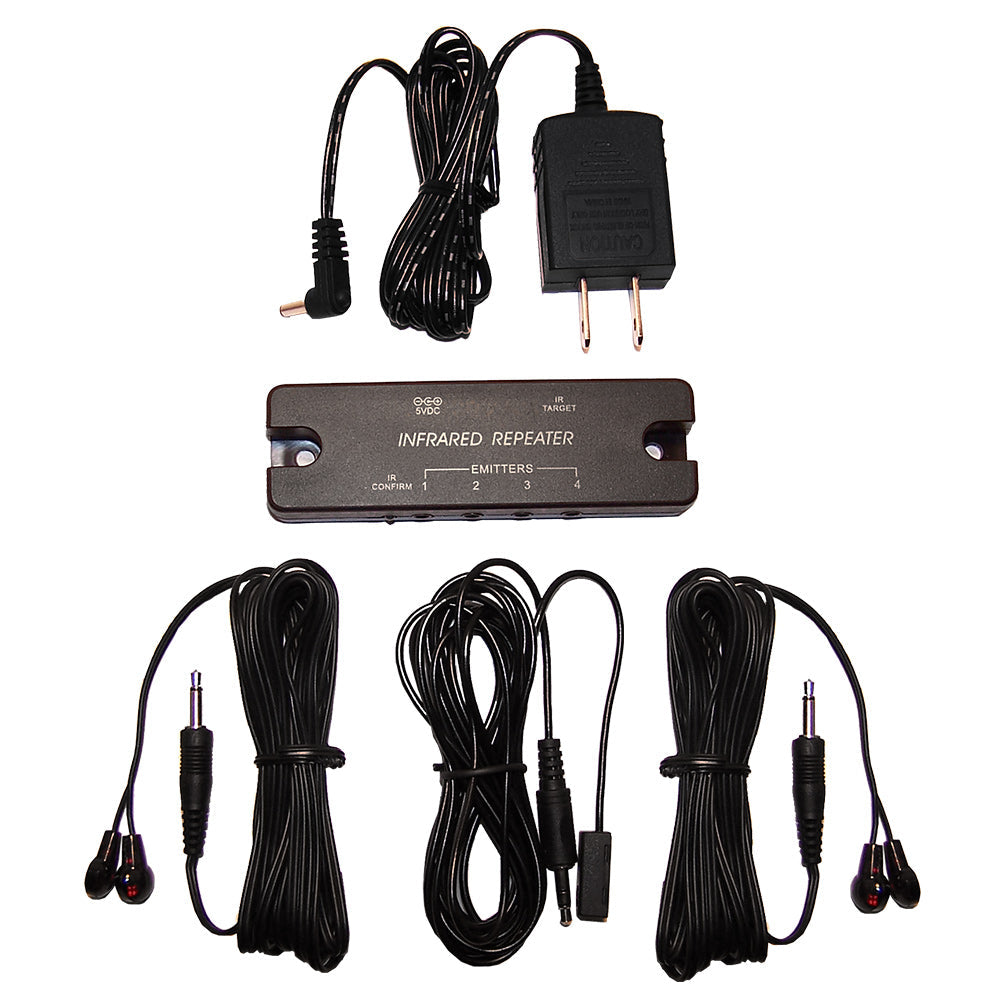

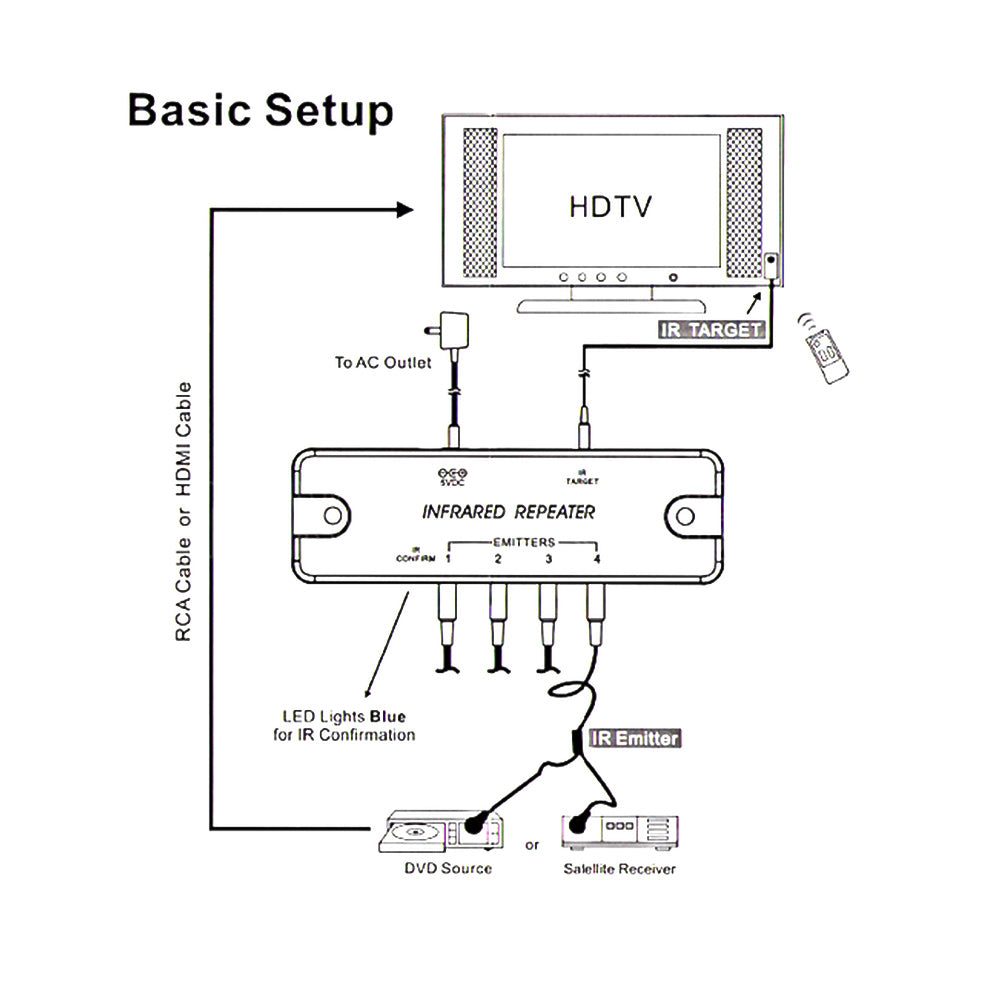

This 4-port active IR kit consists of two dual IR emitter, one IR target, one 4-port IR connecting block and one power supply. It is used to receive IR remote control commands and emits the signals to the IR inputs of audio/video components.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Length | 1x 10 foot [3m] - 3.5mm Mini Plug 2x 7 foot [2.1m] - Dual IR Emitter |
| IR Confirmation LED | Yes |
| Expandable | Yes (up to 8 ports) |
| CFL Friendly | Yes |
| Compatible Expansion Emitters | IR-101-07 IR-102-07 |
| Connector(s) | |
| Emitter Output Ports | 4 |
| Performance | |
| IR Frequency Range | 30 KHz to 60 KHz |
| Range | 40ft. at 38 KHz 25ft. at 56 KHz |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.25 lbs |
| Contents | |
| Included in Package | 1 - 4-port IR Connecting Block 2 - Dual IR Emitter 1 - IR Target 1 - Self-adhesive tape 1 - Power Supply |
*Note: The system is not compatible with the following IR receivers:
IR-200
IR-201
IR-202
IR-203
IR-258
