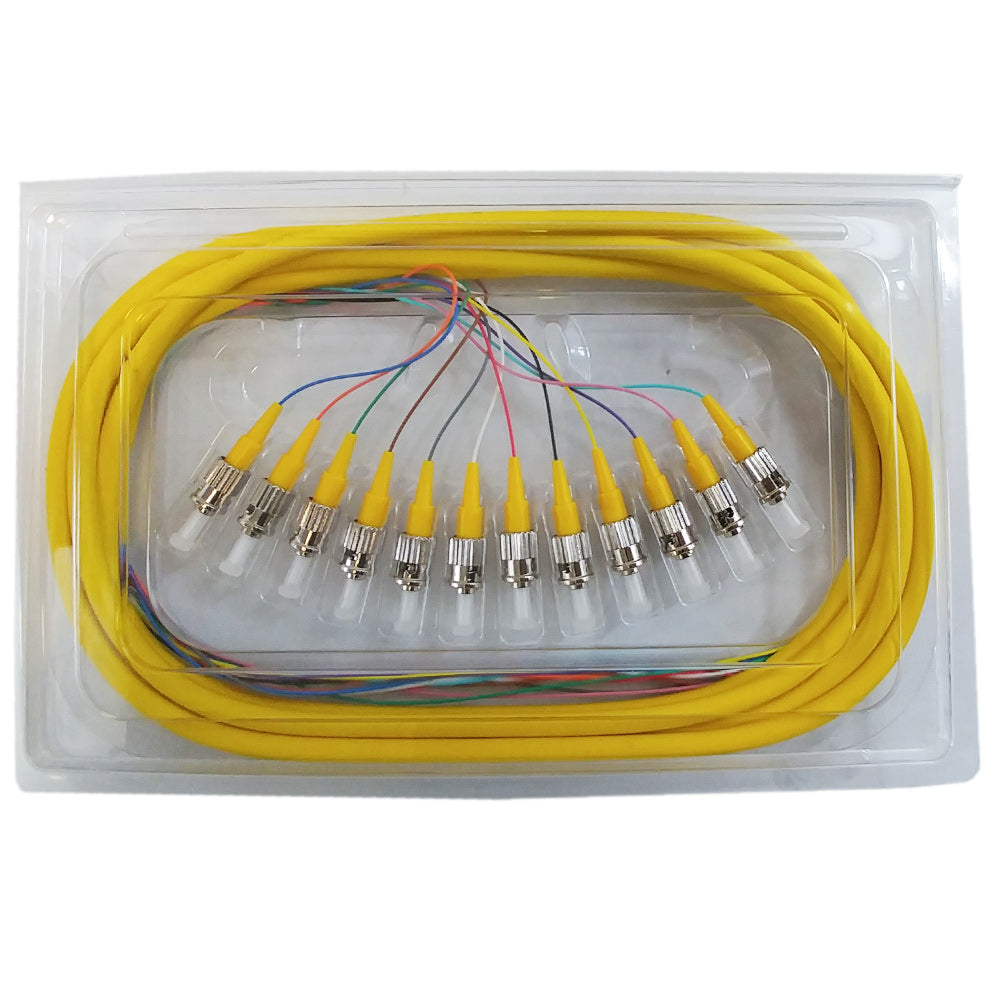

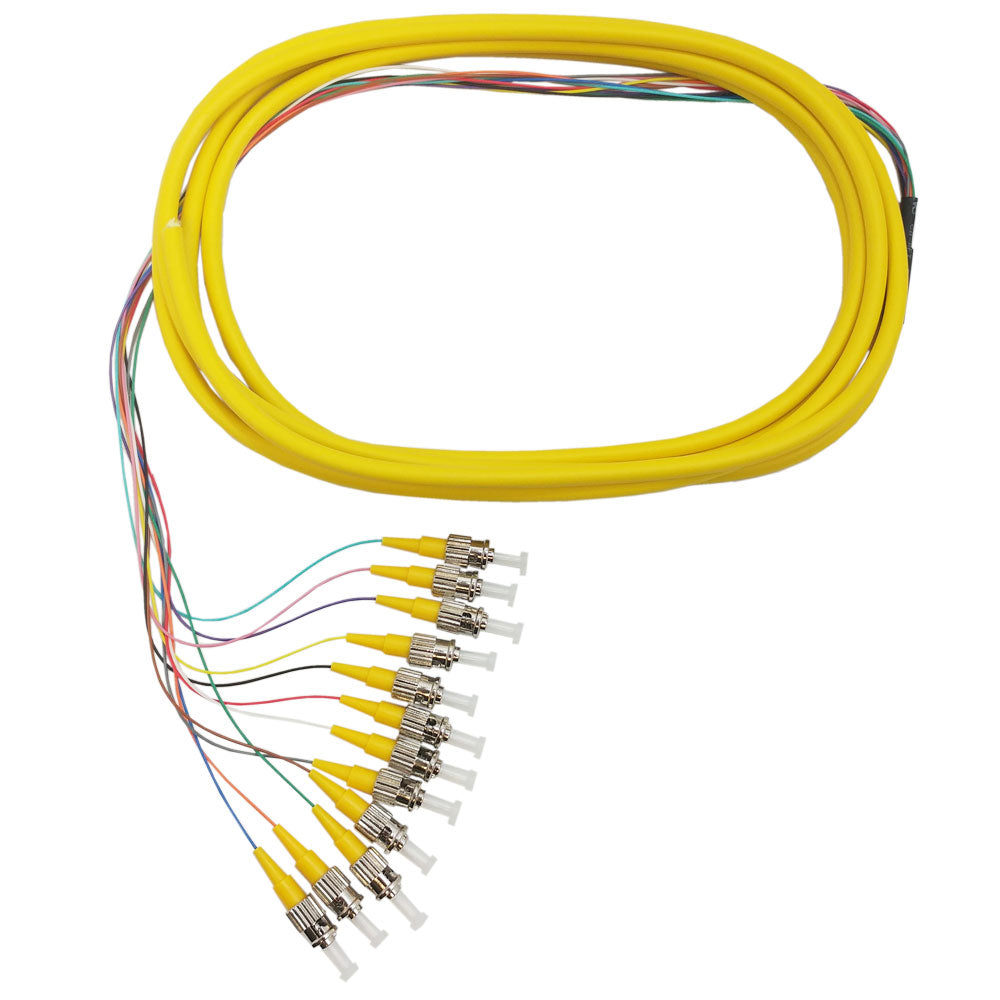

3m ST/UPC 12-Fiber OS2 Singlemode Simplex 9 micron - 900um Jacketed Pigtail - 19inch Fan-Out - OFNR

Fiber Optic Pigtail CablesSKU: FO-PT600-10J-12F

Price:
Sale price$39.85 CAD
Stock:
In stock

Description

These 9 micron (OS2) fiber optic jacketed pigtails have terminated ST fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.


Physical Characteristics
Cable Length 3m [9.84 foot]
Color Yellow
Cable Diameter 6.2mm
Sub-Unit Diameter 900 micron
Fiber Size 9/125 micron
Fiber Type Singlemode
Glass Manufacturer Corning Glass
Connector Ferrules Ceramic
Fiber Classification OS2
Jacket Rating Riser OFNR
Connector(s)
Connector A 1 - ST/UPC Simplex Male
Connector B Un-Terminated
Performance
Insertion Loss ¹0.3db @ 1550nm
Return Loss €°¥55db
Speed 10 Gbps
Endface Geometry 100% Interferometer Tested
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1 Cable
Product Weight 0.20 lbs [0.09kg]
Warranty Information
Warranty Limited Lifetime

Spec Sheets

Download spec sheet
