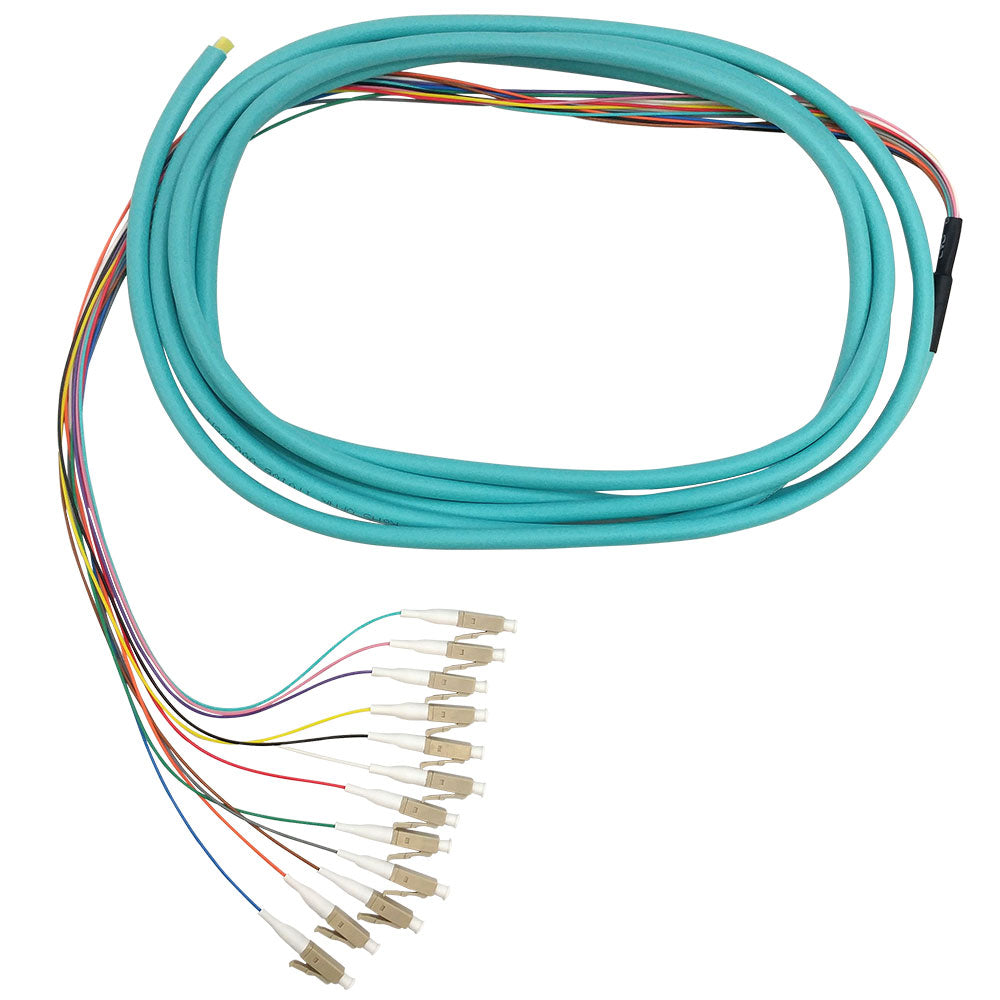

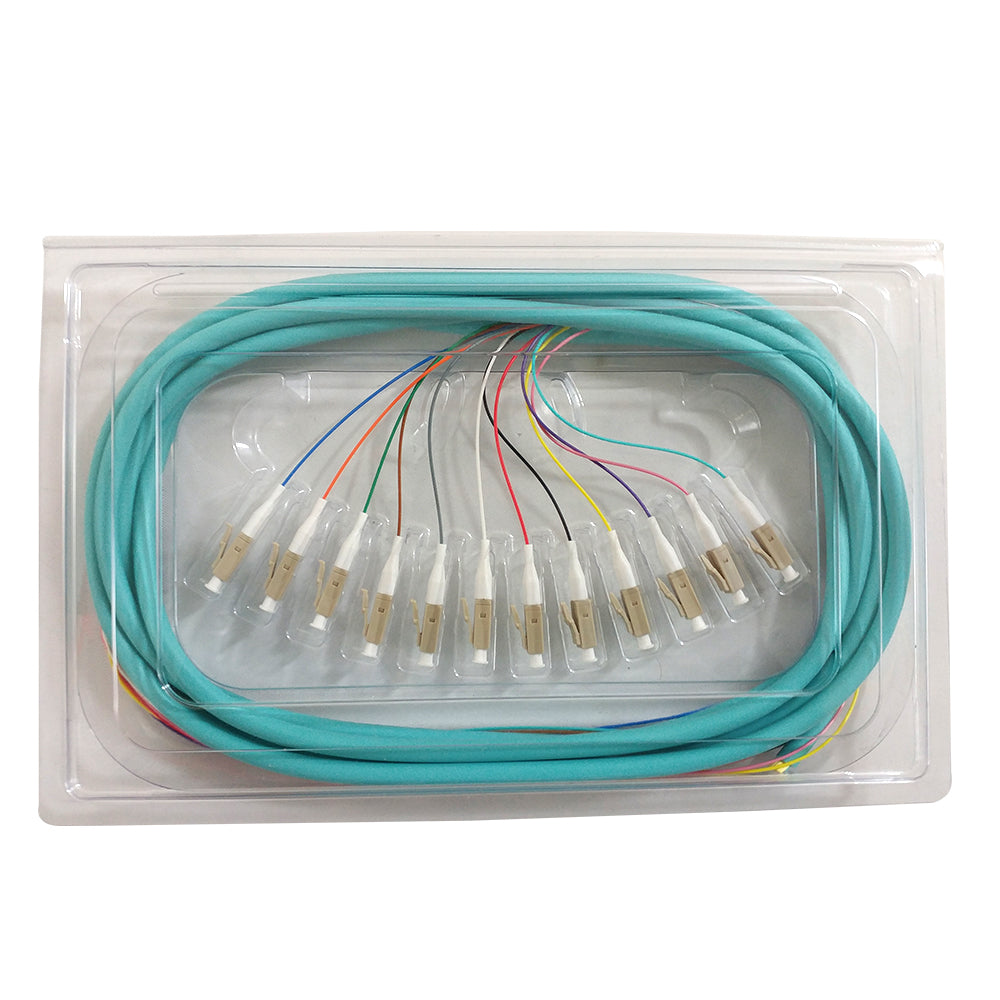

3m LC/PC 12-Fiber OM4 Multimode Simplex 50 micron - 900um Jacketed Pigtail - 19inch Fan-Out - OFNR

Fiber Optic Pigtail CablesSKU: FO-PT858-10J-12F

Price:
Sale price$63.20 CAD
Stock:
In stock

Description

These 50 micron (OM4) fiber optic jacketed pigtails have terminated LC fiber optic connectors on one side and are un-terminated on the other side. The un-terminated ends are meant to be stripped and fusion spliced to single fibers of a multi-strand fiber trunk cable.


Physical Characteristics
Cable Length 3m [9.84 foot]
Color Aqua
Cable Diameter 6.2mm
Sub-Unit Diameter 900 micron
Fiber Size

50/125 micron €“ Laser Optimized

Fiber Type Multimode
Glass Manufacturer Corning Glass
Connector Ferrules Ceramic
Fiber Classification OM4
Jacket Rating Riser OFNR
Connector(s)
Connector A 1 - LC/PC Simplex Male
Connector B Un-Terminated
Performance
Insertion Loss ¹0.3db @ 1300nm
Speed 10 Gbps
Endface Geometry 100% Interferometer Tested
Environmental
RoHS Yes
Conflict Minerals Yes
Packaging Information
Package Quantity 1 Cable
Product Weight 0.20 lbs [0.09kg]
Warranty Information
Warranty Limited Lifetime

Spec Sheets

Download spec sheet
