Description

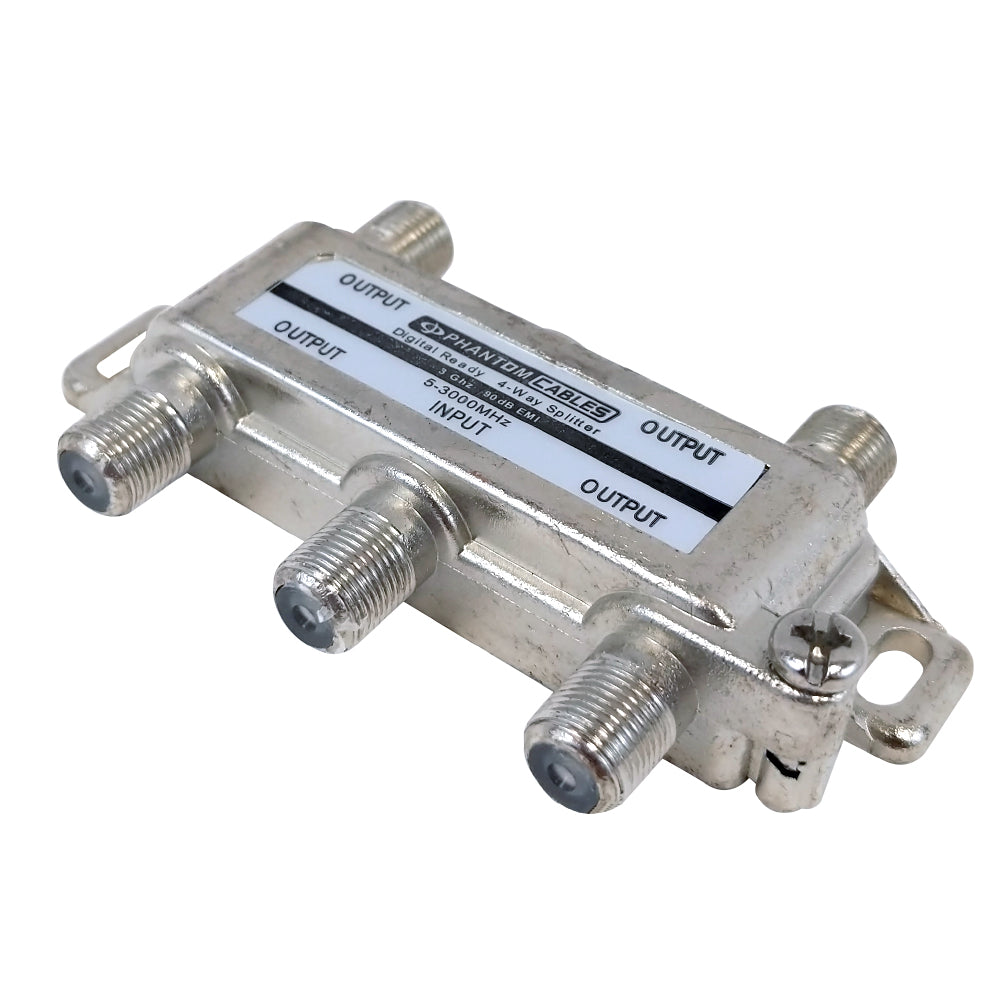

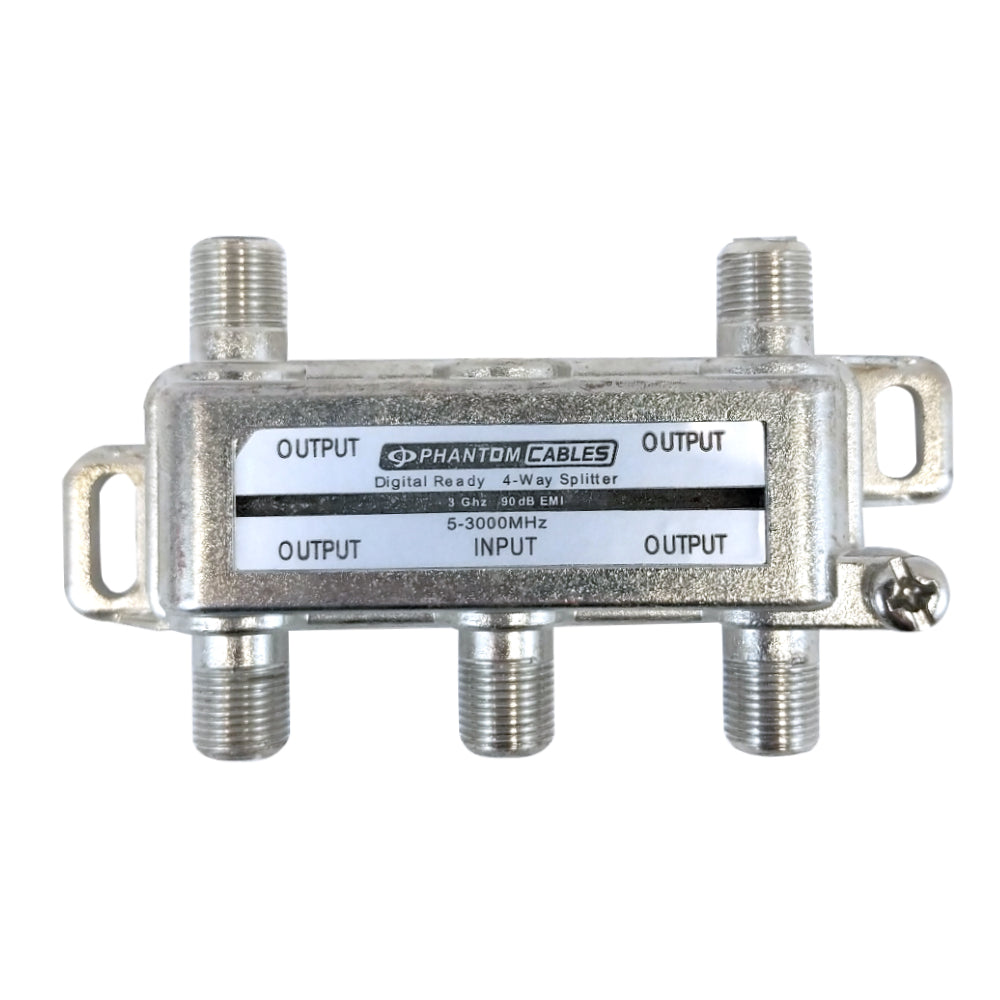

This digital splitter has a F-Type female input on one side and four F-Type female outputs on the other side. It is typically used to split broadband or CATV 5-3000MHz 75Ω sources such as hybrid distribution networks, HDTV, voice, data, modem and digital converter applications to dual outputs.
- Premium 3GHz 90dB Digital Ready Splitter
- Broadband and CATV 5-3000MHz 75Ω Splitter
- Suitable for Hybrid Distribution Networks, HDTV, Voice, Data, Modem and Digital Converter Applications
- Gold-Plated Beryllium-Copper Two-Prong Contacts
- Reduced Aperture Flat-Ended Ports
- High-Performance Printed Board Circuitry
- Tongue-and-Groove Housing
- All Ports DC Power Capacitor-Blocked
- Low Intermodulation Hum
- Soldered-Back Cover 90dB min. EMI-RFI Shielding
- 3/8" Precision Machined F-Port Threads
- 1" centered F-ports accommodate security tools
- Supplied with Protective F-Port Plastic Caps
| Physical Characteristics | |
|---|---|
| Color | Silver |
| Contacts | Gold-Plated Beryllium-Copper Two-Prong |
| Housing | Metal Enclosure |
| Shielding | EMI-RFI |
| Circuitry | High-Performance Printed Board |
| Performance | |
| Frequency | 3GHz |
| Impedance | 75Ω |
| Amplitude | 90dB (min) |
| Loss at 1GHz | 8.2dB |
| Loss at 3GHz | 13.0dB |
| Mounting Holes | 2 |
| Connector(s) | |
| Input | 1 x F-Type Female input |
| Output | 4 x F-Type Female output |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 - 3GHz 90dB Digital Splitters 4-Way with Plastic Caps |
| Product Weight | 0.1 lbs [0.1kg] |
| Package Weight | 0.2 lbs [0.1kg] |
