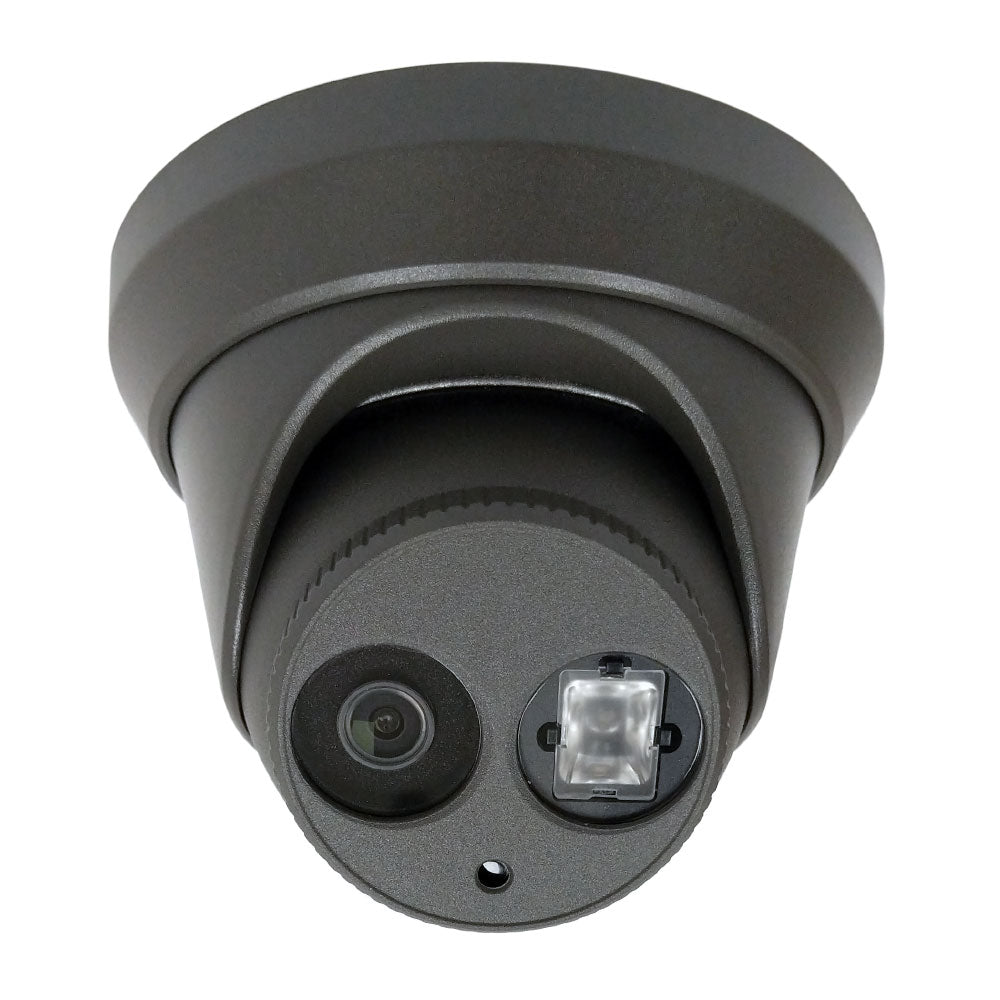

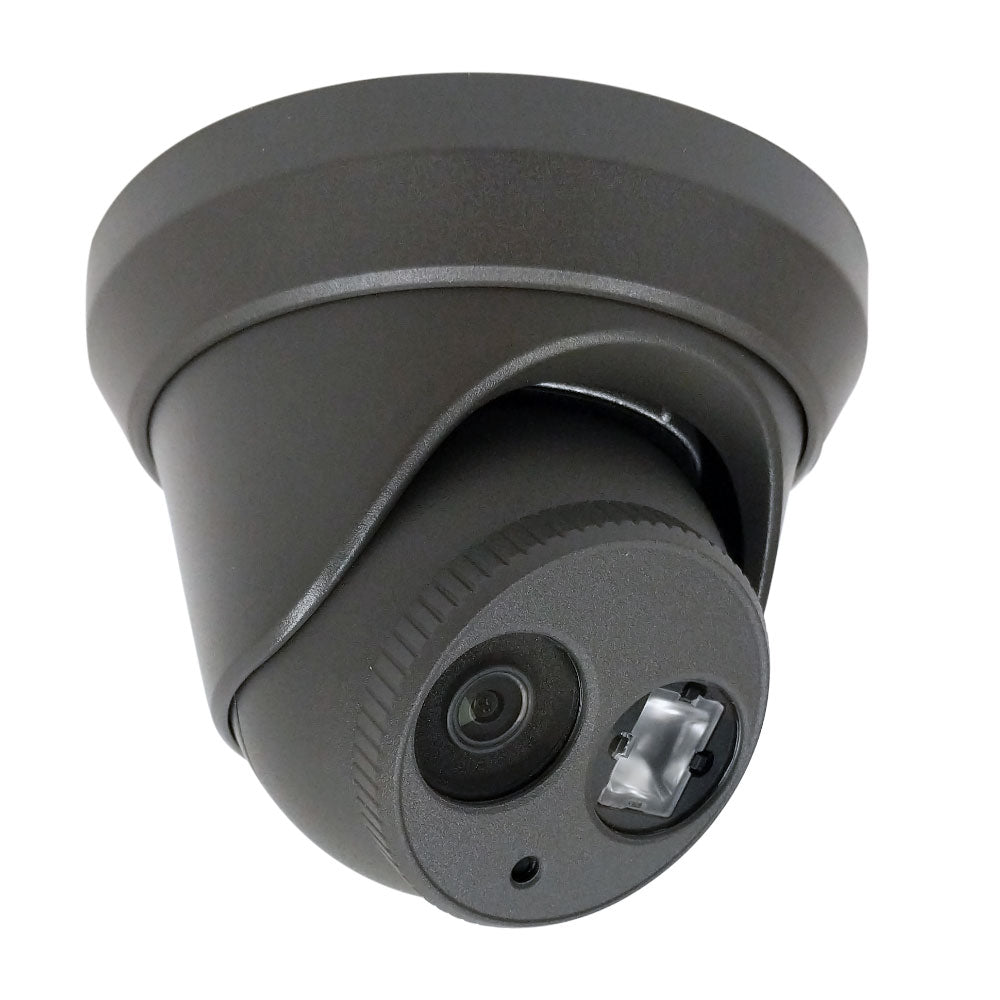

2MP Turret Camera - 2.8mm Fixed Lens - Smart IR with 40m Range - IP67 Rated - Grey

Analog Cameras & RecordersSKU: CA-AC324F-FD4-2WH

Size: 2.8mm Lens
Color: White
Price:
Sale price$75.00 CAD
Stock:
In stock

Description

Overview

This 2MP indoor/outdoor, TVI based turret camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 103° horizontal field of view respectively. Its maximum resolution is 1080p at 30 fps NTSC or 1080p at 25 fps PAL. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 130 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

Features

  • 2 megapixel high performance CMOS
  • Analog HD output, up to 1080p resolution
  • True Day/Night
  • EXIR 2.0, smart IR, up to 40m IR distance
  • Switchable TVI/AHD/CVI/CVBS (white model only)
  • Outdoor IP67 rated
  • DWDR (Digital Wide Dynamic Range)
  • 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • 12 VDC


Application


Specifications

Camera
Image Sensor 2 MP CMOS image sensor
Signal System PAL/NTSC
Frame Rate PAL: 1080p@25fps NTSC: 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Minimum Illumination 0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
Slow Shutter Maximum 16 times
Lens 2.8mm fixed focal lens
3.6mm fixed focal lens
Horizontal Field of View
103°(2.8 mm), 82.2°(3.6 mm)
Lens Mount M12
Day and Night IR cut filter
Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
Synchronization Internal synchronization
Menu
AGC Low/middle/high
Day and Night Mode Smart/color/BW(Black and White)
Backlight Compensation Yes
DWDR Yes
Language English
Functions Brightness, Sharpness, DNR, Mirror
Interface

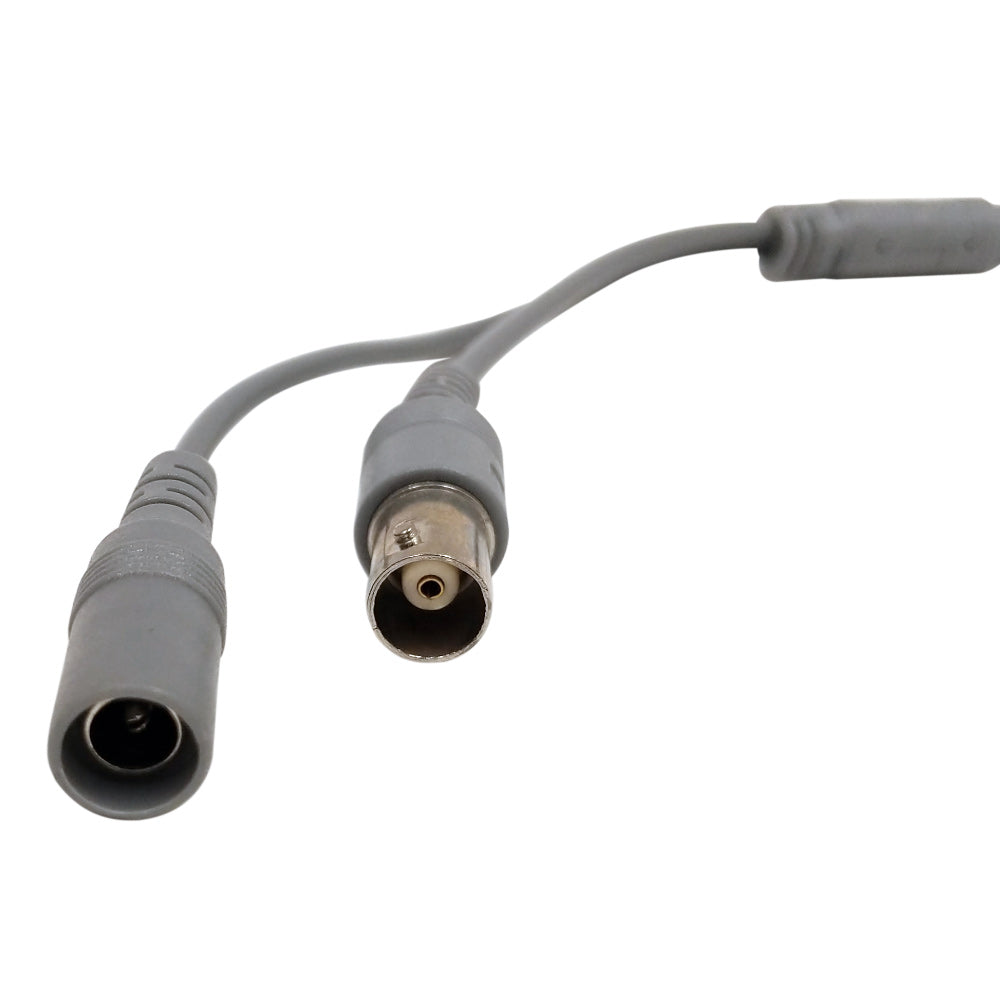

Video Output 1 HD analog output

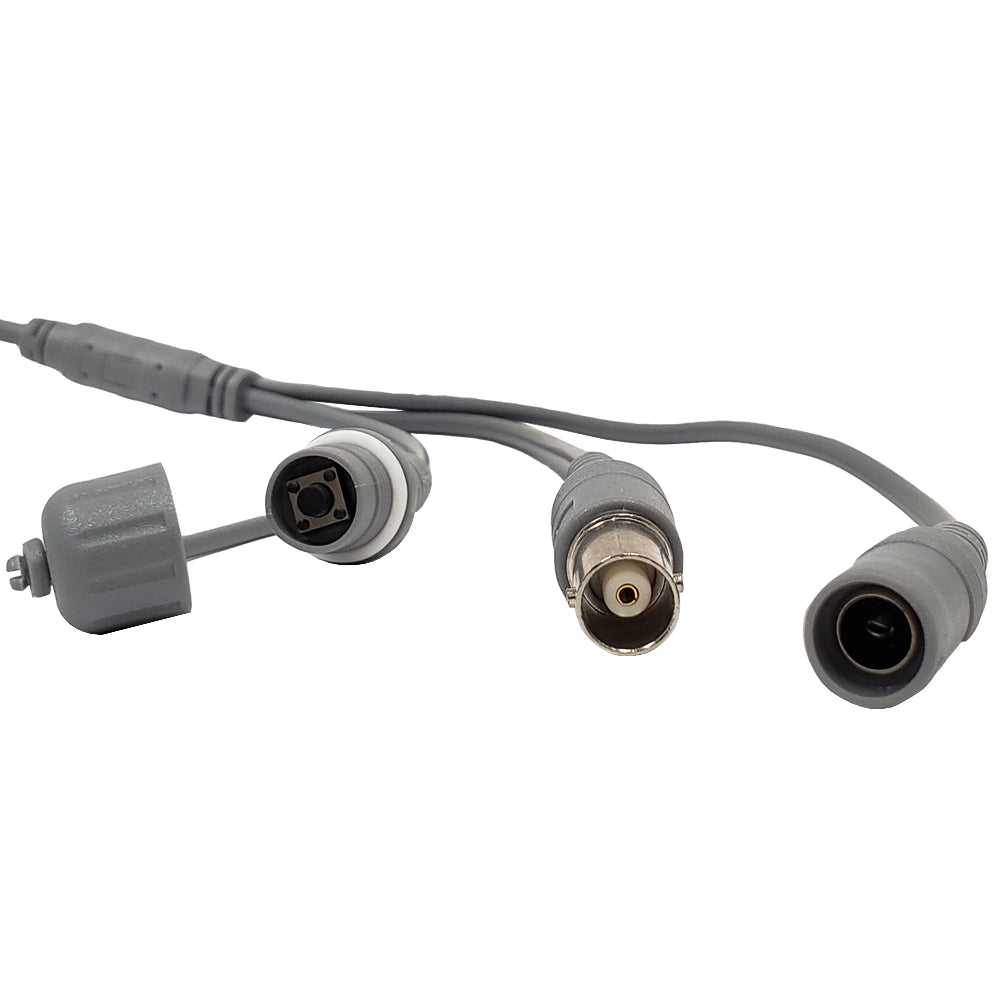

Switch Button TVI/AHD/CVI/CVBS (white model only)
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity: 90% or less (non-condensation)
Power Supply 12 VDC ± 25%
Power Consumption Max. 4 W
Ingress Protection IP67
Material Plastic
IR Range Up to 130 ft (40 m)

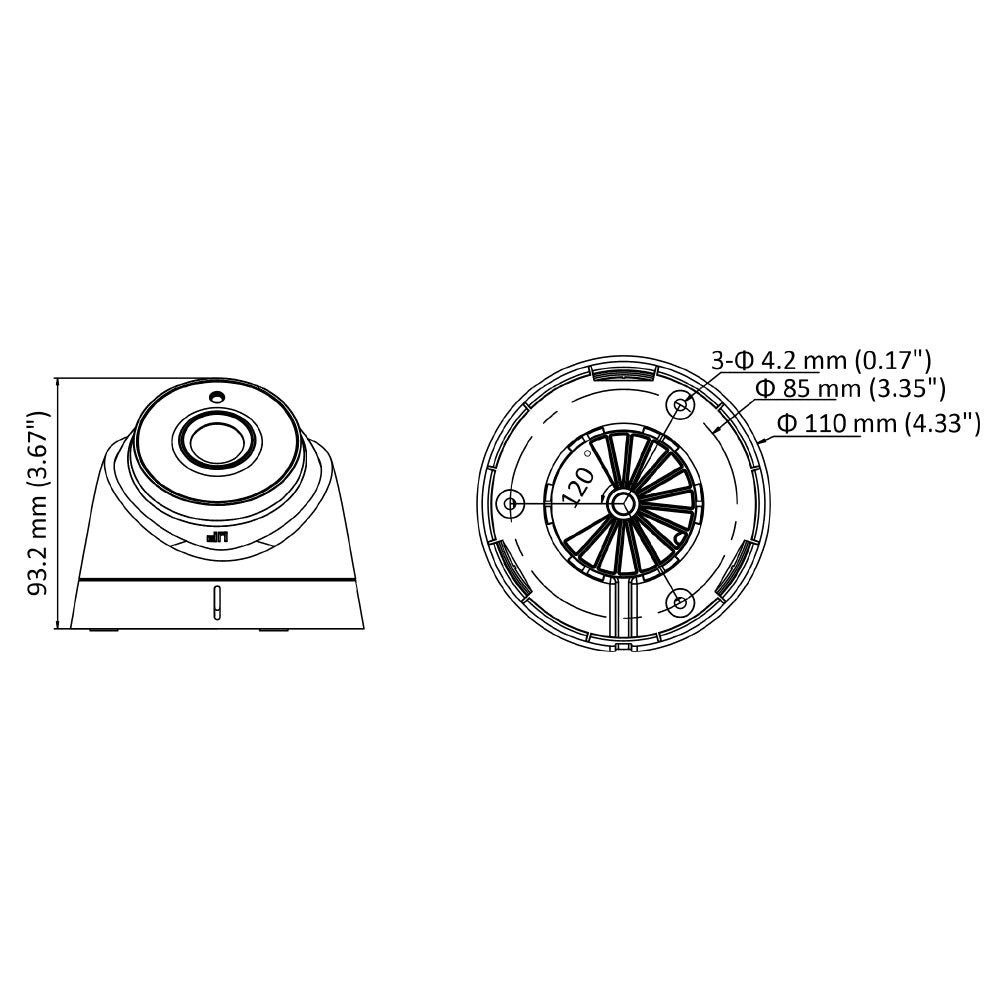

Dimensions Φ 110 mm × 93.2 mm (4.33" × 3.67")
Weight Approximately 0.77 lbs (350 g)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Compatible Products

Compatible Mounts

CA-B2100-WH Wall Mounting Bracket with Junction Box for Turret Cameras - White
CA-DS-1273ZJ-130-TRL-WH Wall Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-WH Junction Box Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-GY Junction Box Mounting Bracket for Turret Cameras - Grey
CA-DS-1272ZJ-110-TRS-WH Wall Mounting Bracket for Turret Camera - White

Compatible Baluns

VE-BNC-006 BNC Passive Video Extender - RJ45 (1000ft)
VE-BNC-009 BNC Balun - 1000ft Passive Video Extender - Push Button
VE-BNC-010 BNC Balun - 1000ft Passive Video Extender - Screw Down
VE-BNC-011 BNC + Power Balun - 1000ft Passive Video Extender - RJ45

Compatible DC Power Supplies

PDC-12V1A-01 DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us
PDC-12V5A-04 DC Power Supply 4CH - Input 120V ~ 240V - Output 12V 5A - c(UL)us
PDC-12V10A-09 DC Power Supply 9CH - Input 120V ~ 240V - Output 12V 10A - c(UL)us
PDC-12V18A-18 DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 18A - c(UL)us

Compatible DC Power Connectors

CN-DCM-S DC Power Connector Male 2.1mm x 5.5mm Screw Down
CN-DCM DC Power Connector Male 2.1mm x 5.5mm Plastic Shell
CN-DCM-8IN DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG)

Compatible BNC Connectors

CN-CBNCM-59-10 BNC Male Compression Connector for RG59 - Pack of 10
CN-CBNCM-59-10PL BNC Male Compression Connector for RG59 Plenum - Pack of 10
CN-30-734A BNC Male Crimp Connector for RG59 (734A)
CN-30-RG59P BNC Male Crimp Connector for RG59 Plenum Cable
CN-30-S BNC Male Screw Down Connector, 75 Ohm
CN-TBNC-59 BNC Male Twist-On Connector for RG59
