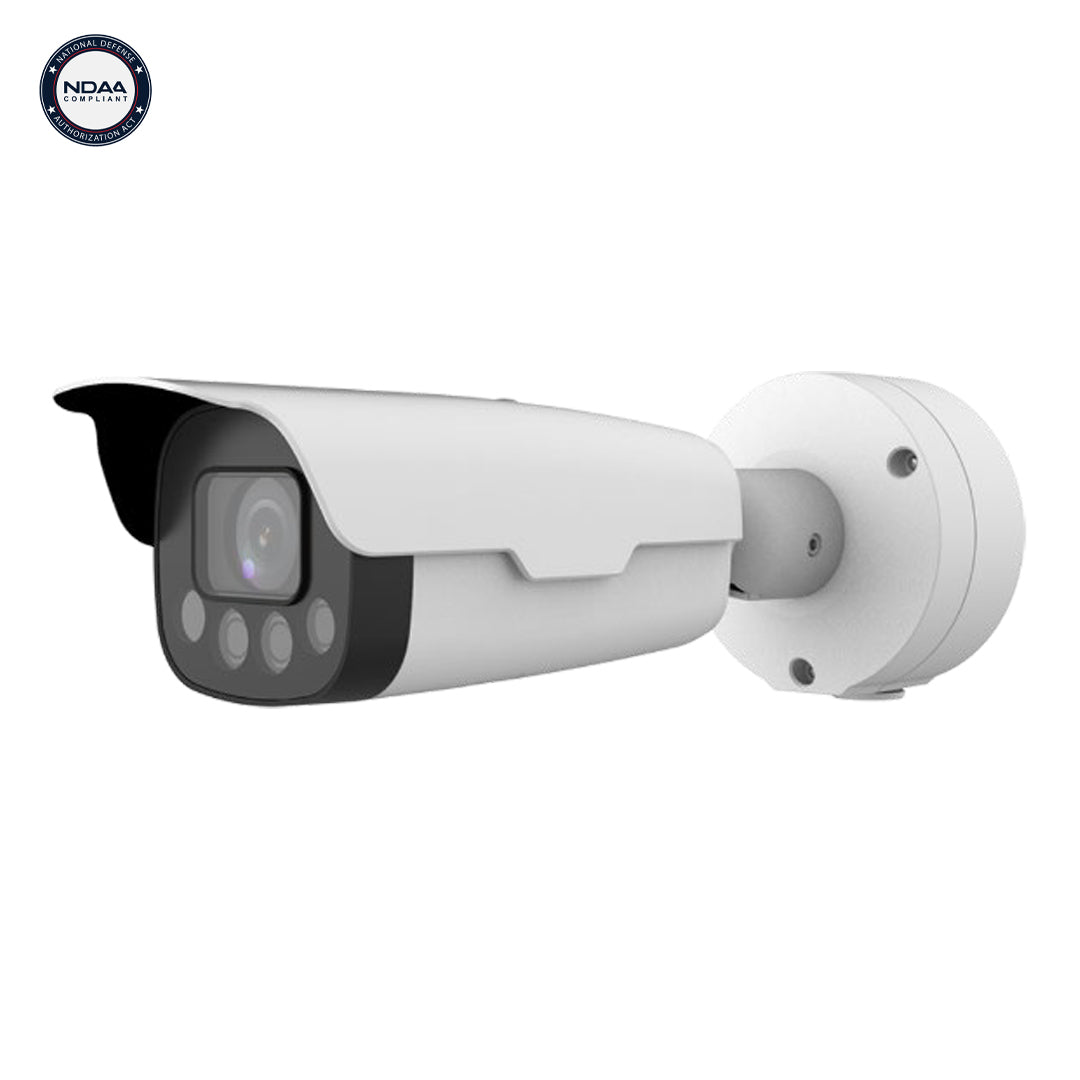

2MP LPR Bullet Camera - Lowlight Color - WDR - IP67
2MP LPR Bullet Camera - Lowlight Color - WDR - IP67

2MP LPR Bullet Camera - Lowlight Color - WDR - IP67

Phantom IP Cameras & RecordersSKU: SC-HC121-TS8CR-Z-NB
Price:
$2,280.00 CAD
Stock:
In stock

Description

Overview

This 2MP license plate recognition bullet camera provides sharp, high definition images in daylight or nighttime color settings to capture the license plates of cars and record them for easy access. The camera has 4.7mm to 47mm motorized zoom lens. Its maximum resolution is 1920*1080 at 60 fps and supports H.265 video compression technology, which assures savings in bandwidth and storage. Its Built-in vehicle & license plate recognition algorithm can recognize standard license plates of multiple countries.

Note: Certain LPR functions is only available when paired with LPR capable NVR.

Features

  • Starlight optical sensor and integrated IR illuminator produce clear images in night environments and reduce light pollution.
  • 4 LED IR illumination beads provide up to 50m illumination.
  • 2MP industrial-grade sensor delivers 1920 x 1080 images.
  • Motorized zoom lens enables flexible focal length adjustment and easy installation.
  • Automatic gain control, white balance, and WDR for various light conditions.
  • Built-in vehicle&license plate recognition algorithm can recognize standard license plates of multiple countries.
  • Supports capturing vehicle head only.
  • Supports allowlist and blocklist configuration.
  • Supports vehicle access control when connected to a barrier.
  • Supports Micro SD cards of up to 128GB.
  • Supports Automatic Network Replenishment (ANR), the camera can automatically store video to its SD card in case of network disconnection.
  • Supports audio acquisition and intercom.



    Application

    The typical application for most security cameras networks is to connect the IP cameras to a NVR/DVR for simplified playback and additional storage space. Alternatively you can use an IP cameras as a standalone camera and not part of a network by connecting it directly to a POE switch and save the recording on a micro SD card.

    NVR Setup


    Standalone Camera Setup

    Specifications

    Camera
    Image Sensor 1/2.8” 2MP CMOS
    Focal length 4.7 to 47mm, motorized zoom
    Minimum Illumination 0.001lux (F1.6)
    Shutter Auto/Manual, range: 1/25 to 1/100000 s
    Smart
    Application scenario

    Vehicle speed ≤30km/h
    Supports simultaneous application to entry/exit scenes
    Vehicle detection mode Video (default) or inductive loop
    Capture vehicle head only

    Support
    License plate number recognition

    Supports recognition of license plates with numbers and letters by default
    List configuration

    Supports allowlist and blocklist configuration, each list allows 20,000 items
    Supports import, export, add, and delete operations
    Barrier opening policy Open barrier only for the recognized vehicles
    Open barrier for all vehicles
    Open barrier only for vehicles on the allowlist
    Open barrier for vehicles not on the blocklist
    Configurable Boolean output ID
    Image collection format 1080P@25 (default), 1080P@30, 1080P@50, 1080P@60
    Resolution Main stream: 1080P (default), 720P, D1
    Sub stream: 720P (default), D1, 2CIF, CIF
    Third stream: D1 (default), 2CIF, CIF
    Frame rate 60, 50, 30, 25 (default), 22, 20, 18, 16, 15, 12.5, 10, 8, 6, 5, 4, 3, 2, 1
    Video compression H.264 (default), H.265
    ROI Supports up to 8 regions
    Video OSD Supports 8 overlay areas and allows contents including date, time, date&time, zoom ratio, custom contents
    Image OSD Supports 8 overlay areas and allows contents including time, license plate number, device ID, camera ID, allowlist, image authentication ID, custom contents (3 items), location
    Structure
    Illumination Built-in integrated illumination module, including 4 IR LEDs, 50m illumination distance, automatic on/off control
    Sunshield Long sunshield
    Bracket 3-axis mounting bracket
    Junction box The camera comes with a junction box for storing tail cable
    Storage
    Edge Storage Supports ANR with a Micro SD card, up to 128GB
    Interface
    Network interface 1 × 10M/100M RJ45
    Serial port 1 × RS485
    Boolean output 1 relay output, withstand voltage: AC 125V/0.3A, DC 30V/1A
    Boolean input 2 inputs, supports level/Boolean, with max level up to DC 5V
    Audio interface 1 × audio input, 1 × audio output
    Storage interface 1 × Micro SD card slot
    General
    Power

    DC 12V±25%,
    PoE (IEEE 802.3at, class 4, IEEE802.3af, Mode B – Pins 4, 5, 7 and 8)
    Max. power consumption: 20W
    Power Interface Ø 5.5mm coaxial power plug
    Dimensions
    (Ø x H)    		 386mm x 126mm x 130mm
    Weight 2.00kg (4.40lb)
    Working Environment -40℃ to 60℃, ≤90% RH
    Ingress protection IP67, IK10
    Certification
    NDAA Compliant Yes

    Downloads

    Quick Start Guide

    User Manual

    Phantom Camview for Android

    Phantom Camview iOS App
    Supports iOS 8.0 or later & requires macOS 11.0 or later and a Mac with the Apple M1 chip or later. Compatible with iPhone, iPad, iPod touch and Mac.

    PhantomCamTools Windows app

    PhantomCamStation Windows app to set up cameras
