2MP Dome TVI, CVI, AHD, CVBS Camera - 2.8mm Fixed Lens - Ultra Lowlight IR with 30m Range - IP67 Rated

Analog Cameras & RecordersSKU: CA-AC334-OD-2WH

Color: White
Price:
Sale price$92.55 CAD
Stock:
In stock

Description

Overview

This 2MP indoor/outdoor, TVI based dome camera provides a sharp, high definition images in daylight or nighttime settings. The camera has a 2.8mm fixed lens which delivers a 106° horizontal field of view. Its maximum resolution is 1080p at 30 fps NTSC. Using TurboHD technology, the high definition video analog signal can be sent over existing coaxial cable, eliminating the need to run new cables. Its housing is IP67 rated for outdoor use and has 100 feet of night vision using Ultra-Low Light EXIR technology for high definition analog output.

Features

  • 2 Megapixel high-performance CMOS
  • Analog HD output, up to 1080p resolution
  • Ultra-Low Light
  • EXIR 2.0 up to 100 ft (30 m) IR Range
  • Smart IR
  • Multiprotocol output: TVI/AHD/CVI/CVBS
  • IP67 outdoor rated
  • OSD menu
  • 120dB True WDR, 3D DNR
  • 12 VDC


Application

Note: Dome cameras are best suited for indoor applications or outdoor applications which are sheltered from direct sunlight and any other adjusted light sources, as the curvature of the dome can cause reflections and glares on the camera lens. Turret cameras are best suited for outdoor applications which are directly exposed to the elements.


Specifications

Camera
Image Sensor 2 MP CMOS image sensor
Signal System NTSC
Frame Rate 1080p@30fps
Resolution 1920 (H) x 1080 (V)
Minimum Illumination Color: 0.005 lux @ (f/1.2, AGC on), 0 lux with IR
Shutter Time 1/30 s to 1/50,000s
Lens 2.8mm
Horizontal Field of View
106°
Day & Night IR cut filter
Lens Mount M12
Angle Adjustment Pan: 0° to 340°, tilt: 0° to 75°, rotate: 0° to 360°
Synchronization Internal synchronization
WDR (Wide Dynamic Range)
>120 dB
Menu
AGC Low/middle/high
WDR Yes
Day and Night Mode Smart/color/BW(Black and White)
Image Mode Standard/high-sat
3D DNR
Level 1 to 9
Backlight Compensation Yes
Language English
Functions Brightness, sharpness, 3D DNR, mirror, smart IR
Interface

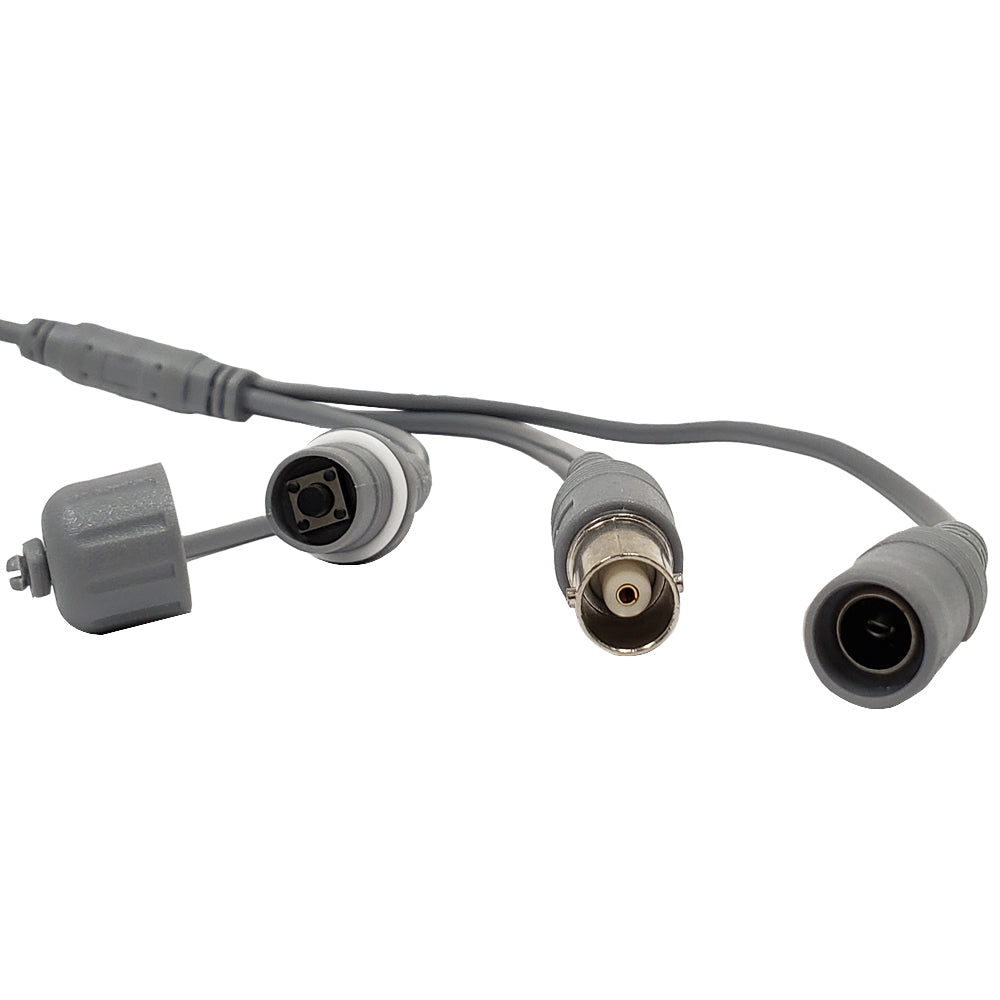

Video Output 1 HD analog output
Switch Button TVI/AHD/CVI/CVBS
General
Operating Conditions -40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
Power Supply 12 VDC ± 20%
Power Consumption Max. 4.6 W
Ingress Protection IP67, IK10
Material Metal
IR Range Up to 100 ft (30 m)
Dimensions Φ111 × 82.4(Φ4.37” × 3.24”)
Weight Approximately 1.07 lbs (487 g)
Approvals
c(UL)us Yes
CE Yes
FCC Yes
ONVIF Yes

Compatible Mounts

CA-B2100-WH Wall Mounting Bracket with Junction Box for Turret Cameras - White
CA-DS-1273ZJ-130-TRL-WH Wall Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-WH Junction Box Mounting Bracket for Turret Cameras - White
CA-DS-1280ZJ-DM8-GY Junction Box Mounting Bracket for Turret Cameras - Grey
CA-DS-1272ZJ-110-TRS-WH Wall Mounting Bracket for Turret Camera - White

Compatible Baluns

VE-BNC-006 BNC Passive Video Extender - RJ45 (1000ft)
VE-BNC-009 BNC Balun - 1000ft Passive Video Extender - Push Button
VE-BNC-010 BNC Balun - 1000ft Passive Video Extender - Screw Down
VE-BNC-011 BNC + Power Balun - 1000ft Passive Video Extender - RJ45

Compatible DC Power Supplies

PDC-12V1A-01 DC Power Supply - Input 120V ~ 240V - Output 12V 1A - c(UL)us
PDC-12V5A-04 DC Power Supply 4CH - Input 120V ~ 240V - Output 12V 5A - c(UL)us
PDC-12V10A-09 DC Power Supply 9CH - Input 120V ~ 240V - Output 12V 10A - c(UL)us
PDC-12V18A-18 DC Power Supply 18CH - Input 120V ~ 240V - Output 12V 18A - c(UL)us

Compatible DC Power Connectors

CN-DCM-S DC Power Connector Male 2.1mm x 5.5mm Screw Down
CN-DCM DC Power Connector Male 2.1mm x 5.5mm Plastic Shell
CN-DCM-8IN DC Power Connector Male 2.1mm x 5.5mm (8 inch Pigtail, 22AWG)

Compatible BNC Connectors

CN-CBNCM-59-10 BNC Male Compression Connector for RG59 - Pack of 10
CN-CBNCM-59-10PL BNC Male Compression Connector for RG59 Plenum - Pack of 10
CN-30-734A BNC Male Crimp Connector for RG59 (734A)
CN-30-RG59P BNC Male Crimp Connector for RG59 Plenum Cable
CN-30-S BNC Male Screw Down Connector, 75 Ohm
CN-TBNC-59 BNC Male Twist-On Connector for RG59
