Description

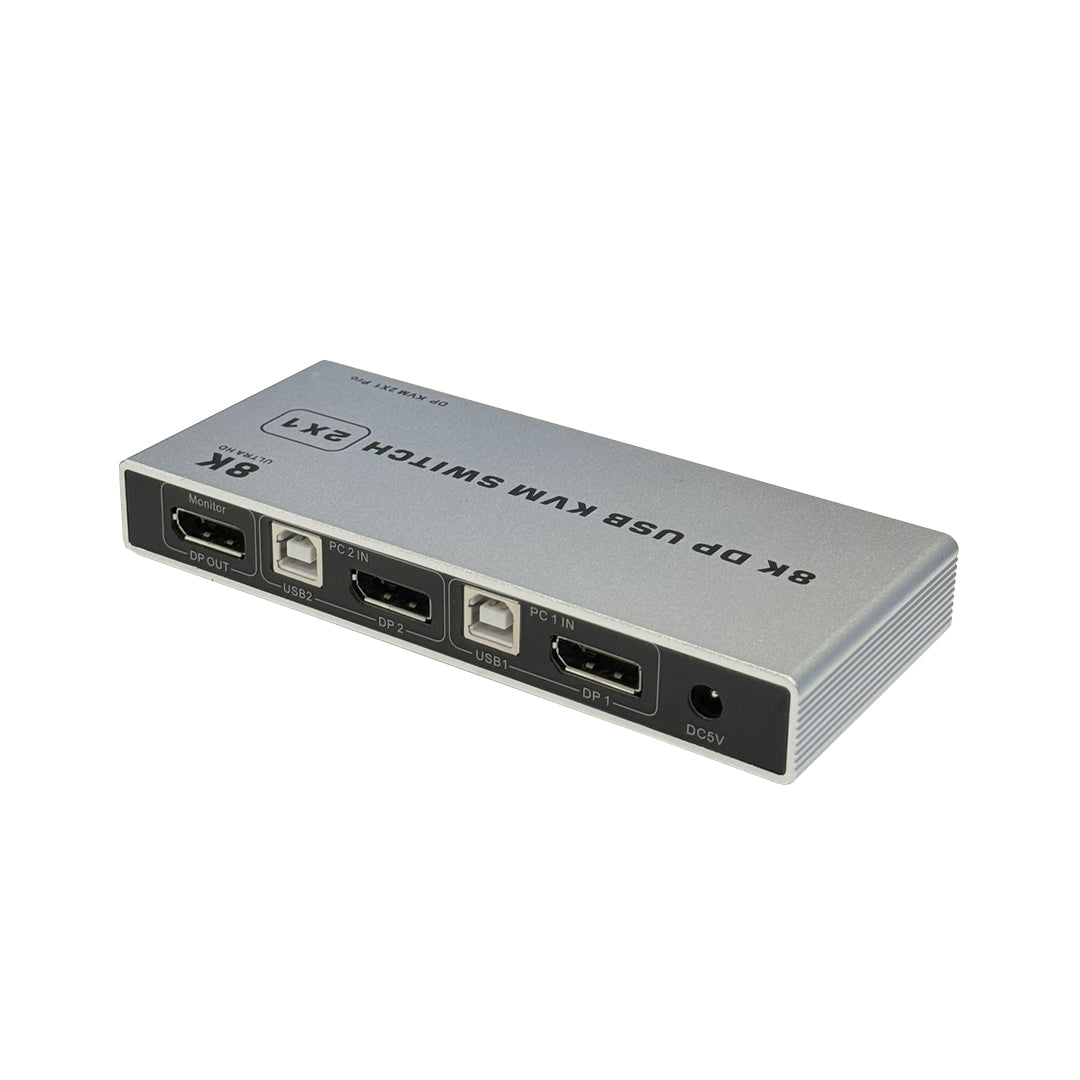

This KVM switch enables you to control two PCs with one USB keyboard, USB mouse and DisplayPort monitor.
- Easy to install - No software required
- Supports video quality up to 7680 x 4320@60Hz
- Supports full UHD 120Hz 3D stereo display, high frame rate 240FPS,120FPS
- Automatically identify and configure various display modes
- Built-in automatic equalization system for smooth, clear and stable picture
- Built-in ESD static protection circuit to protect the system
- Support keyboard hot keys to control switch
- Hot Pluggable
| Physical Characteristics | |
|---|---|
| Housing | Metal Enclosure |
| Operating Temperature | -5℃ to +70℃ |
| Humidity | 5-90% RH |
| Power Supply | DC 5V |
| Power Dissipation | Max. 2W |
| Dimensions | 146 x 61.5 x 20mm (L x W x H) |
| Connector(s) | |
| KVM Port |
2 x USB B-Type |
| Console Port | 4 x USB A-Type (Keyboard/Mouse) 1 x Extend Switch (Controller) |
| Performance | |
| Video Resolution | Up to 7680 x 4320@60Hz Supports Full HD 120Hz 3D stereo display |
| Frame Rate | Up to 240FPS |
| Data Rate | 8K Up to 8.1Gbps 4K Up to 5.4Gbps |
| Impendence | 100Ω |
| Display Port Range |
<3M : 4K |
| Operating Systems | Windows 95/98/2000/2006/NT/XP/WIN7/WIN8/WIN10/WIN11, Linux, MACOS |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| c(ETL)us | Power Adapter |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.08 lbs |
| Contents | |
| Included in Package | 1 - KVM Switch |

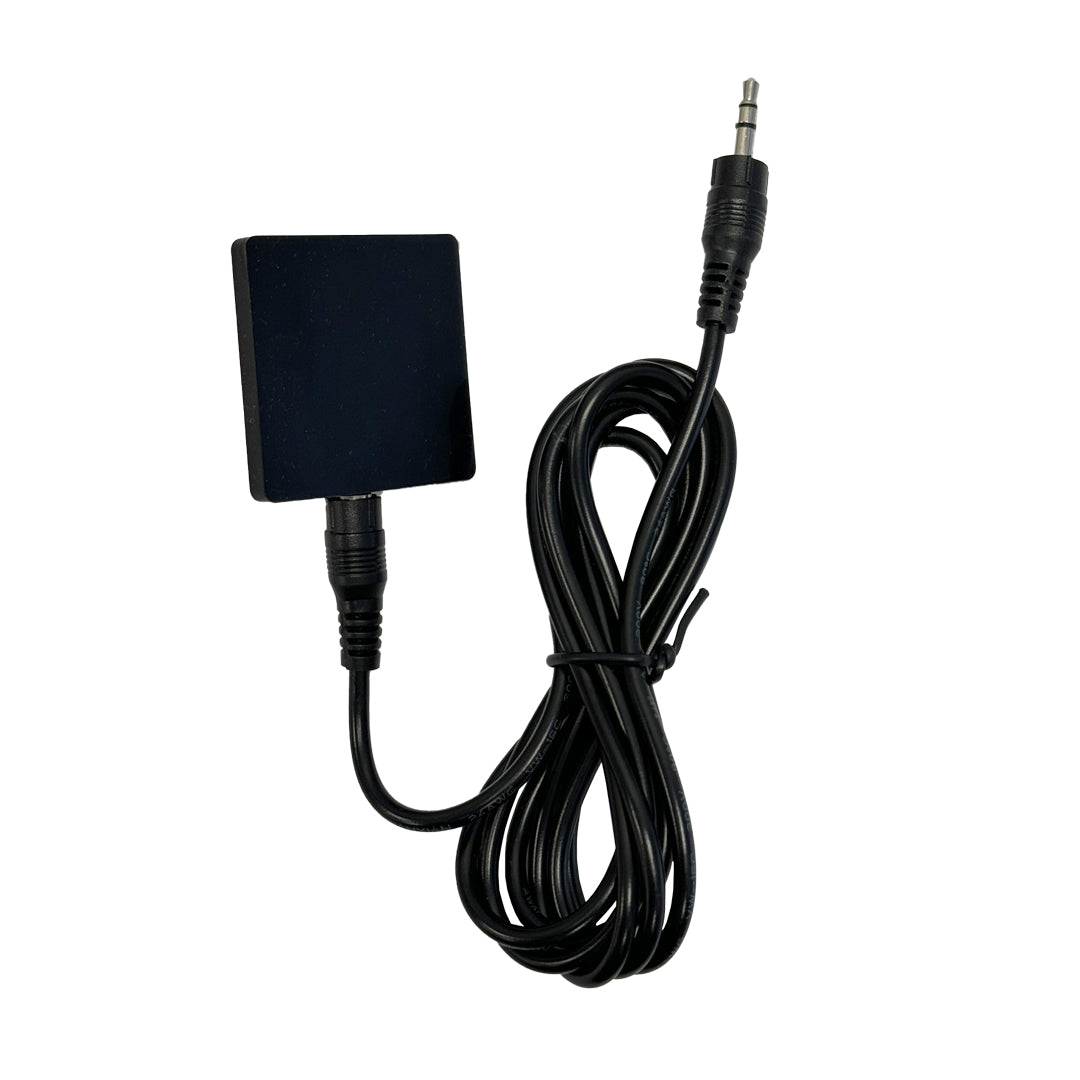

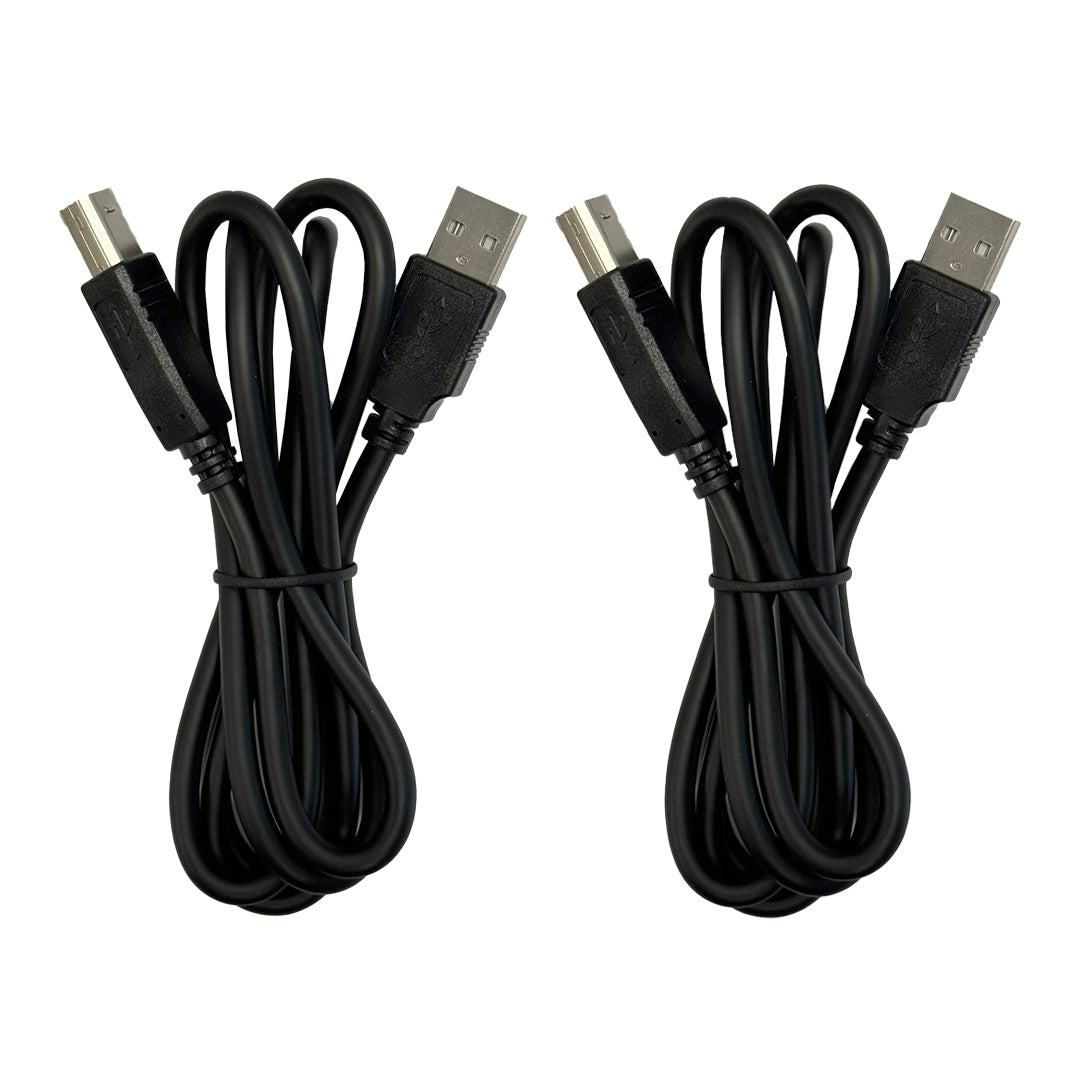

| 2 - USB Type A to Type B 1 - Extend Switch Controller |
|

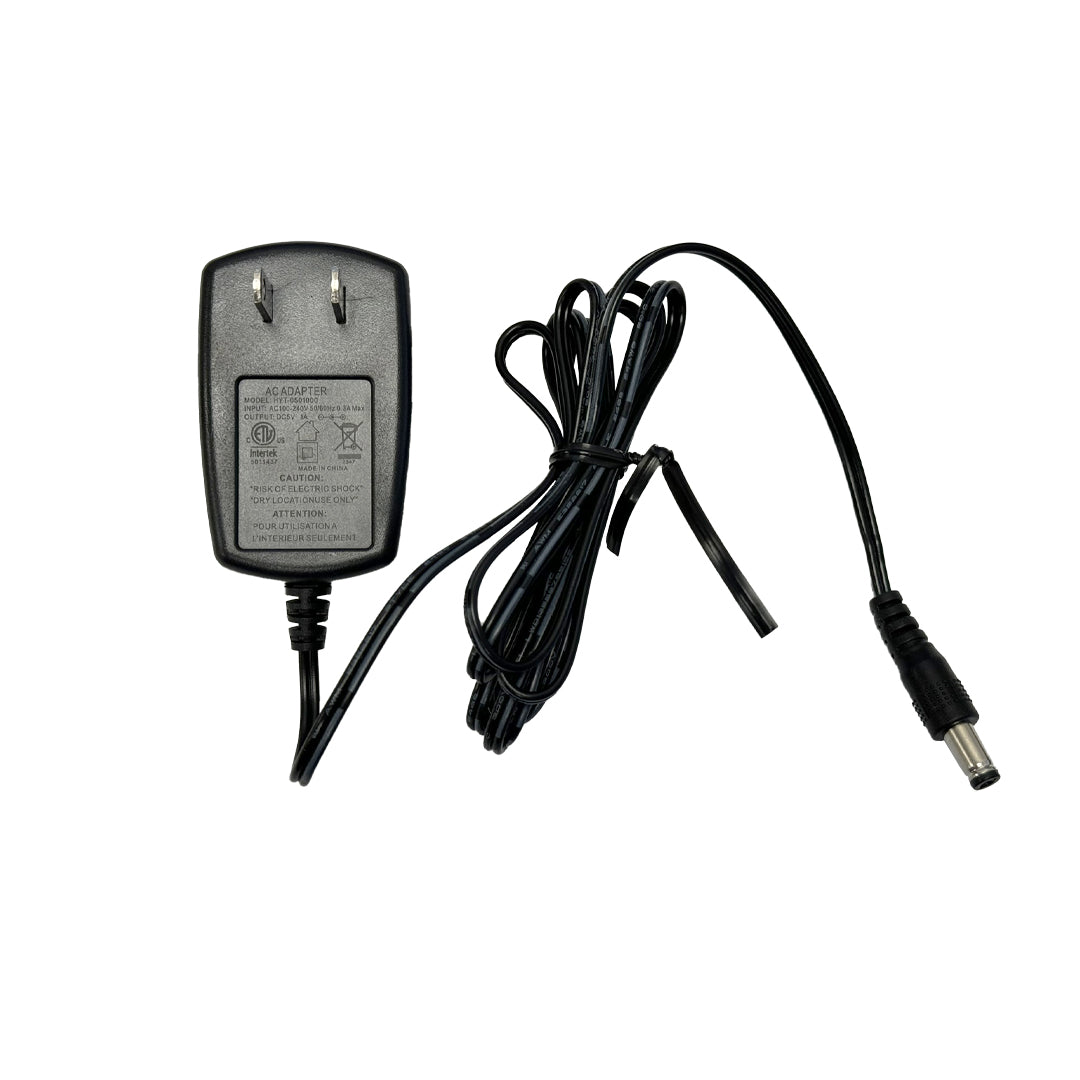

| 1 - DC 5V Power Adapter | |
| 1 - User Manual | |
