Description

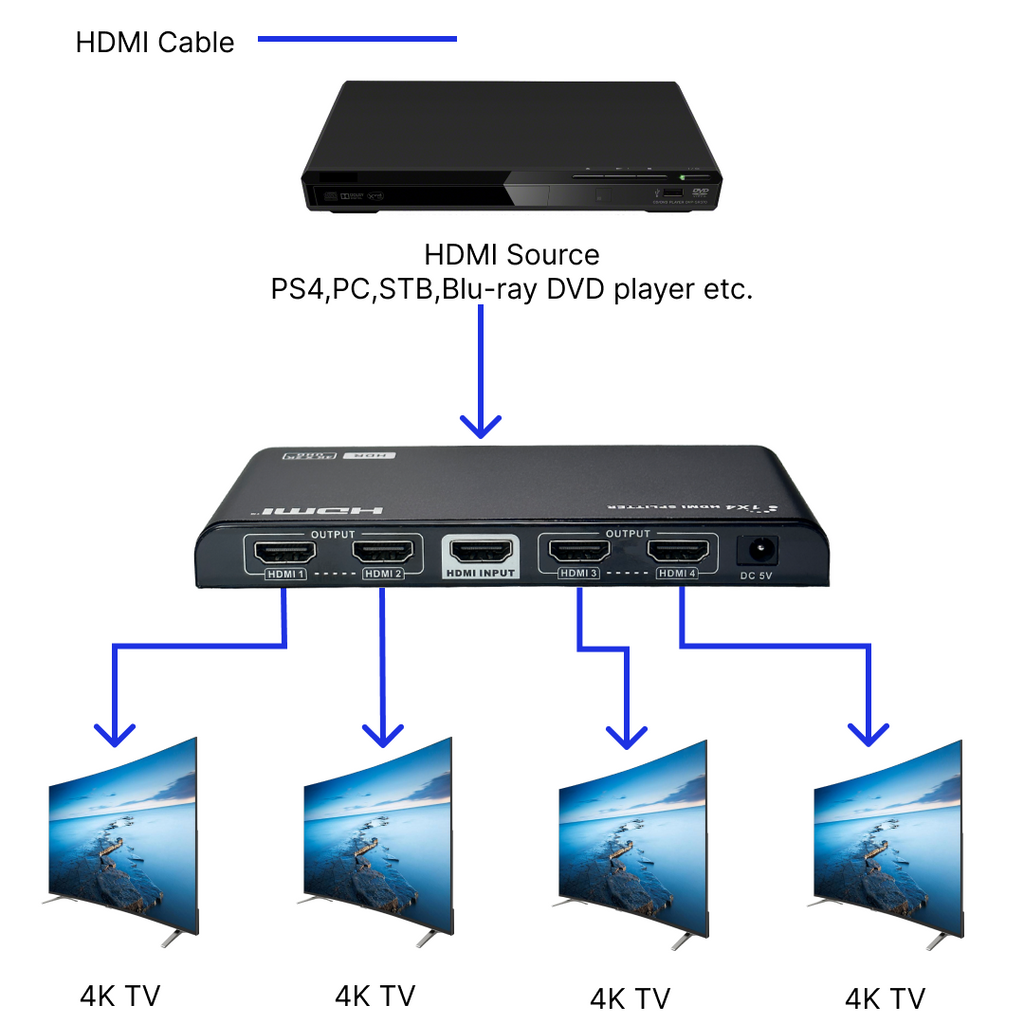

This 1x4 HDMI splitter enables you to display one HDMI device to four HDMI displays simultaneous. It is typically used to connect a HDMI source such as DVD player, Blu-ray player, satellite receiver or gaming system to HDMI displays such as HDTVs, HD projectors or HDMI monitors. The splitter performs at HDMI 2.0 resolutions - 4K at 60Hz with 4:4:4 chroma subsampling and a transmit bandwidth up to 18Gbps. It also supports HDCP 2.2 and is backward compatible with 4K 30Hz and 1080p displays.
| Physical Characteristics | |
|---|---|
| Input Voltage | 240V |

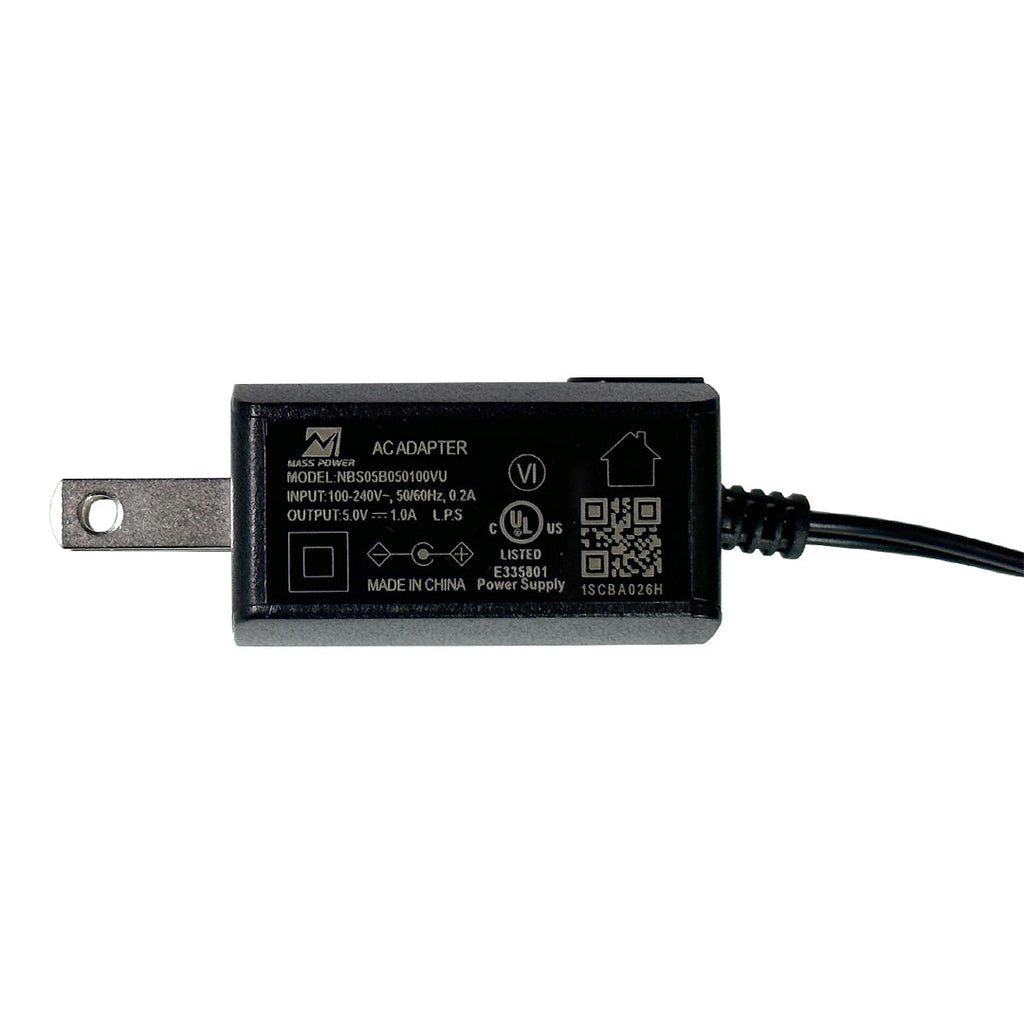

| Power Supply | 5V/1A DC |
| Power Consumption | <3W |
| Compatibility | |
| PC to Monitor | Yes |
| PC to TV | Yes |
| DVD to Monitor | Yes |
| DVD to TV | Yes |
| Connector(s) | |
| Input | 1 x HDMI Female |
| Output | 4 x HDMI Female |
| Performance | |
| HDMI Resolution | Compatible with HDMI1.4,HDMI2.0 |
| HDMI Version | Compatible with HDMI1.4,HDMI2.0 |
| 3D Video | Yes |
| HDCP Compliant | Yes, Supports HDCP2.2/1.4 |
| HDR Support | Yes |
| Audio | Support standard audio and DSDï1/4ˆDirect Stream Digital) and HD(HBR) audio |
| Transmission Rate | 18Gbps |
| Frequency Range | 25MHz~594MHz |
| Input and output TMDS signal | 0.7~1.2Vp-p(TMDS) |
| Input and output DDC signal | 5Vp-p(TTL) |
| EDID management | Support smart EDID management, available to display different resolution monitors at the same time |
| Approvals | |
| Power Adapter | c(UL)us |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Included in Package | 1 - HDMI Splitter |
| 1 - DC5V Power Adapter | |
| 1 - Manual | |
Spec Sheets
Download attachment - Spec Sheet
Download attachment - User Manual
EDID Settings
| Switch Status | 1 | 2 | 3 | 4 | EDID information |
|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 4K@60Hz 2CH | |
| 1 | 0 | 0 | 0 | 4K@60Hz 7.1CH | |
| 0 | 1 | 0 | 0 | 4K@30Hz 2CH | |
| 1 | 1 | 0 | 0 | 4K@60Hz 7.1CH | |
| 0 | 0 | 1 | 0 | 1080p@60Hz 2CH | |
| 1 | 0 | 1 | 0 | 1080p@60Hz 7.1CH | |
| 0 | 1 | 1 | 0 | 1080i@60Hz 2CH | |
| 1 | 1 | 1 | 0 | 1080i@60Hz 7.1CH | |
| 0 | 0 | 0 | 1 | 1080p@50Hz 2CH | |
| 1 | 0 | 0 | 1 | 1080p@50Hz 7.1CH | |
| 0 | 0 | 1 | 0 | 1080p@60Hz 2CH | |
| 0 | 1 | 0 | 1 | 4K@30Hz HDR | |
| 1 | 1 | 0 | 1 | 4K@60Hz HDR | |
| 0 | 0 | 1 | 1 | Copy once (Read the EDID of the first connected output only) | |
| 1 | 0 | 1 | 1 | MIX1 (Lowest format of audio, and lowest format of video) | |
| 0 | 1 | 1 | 1 | MIX2 (Highest format of audio, and Highest format of video) | |
| 1 | 1 | 1 | 1 | MIX3 (Lowest format of audio, and compose down scaling of video) |
[NOTE]
Switch up for "1"
Switch down for "0"
Power cycle the unit after EDID changes
