Description

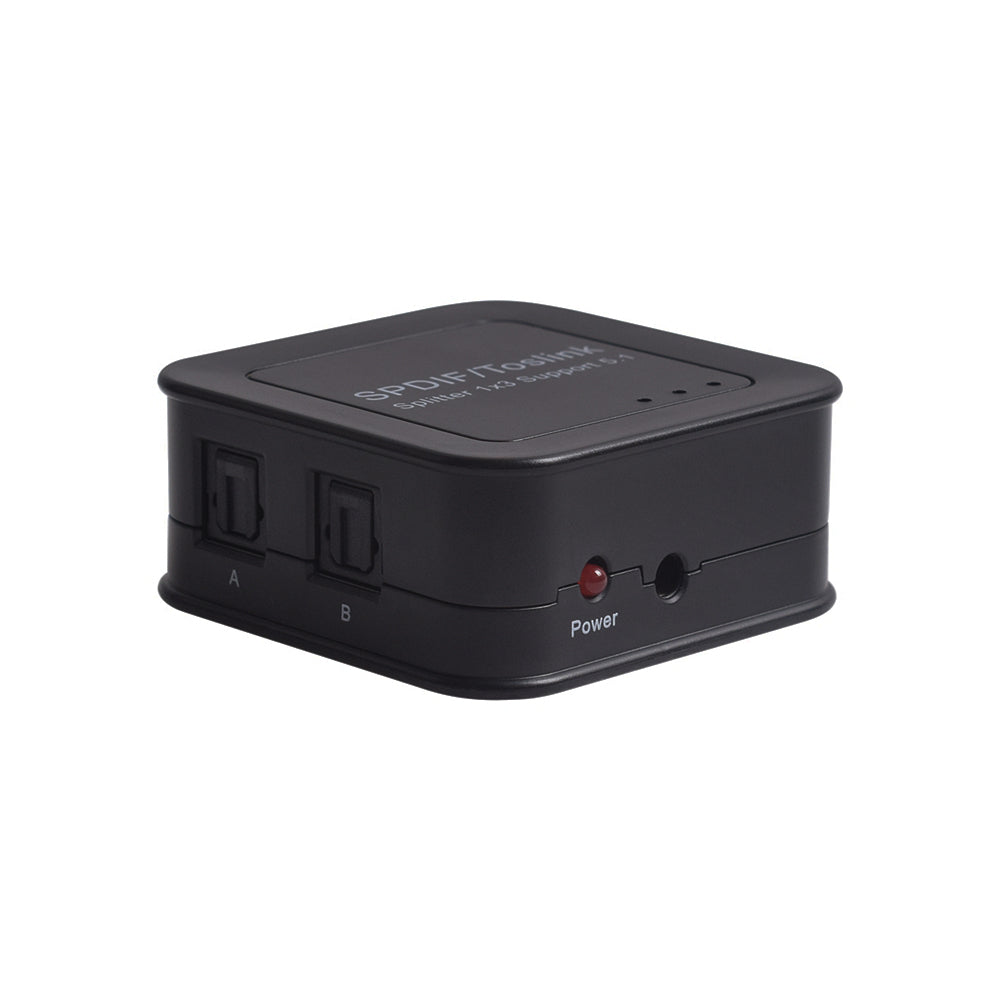

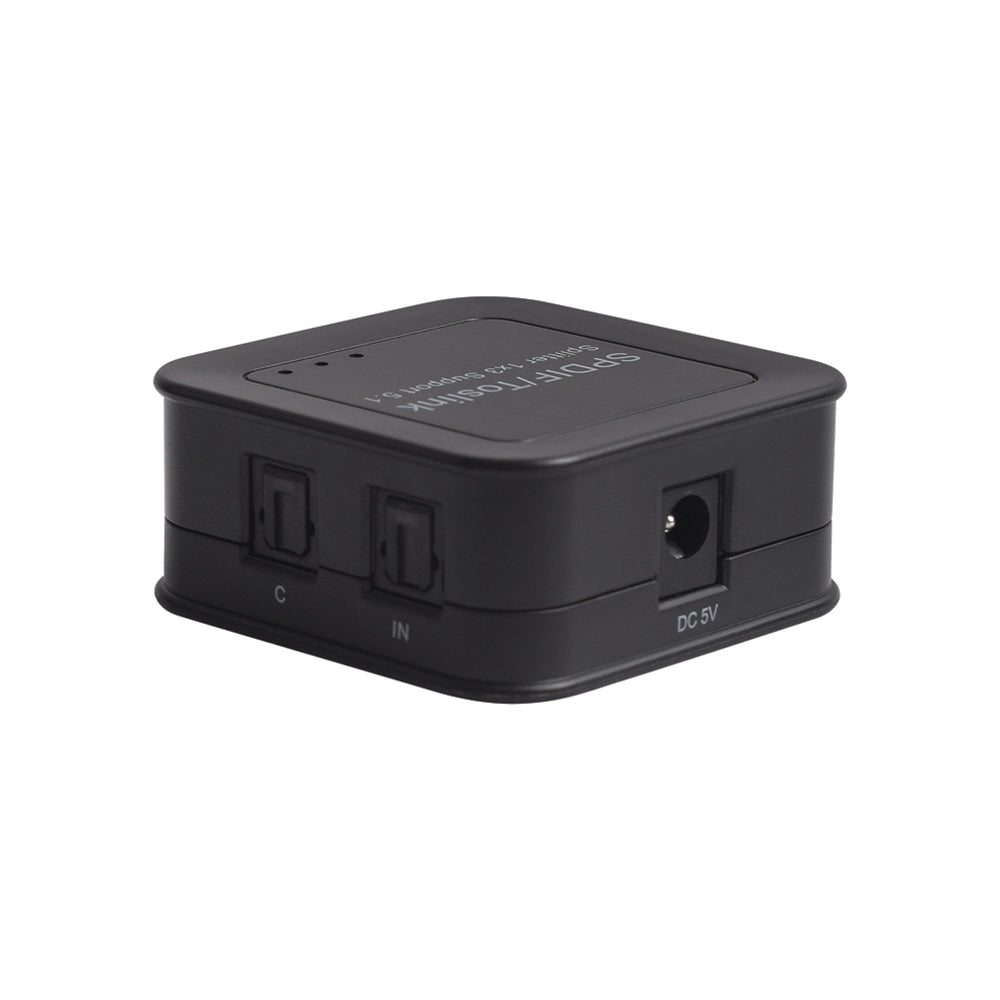

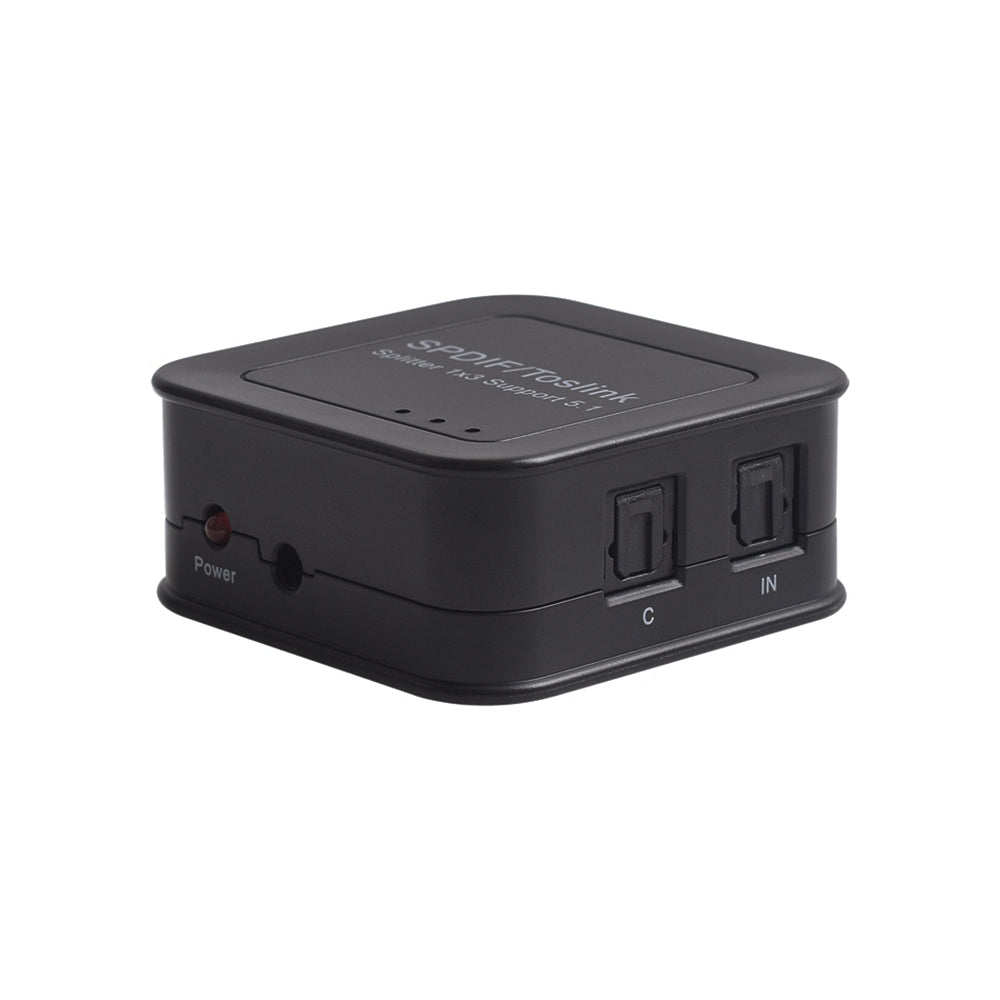

This 1x3 Toslink/Optical audio splitter connects and distributes one digital optical SPDIF Toslink source to three amplifiers.
Features
- One way of optical fiber signal input splitter to three sets of SPDIF/Toslink signal receiving device
- Audio format support: LPCM2.0/DTS/Dolby-AC3
- Support signal retiming
- Used optical fiber cable loss less the 0.2Db/m, Output distance is up to 40m
- Over-voltage protection can prevent the damage caused by connecting unmatched power adapter to the machine
- No loss of quality
- Installs in minutes
- Needs DC5V/500mA power supply
|
Physical Characteristics
|
|
|---|---|
| Color | Black |
| Housing | Plastic |
| Dimensions (L x W x H) | 54 x 54 x 23.5mm |
| Operating Temperature | 0 to +40 degree C |
| Operating Humidity Range | 5 to 90%RH (No Condensation) |
|
Power
|
|
| Power Adapter Format (Not included) |
Input: AC (50HZ, 60HZ) 100V-240V Output: DC5V/500mA |
| Max Working Current | 100mA |
| Power Barrel Size | 5.5 x 2.1mm |
|
Performance
|
|
| Supported Audio Format | LPCM2.0/DTS/Dolby-AC3 |
| Peak Wavelength | 650nm |
| Max Baud Rate | 16Mbps |
| Output Cable Distance | ?40m (Use the optical fiber cable loss less the 0.2Db/m) |
|
Environmental
|
|
| RoHS | Yes |
|
Certification(s)
|
|
| CE | Yes |
| FCC | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.07 lbs [0.03kg] |
|
Contents
|
|

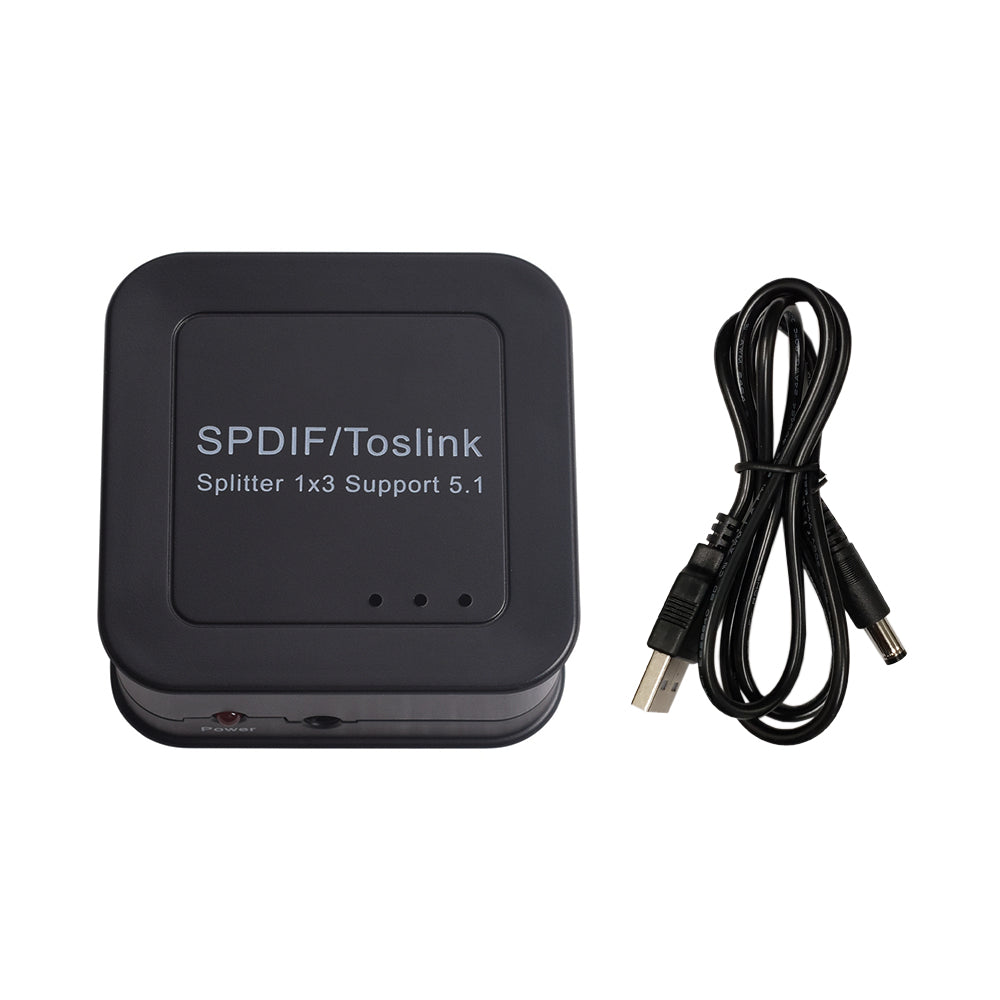

| Included in Package | 1 - Toslink/Optical Digital Audio Splitter |
| 1 - USB Power Cable | |
| 1 - Manual | |
