Description

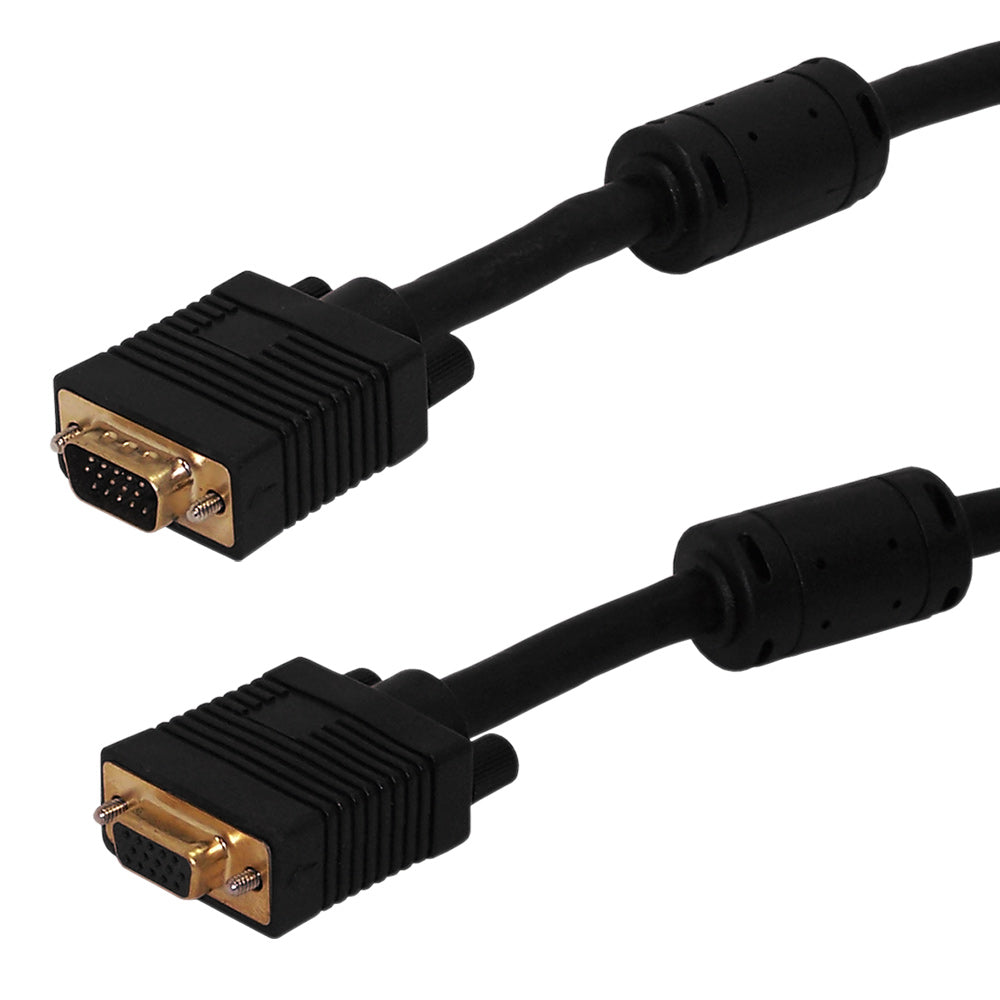

This SVGA/UXGA cable consists of a HD15 VGA male on one end and a HD15 VGA female on the other end. It is typically used to connect VGA ouputs such as computers/laptops to VGA inputs such as monitors/projectors.
|
Physical Characteristics
|
|
|---|---|
| Cable Length | 1 foot [0.3m] |
| Color | Black |
| Connector Plating | Gold |
| Wire Gauge - Coax | 3 - 28AWG Mini-Coax |
| Wire Gauge - Conducters | 5 - 24AWG Pairs, 2 - 24AWG Conductors |
| Cable Diameter | 9.0 mm |
| Shielding | 85% Copper Braid, 100% Mylar Foil, Ferrite Cores |
| Jacket Fire Rating | CL2/FT4 |
| Jacket Material | PVC |
| Strain Relief | Molded PVC |
|
Connector(s)
|
|
| Connector A | SVGA HD15 Male |
| Connector B | SVGA HD15 Female |
|
Performance
|
|
| Resolution | 1600 x 1200px |
| Impedance | 75 ohm |
|
Approvals
|
|
| cUL | Approved Cable |
|
Environmental
|
|
| RoHS | Yes |
| Reach | Yes |
|
Packaging Information
|
|
| Package Quantity | 1 |
| Product Weight | 0.37 lbs [0.16kg] |
|
Contents
|
|
| Included in Package | 1 - Cable |
|
Warranty Information
|
|
| Warranty | Limited Lifetime |
