Description

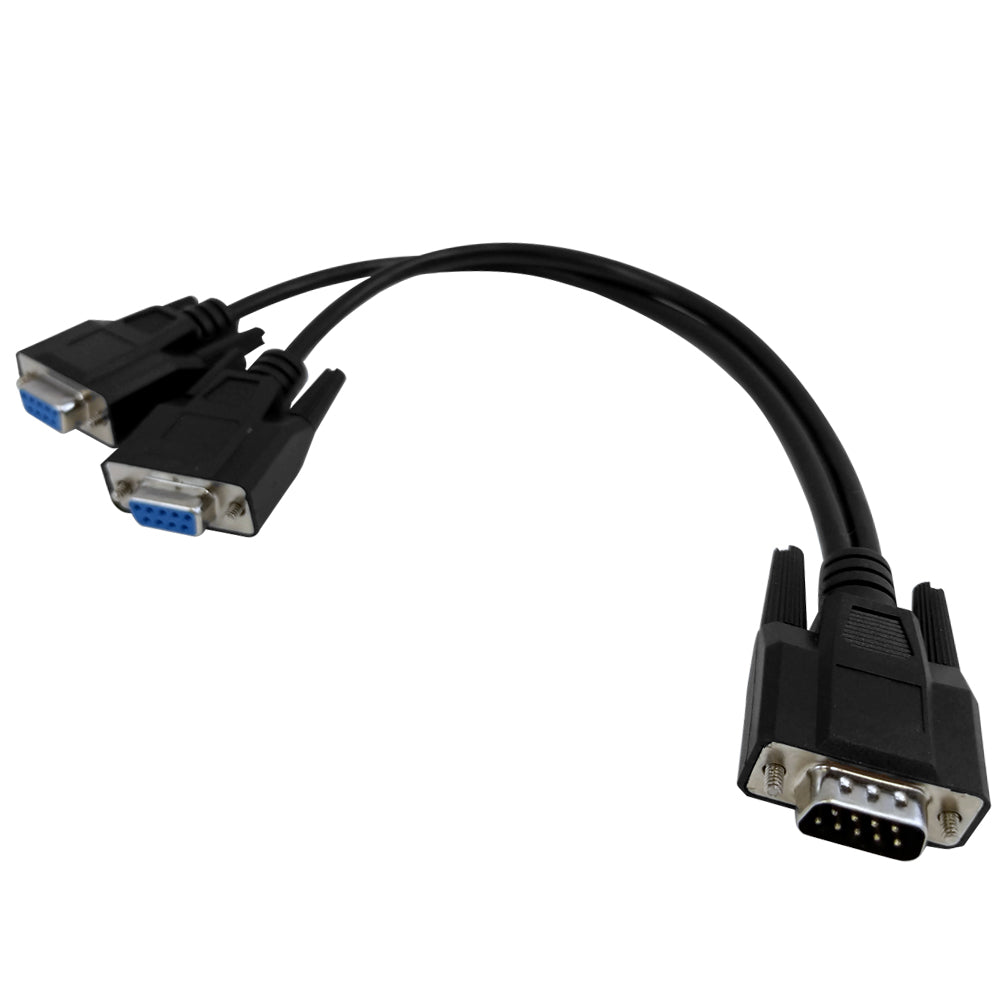

This DB9 serial cable consists of a DB9 male on one and two DB9 female on the other. It is commonly used in serial RS-232 data applications.
| Physical Characteristics | ||
|---|---|---|
| Cable Length | 1 foot [0.3m] | |
| Color | Grey/Black | |
| Number of Conductors | 9 Conductors | |
| Wire Gauge | 28AWG Stranded | |
| Jacket Material | PVC - Polyvinyl Chloride | |
| Cable Shielding | 100% Aluminum Mylar Foil Shield | |
| Connectors | ||
| Connector A | DB9 Male | |
| Connector B | 2 x DB9 Female | |
| Pin Out | ||
| 2 x DB9 Female - DB9 Male | ||
| 1 - 1 | ||
| 2 - 2 | ||
| 3 - 3 | ||
| 4 - 4 | ||
| 5 - 5 | ||
| 6 - 6 | ||
| 7 - 7 | ||
| 8 - 8 | ||
| 9 - 9 | ||
| Shell - Shell | ||
| Environmental | ||
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.3 lbs [0.1kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
