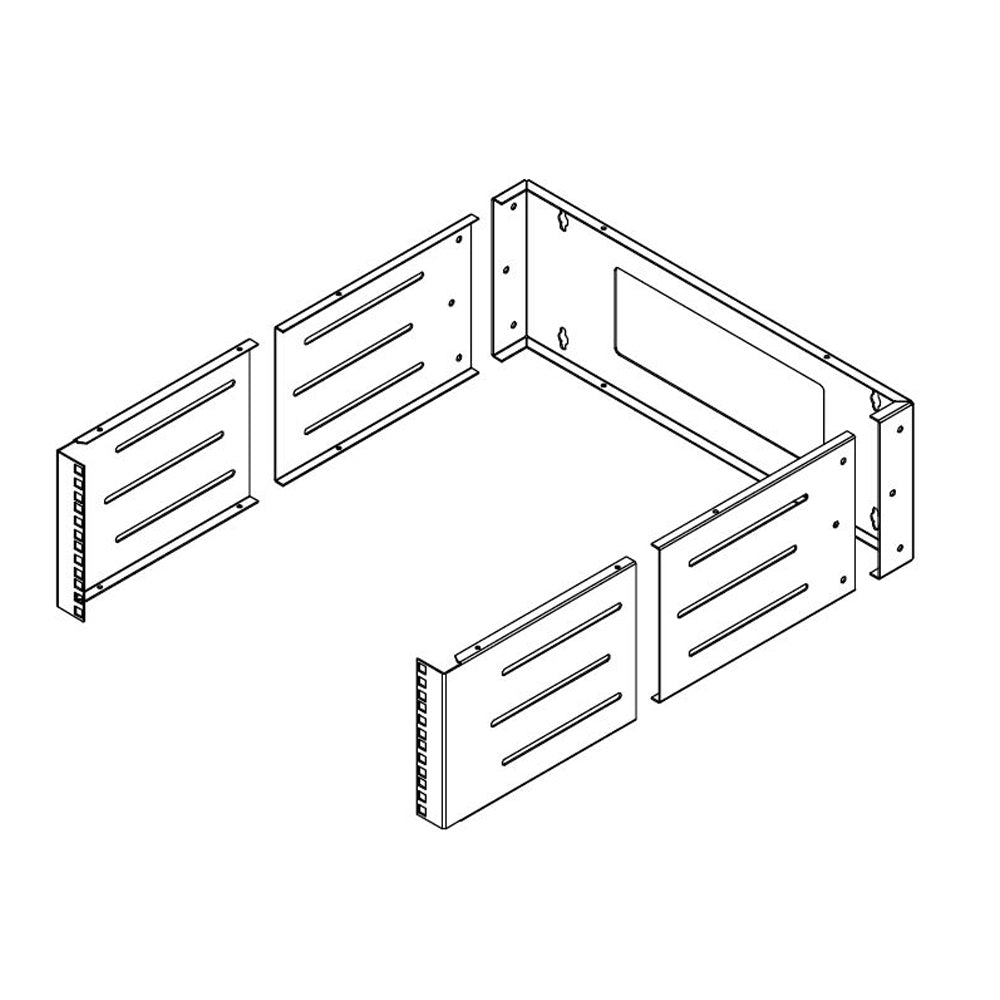

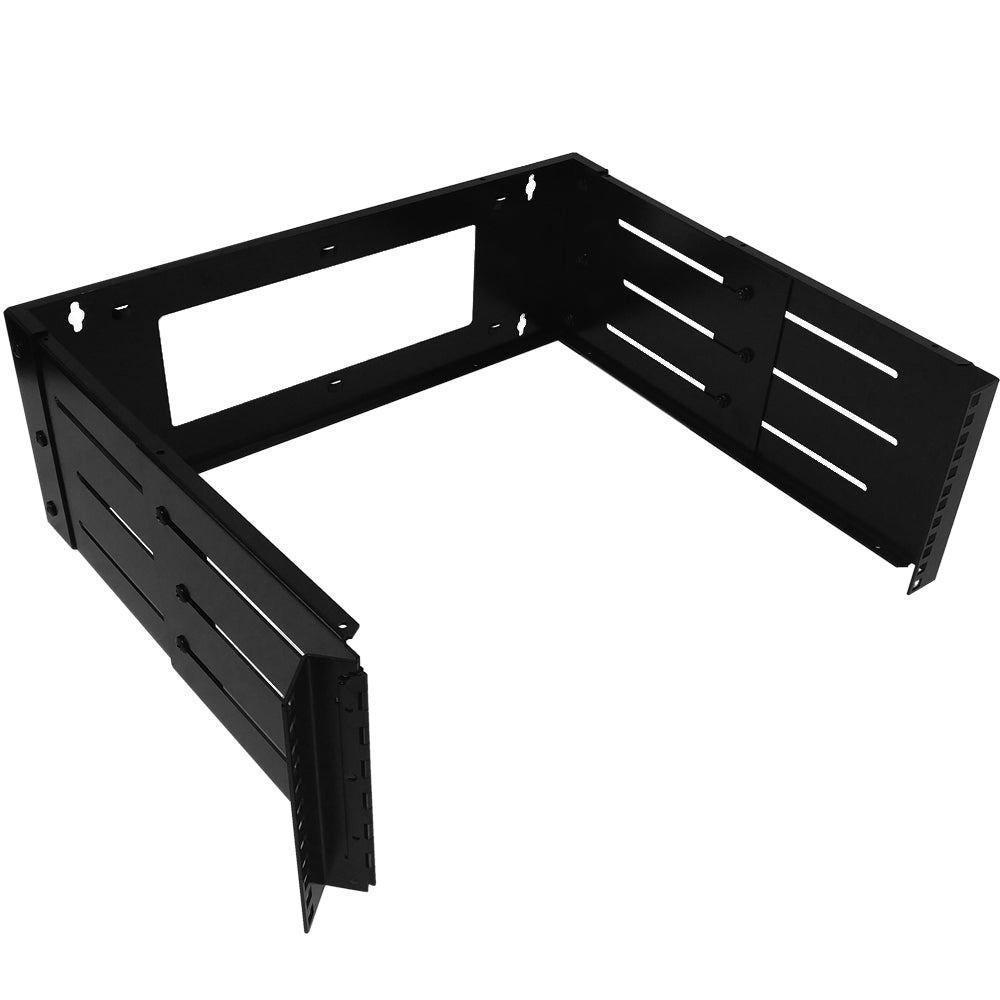

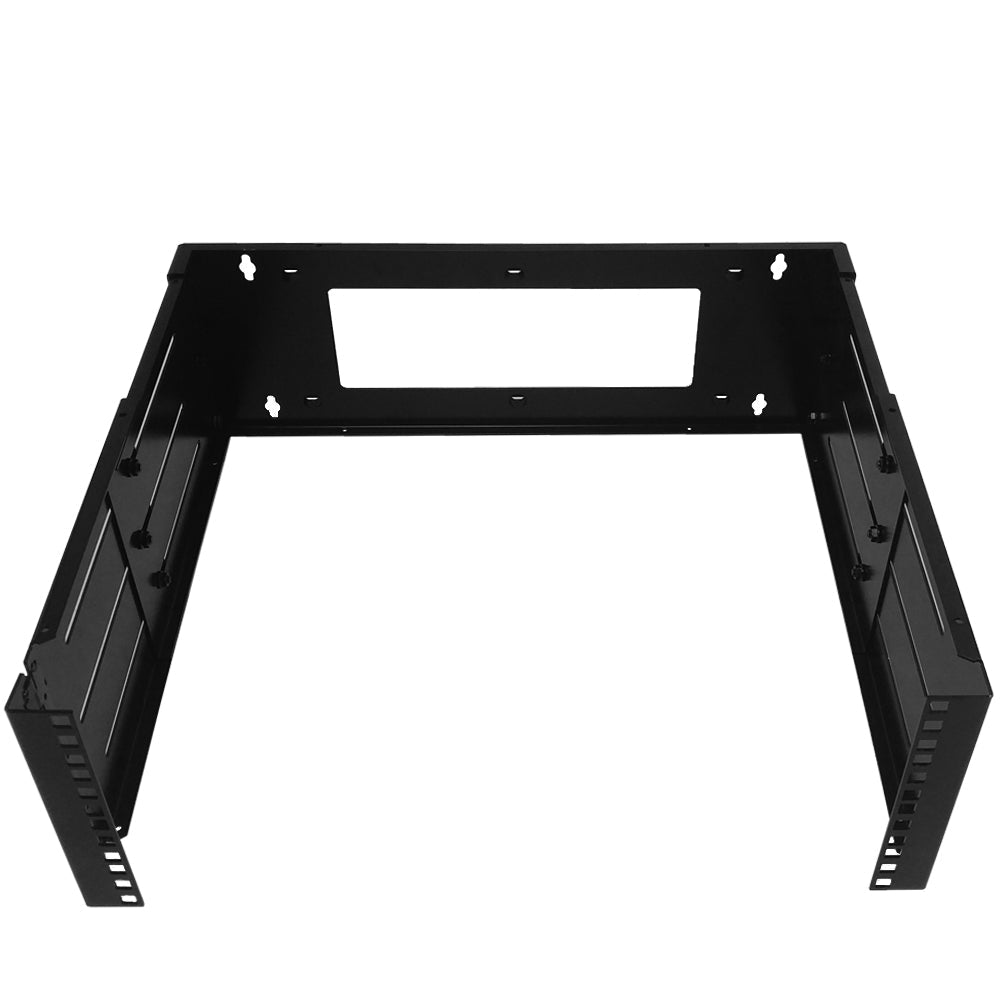

This wall mount bracket is 4U in height and adjustable from 12 to 18 inches in depth. It is used for mounting 19" wide networking equipment.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Finish | Powder Painted |
| Material | 2.0mmSPCC Cold Rolled Steel |
| Height in units | 4U |
| Height in inches | 7.24 inches [184mm] |
| Rail Mounting Style | Square Hole Punched Rails |
| Rail Thickness | 2.15mm |
| Overall Dimensions | 7.24H x 20.5W x 18D Inches |
| Rear Wire Access Hole | 1 (11.8 x 3.9 inches) |
| Mounting Depth | 12 inches ~ 18 inches (Adjustable) |
| Load Capacity |
70 lbs (32kg) |
| Cable Management | Tie Point Notches |
| Wall Mounting Hardware |
Not Included |
| Equipment Mounting Hardware |
Included |
| Approvals | |
| ANSI/EIA | Yes |
| RS-310-D | Yes |
| IEC60297-2 | Yes |
| DIN41494 | Yes |
| PART1 | Yes |
| PART7 | Yes |
| Environmental | |
| RoHS | Yes |
| Reach | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 10.3 lbs [4.7kg] |
| Contents | |
| Included in Package | 1 - Wall Mount Bracket (Un-Assembled, Flat Packed) |
| 10 - M6 Screws |
|
| 10 - M6 Cage Nuts |
|
