Description
Overview

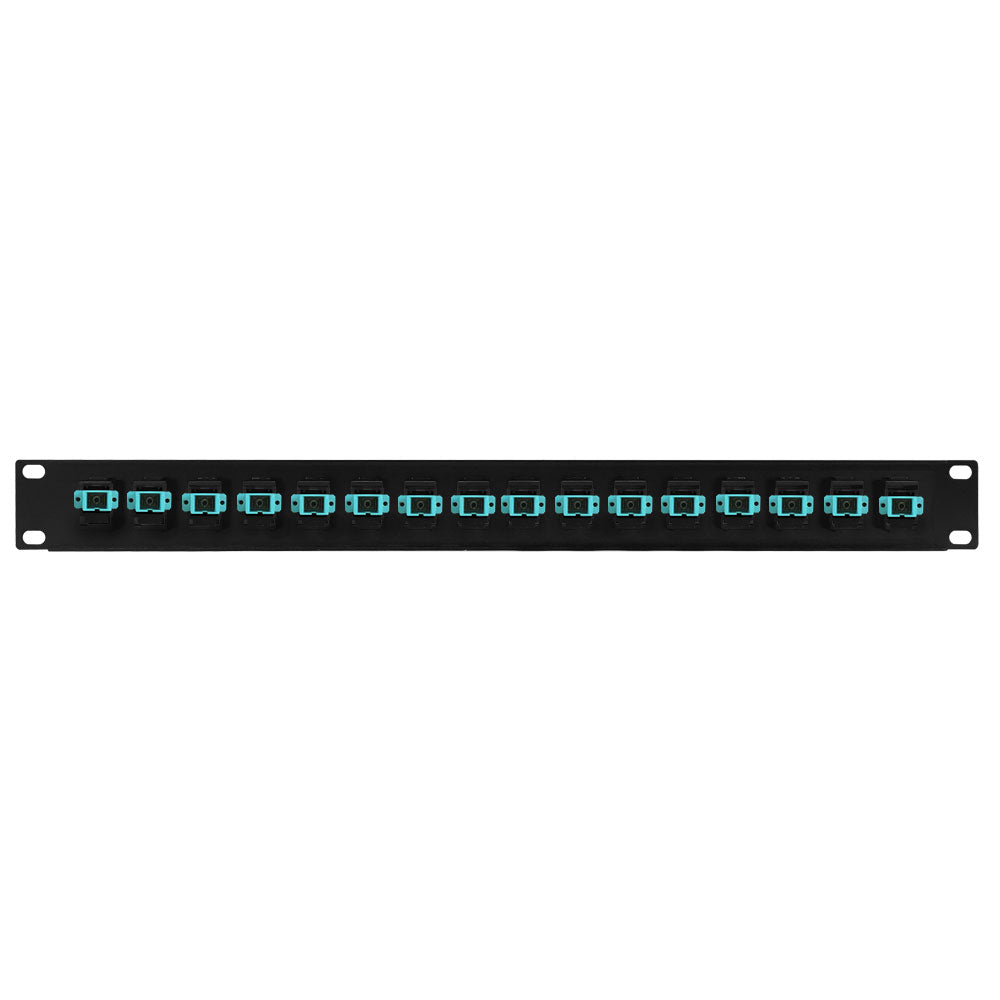

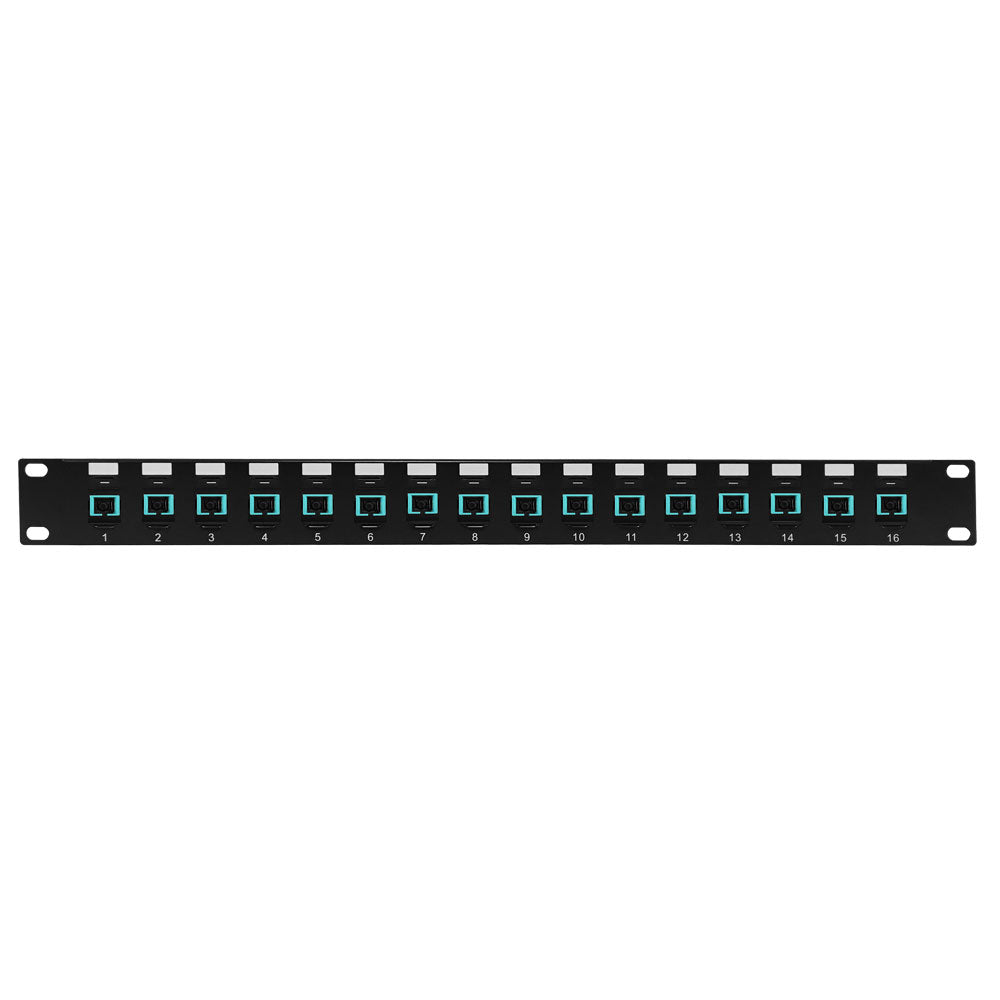

This 16 port patch panel comes loaded with 16 duplex SC 50 micron multimode female to female couplers. It provides a quick and easy solution for patching terminated fiber cables. It is 1U in height and meant to be mounted on a 19" rack or cabinet.
|
Compact, Economical DesignThis 19 inch rackmount patch panel provides an affordable and compact solution for rackmount fiber applications. It has 16 slots for patching duplex SC multimode fiber cables, while using only 1U of rack space. It is ideal for high density applications. Quick Patching of Terminated Fiber CablesThis fiber optic patch panel is equipped with female jacks on both the front and back to provide easy connection for fiber cables. The front of the panel is labeled for quick identification. The Quality and Convenience You NeedThe preloaded couplers can be easily snapped out and replaced with any standard keystone jacks for easy customized solution. The patch panel is made of cold rolled steel which offers durability and long lasting quality, It also has standard mounting holes for installation on any 19 inch rackmount.
|
Specifications
| Physical Characteristics | |
|---|---|
| Color | Black |
| Material | Steel |
| Ports | 16 |
| Fiber Classification | OM3/OM4 |
| Product Dimensions | 19" W x 1.75" H [48 cm W x 4.45 cm H] |
| Height in Units | 1U |
| Rackmountable | Yes, 19" Rack or Cabinet |
| Connectors | |
| Front | 16 - SC/SC Multimode Duplex Female |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.6 lbs [0.73 kg] |
