150ft SVGA Disconnecting Cable HD15 M/M + 3.5mm Audio CL2/FT4

Save 53%
VGA CablesSKU: SVGAD-150

Price:
Sale price$139.90 CAD Regular price$295.35 CAD
Stock:
In stock

Description

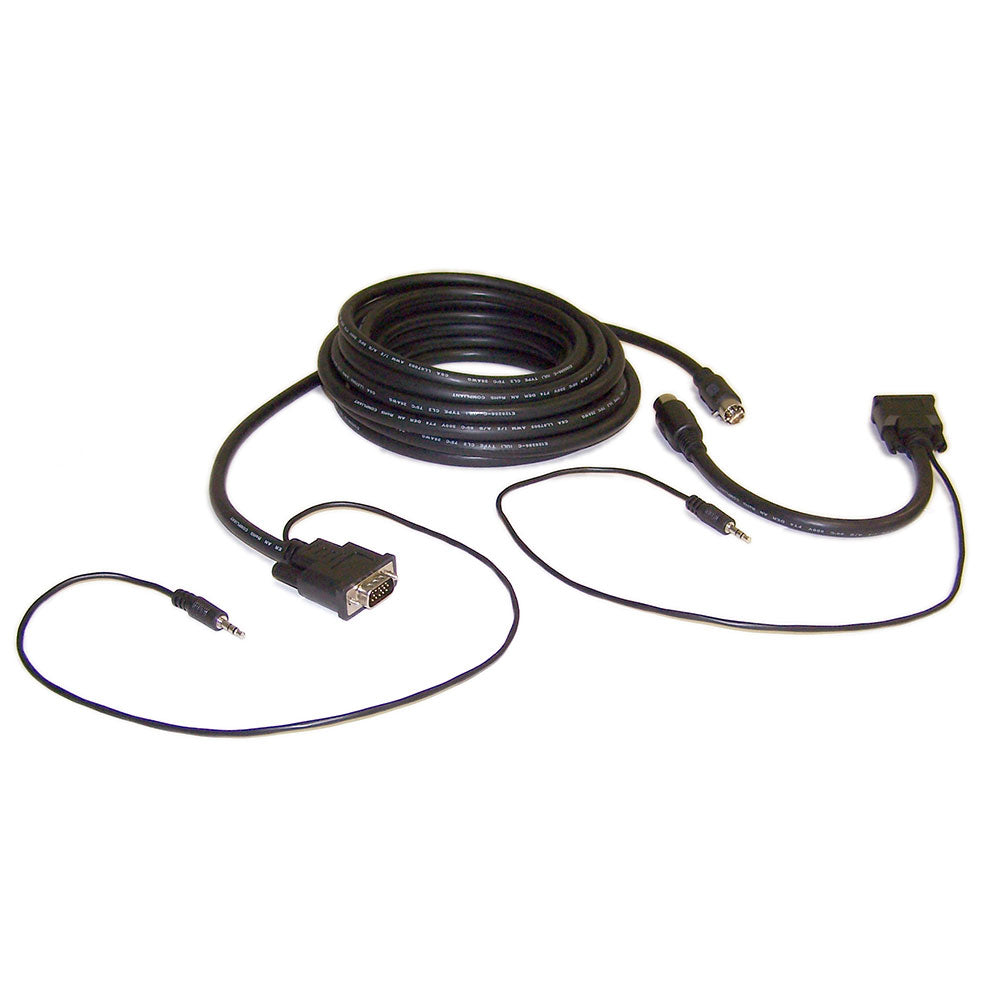

This disconnecting SVGA cable consists of a HD15 male and 3.5mm stereo male on both ends. It also features a slim locking connector which allows one end of the cable to be disconnected so that it can be run behind walls or through conduit (1 inch minimum diameter). It eliminates the need for onsite cable termination which simplifies and speeds up the installation time. It is typically used to connect VGA outputs such as computers/laptops to VGA inputs such as VGA monitors.

  • Constructed of a combination of 3 mini coax cables and 4.5 pairs for optimal SVGA video quality
  • This premium double shielded construction is designed to minimize any signal loss or ghosting that may appear with lesser quality cables
  • Fully CL2/FT4 fire rated for in-wall use
Physical Characteristics
Cable Length 150 foot [45.7m]
Color Black
Connector Plating Nickel
Wire Gauge - Coax 3 - 28AWG Mini-Coax
Wire Gauge - Conductors 4.5 - 24AWG Pairs
Wire Gauge - Audio 2 - 28AWG Conductors
Cable Diameter 8.8 mm
Shielding 85% Aluminum Braid, 100% Mylar Foil, Ferrite Cores
Jacket Fire Rating CL2/FT4
Jacket Material PVC
Strain Relief Molded PVC
Connector(s)
Long Cable End 1 - SVGA HD15 Male
1 - 3.5mm Stereo Male
1 - Locking DIN 13P Male (3/4 inch diameter)
Short Cable End 1 - SVGA HD15 Male
1 - 3.5mm Stereo Male
1 - Locking DIN 13P Female (3/4 inch diameter)
Performance
Resolution 1600 x 1200px
Impedance 75 ohm
Environmental
RoHS Yes
Packaging Information
Package Quantity 1
Product Weight 8.1 lbs [3.7kg]
Warranty Information
Warranty Limited Lifetime
