Description

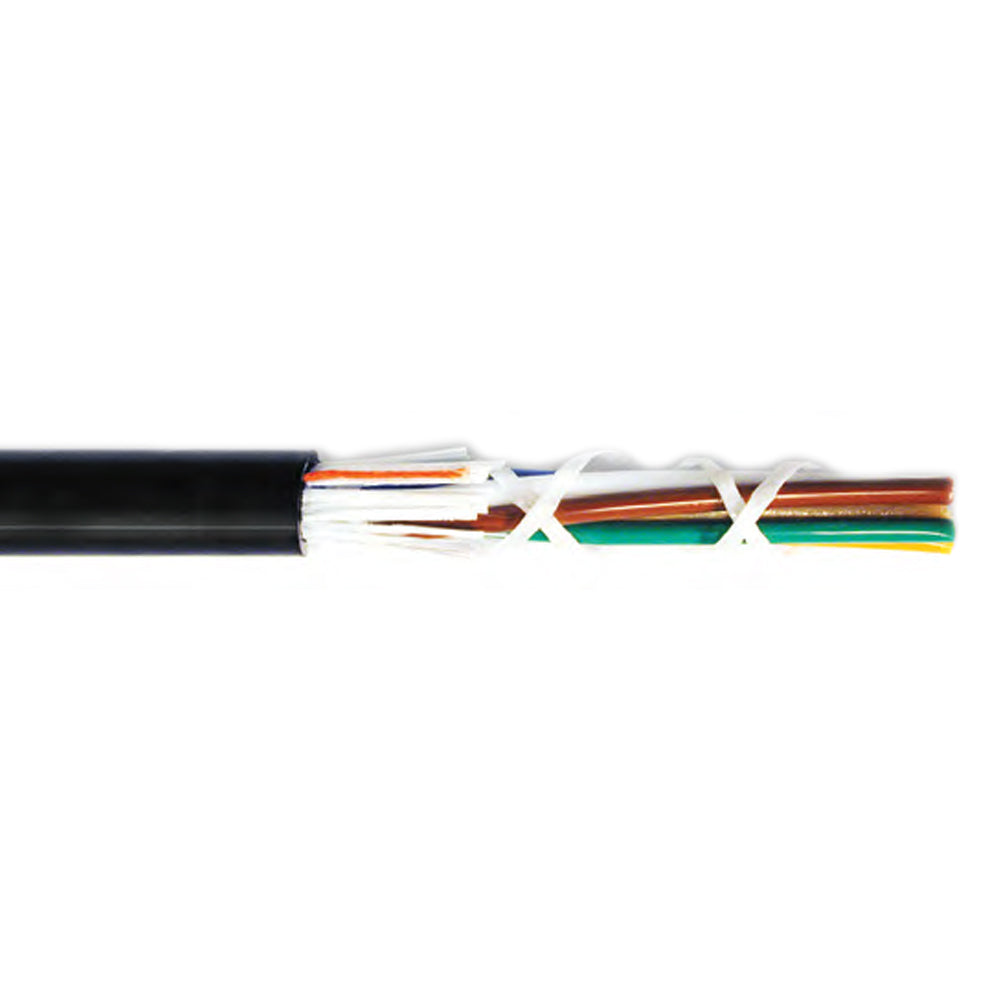

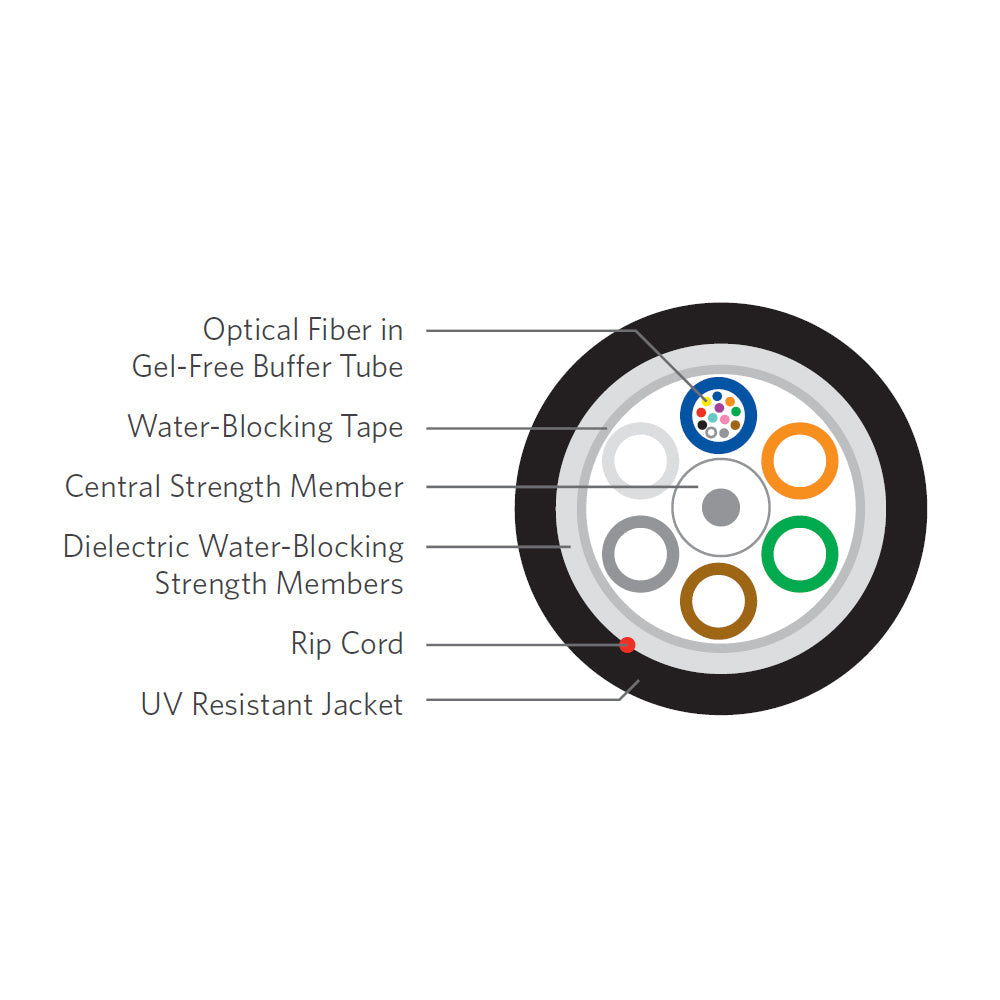

This bulk 12-strand loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable provides high fiber density, can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.
Features
- Multiple fiber types including composites
- Dry (SAP) core standard
- Central strength members available in metallic or dielectric
- Gel-free tubes
- Tested to meet or exceed TelcordiaĀ® GR-20-CORE, RDUP PE-90 Designation MLT and ICEA S-87-640-2011
- RoHS Compliant
| Physical Characteristics | |
|---|---|
| Color | Black |
| Fiber Optic Type | OSP Loose Tube Singlemode Outdoor Duct/Lashed Aerial Dri-Lite Cable |
| Fiber Count | 12-Strand |
| Nominal Diameter | 10.3mm |
| Tension(Installation) | 600 lbs |
| Tension(Long Term) | 200 lbs |
| Bending Radius(Installation) | 206mm |
| Bending Radius(Long Term) | 103mm |
| Operating Temperature | -40ā ~ +70ā |
| Storage Temperature | -40ā ~ +70ā |
| Installation Temperature | -30ā ~ +70ā |
| Manufacturer Information | |
| Superior Essex Part Number | 110122D01 |
| Environmental | |
| RoHS | Yes |
| TelcordiaĀ® GR-20-CORE | Yes |
| RDUP PE-90 Designation MLT | Yes |
| ICEA S-87-640-2011 | Yes |
| Packaging Information | |
| Product Weight | 0.8 lbs |
