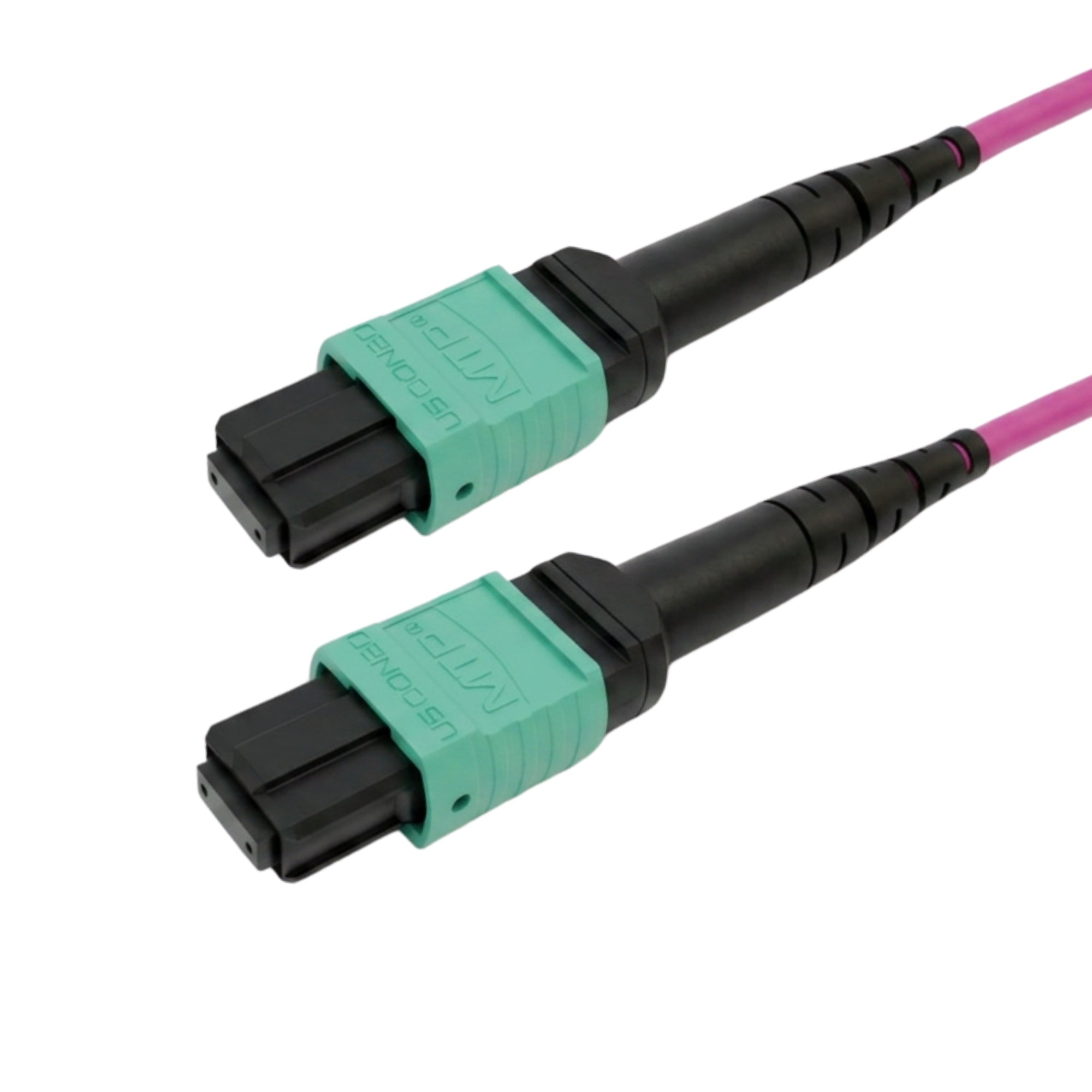

12-Fiber Multimode OM4 MTP® Female (No Guide Pins) To MTP® Female (No Guide Pins) - OFNP Plenum - Violet
12-Fiber Multimode OM4 MTP® Female (No Guide Pins) To MTP® Female (No Guide Pins) - OFNP Plenum - Violet

12-Fiber Multimode OM4 MTP® Female (No Guide Pins) To MTP® Female (No Guide Pins) - OFNP Plenum - Violet

Fiber Optic MPO/MTP CablesSKU: FOC-1410A-03P-EV
Length: 1m
Type: Method A Polarity
Price:
$66.85 CAD
Stock:
In stock



Notify me when available
Description

This multimode OM4 fiber optic MTP® trunk cable is made with Corning glass fiber and consists of an MTP® female connector on both ends. It is used in high-bandwidth data center applications for connecting switches or MTP cassettes. These cables are manufactured using MTP® branded connectors but are fully compatible with standard MPO cables and devices.

Limited Lifetime Warranty RoHS Compliant cULus Compliant

MPO/MTP Polarity: Method A vs. Method B

MPO/MTP cables can be configured in several different polarities: Method A, Method B, or Method C.

Method A is considered straight-through, with positions 1-1, 2-2, 3-3, etc.

Method B is considered crossover, with positions 1-12, 2-11, 3-10, etc.

Method C is the least common and is considered paired crossover, with positions 1-2, 2-1, 3-4, 4-3, etc.

Infinite Cables stocks Method A and Method B cables. Method C cables are available by special order. The diagrams below further illustrate Method A and Method B polarities.

Method A

MPO Method A Polarity Diagram

Method B

MPO Method B Polarity Diagram

Physical Characteristics
Color Violet
Cable Diameter 3 mm
Fiber Count 12 Fibers
Fiber Type Multimode OM4 50/125 Micron
Polarity Method A / Method B
Glass Manufacturer Corning ClearCurve OM4 Glass
Jacket Rating Plenum (OFNP)
Temperature Range 0–60°C
Connector(s)
Connector A 1 - 12-Position MTP® Female (No Guide Pins), Elite Connector
Connector B 1 - 12-Position MTP® Female (No Guide Pins), Elite Connector
Performance
Insertion Loss ≤0.35 dB
Return Loss ≥20 dB
Testing 100% IL, RL, and Interferometer Tested
Environmental
RoHS Compliant
UL c(UL)us Listed Cable
Packaging Information
Warranty Limited Lifetime
Cable Weights
3ft - 1m 6ft - 2m 10ft - 3m 15ft - 5m 23ft - 7m 30ft - 10m 50ft - 15m 65ft - 20m 80ft - 25m 100ft - 30m 115ft - 35m 131ft - 40m 148ft - 45m 164ft - 50m
0.04 lbs 0.07 lbs 0.09 lbs 0.13 lbs 0.18 lbs 0.23 lbs 0.35 lbs 0.47 lbs 0.56 lbs 0.66 lbs 0.76 lbs 0.86 lbs 0.98 lbs 1.08 lbs
Spec Sheets

 Download Spec Sheet - Method A

 Download Spec Sheet - Method B
