OM4 Multimode Loose Tube Outdoor Duct/Lashed Aerial Dri-Lite Fiber Bulk Cable (per meter) - 12-strand

OM4 Multimode Bulk CableSKU: BK-F11012PD01

Price:
Sale price$5.73 CAD
Stock:
In stock

This item does not qualify for free shipping.

Description

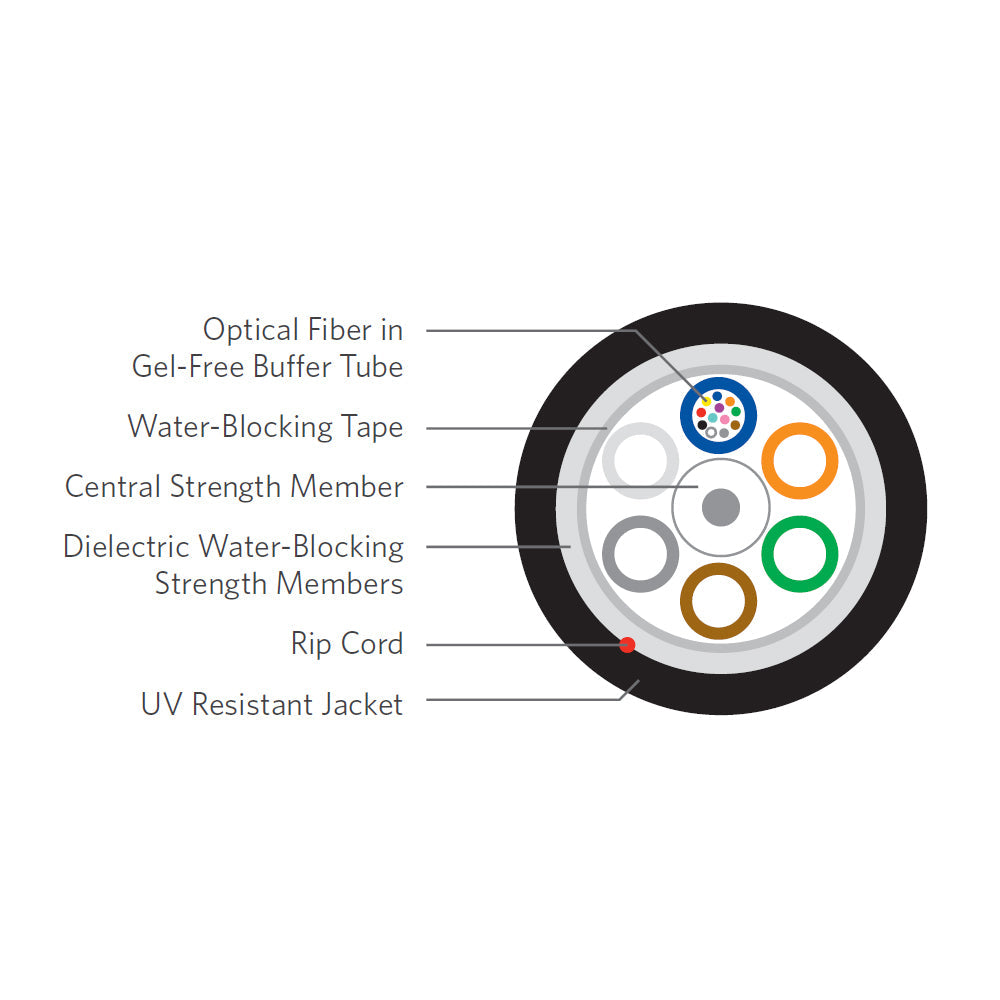

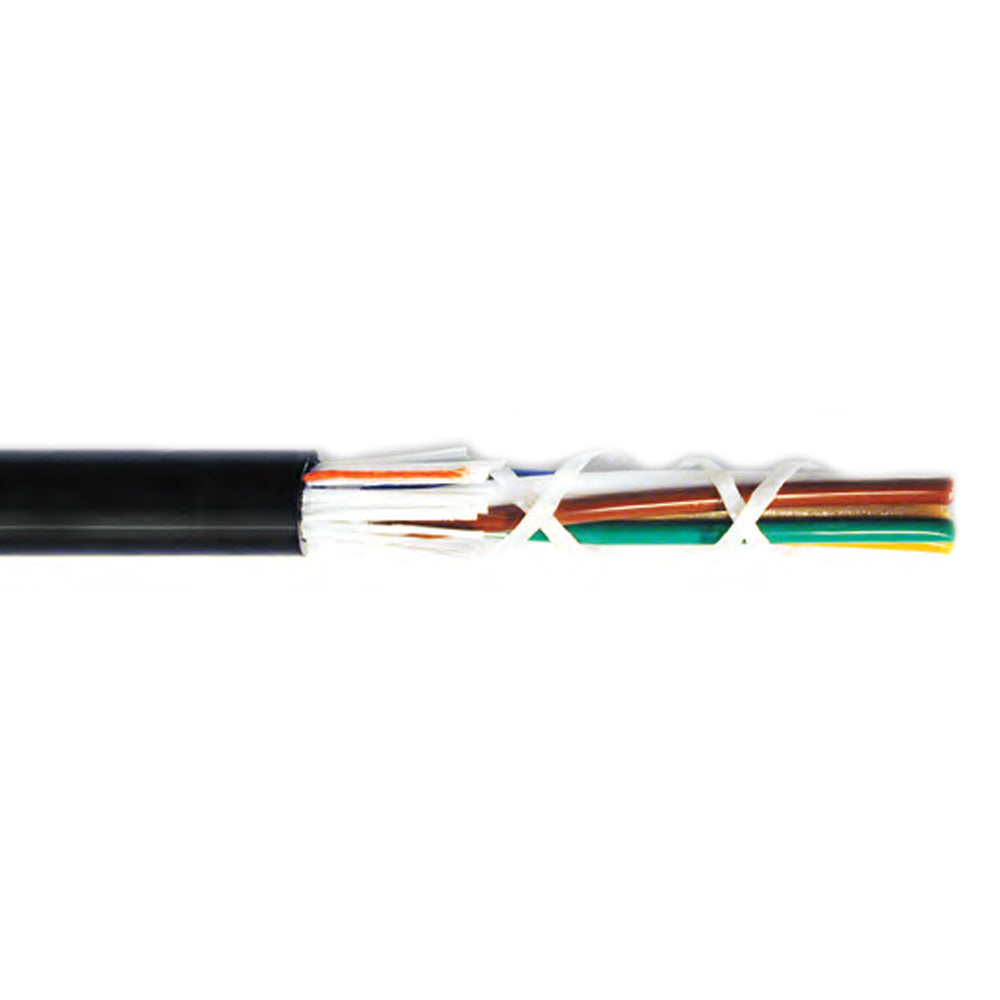

This bulk 12-strand loose tube fiber cable is outdoor rated. It is OSP rated for outside plant environments. Its loose tube design offers reliable transmission performance over a broad temperature range. Optical fibers and water-blocking elements are placed inside gel-free buffer tubes. This cable can be used for multiple network applications, reduces cable installation time, reduces number of tools required, speeds fiber access/cleanup and dielectric design eliminates grounding issues.

Features

  • Dry (SAP) core standard
  • Central strength members available in dielectric
  • Gel-free tubes
  • Tested to meet or exceed Telcordia® GR-20-CORE, RDUP PE-90 Designation MLT and ICEA S-87-640-2011
  • RoHS Compliant
Physical Characteristics
Color Black
Fiber Optic Type 50u OM4 Multimode (Optimized 50/125 10G/550) Loose Tube Outdoor Duct/Lashed Aerial Dri-Lite Cable
Fiber Count 12-Strand
Nominal Diameter 10.3mm
Tension(Installation) 600 lbs
Tension(Long Term) 200 lbs
Bending Radius(Installation) 206mm
Bending Radius(Long Term) 103mm
Operating Temperature -40℃ ~ +70℃
Storage Temperature -40℃ ~ +70℃
Installation Temperature -30℃ ~ +70℃
Manufacturer Information
Superior Essex Part Number 11012PD01
Environmental
RoHS Yes
Telcordia® GR-20-CORE Yes
RDUP PE-90 Designation MLT Yes
ICEA S-87-640-2011 Yes

Spec Sheets

Download attachment
