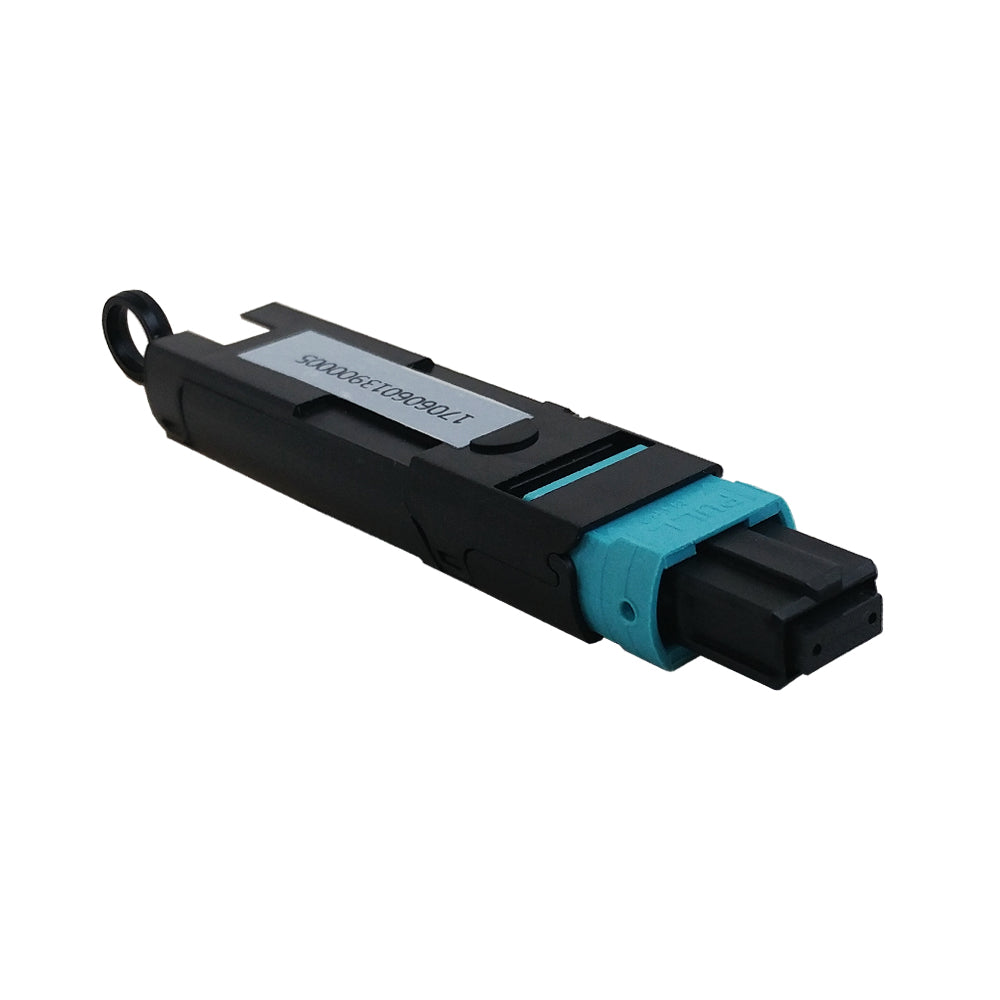

This MTP/MPO loopback tester is used to test the transmitting and receiving functions of a device by looping the signal from the transmit to receive port of a device.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Type | Multimode |
| Length | 3.3 inches |
| Connector(s) | |
| Connector | MTP/MPO |
| Pin-Outs | |
| Pin-Outs | 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7 |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.23 kg] |
| Contents | |
| Included in Package | 1 Loopback Tester |
This MTP/MPO loopback tester is used to test the transmitting and receiving functions of a device by looping the signal from the transmit to receive port of a device.
| Physical Characteristics | |
|---|---|
| Color | Aqua |
| Cable Type | Multimode |
| Length | 3.3 inches |
| Connector(s) | |
| Connector | MTP/MPO |
| Pin-Outs | |
| Pin-Outs | 1 -12, 2-11, 3-10, 4-9, 5-8, 6-7 |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 0.5 lbs [0.23 kg] |
| Contents | |
| Included in Package | 1 Loopback Tester |
| SKU | Weight | |
| FO-LB1310 | 0.5 lb |
