OM2 Multimode 50 Micron Armored AFL (Corning ClearCurve) - OFCP Plenum Fiber Bulk Cable (per meter) - 12-strand

OM2 Multimode Bulk CableSKU: BK-F12A-OM2-P

Price:
Sale price$10.05 CAD
Stock:
In stock

This item does not qualify for free shipping.

Description

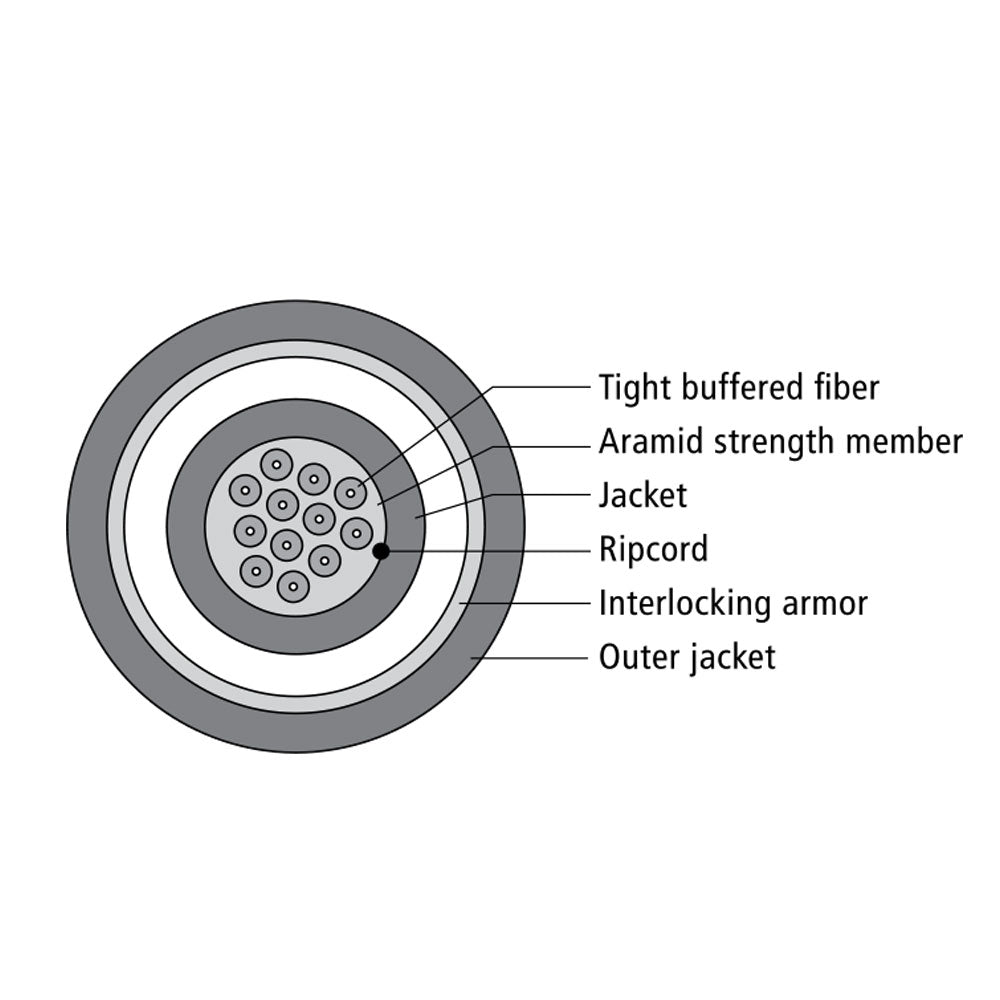

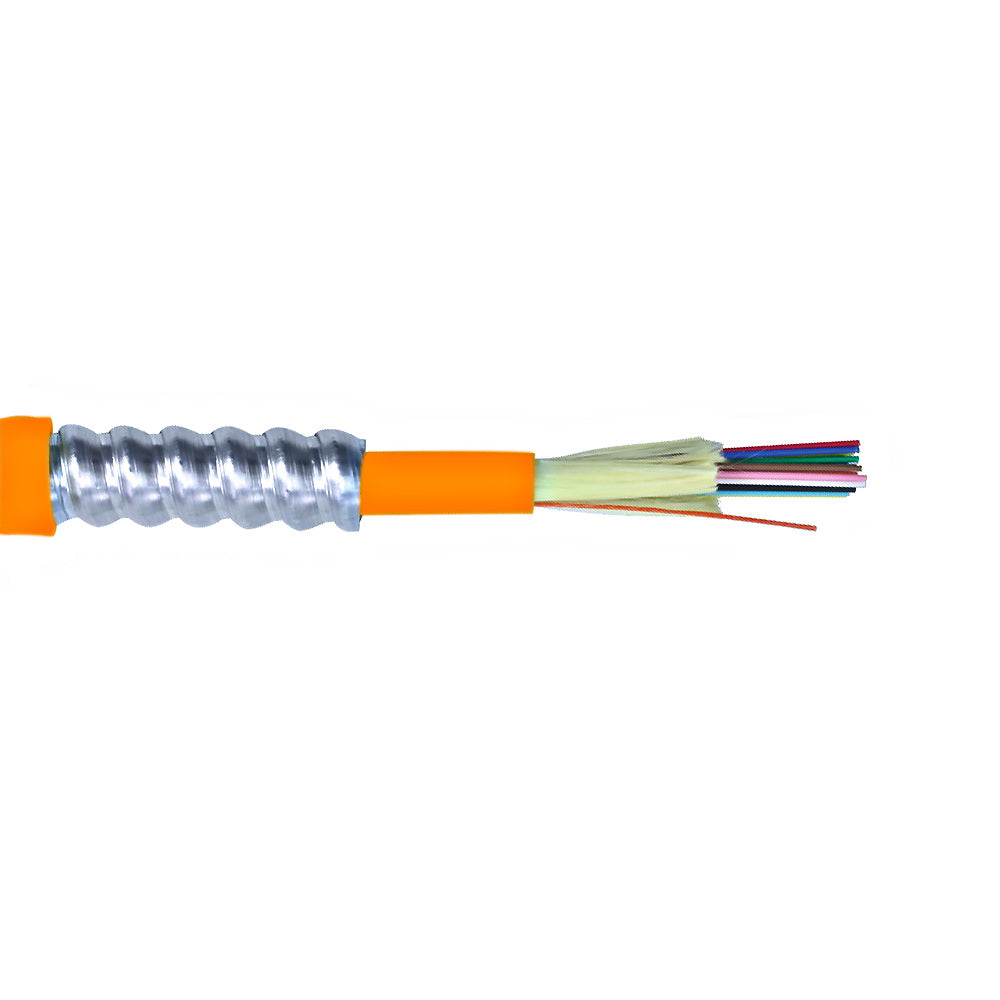

This bulk 12-strand OM2 armored fiber cable is plenum rated and has a tight buffer construction. It is OFCP rated for plenum and general inside plant environments. It's interlocking armor provides the best balance of ruggedness, flexibility, and low weight. Ideal for harsh environments such as manufacturing plants, data centers and inside of buildings where additional ruggedness is required. The cable is also rodent resistant.

Features

  • Routing inside of buildings where additional ruggedness is required or where increased rodent resistance is required.
  • Extra protection for fiber optic cables in harsh industrial environments.
  • Approved for use in manufacturing plants.
  • High-density routings in data center application.
Physical Characteristics
Color Orange
Fiber Optic Type OM2 50 micron Multimode Plenum Armored Tight Buffered Cable
Fiber Count 12-Strand
Glass Fiber Corning InfiniCor
Sub Unit Diameter 900 Micron
Nominal Diameter 11.8mm
Tension(Installation) 100 lbs
Tension(Long Term) 30 lbs
Bending Radius(Installation) 17.7cm
Bending Radius(Long Term) 12.7cm
Operating Temperature -0℃ ~ +70℃
Storage Temperature -40℃ ~ +75℃
Attenuation Range @850nm 3.5dB/km
@1300nm 1.5dB/km
Bandwidth Range @850nm > 500 MHz/km
@1300nm > 500 MHz/km
Gigabit Ethernet Min. Link Distance 850nm = 600
1300nm = 600
10 Gigabit Ethernet Min. Link Distance 850nm = 82
Fire Rating OFCP
Certification(s)
ETL Yes
c(ETL) Yes
Product Support
RoHS Yes
Country of Origin USA

Spec Sheets

Download attachment
