Description

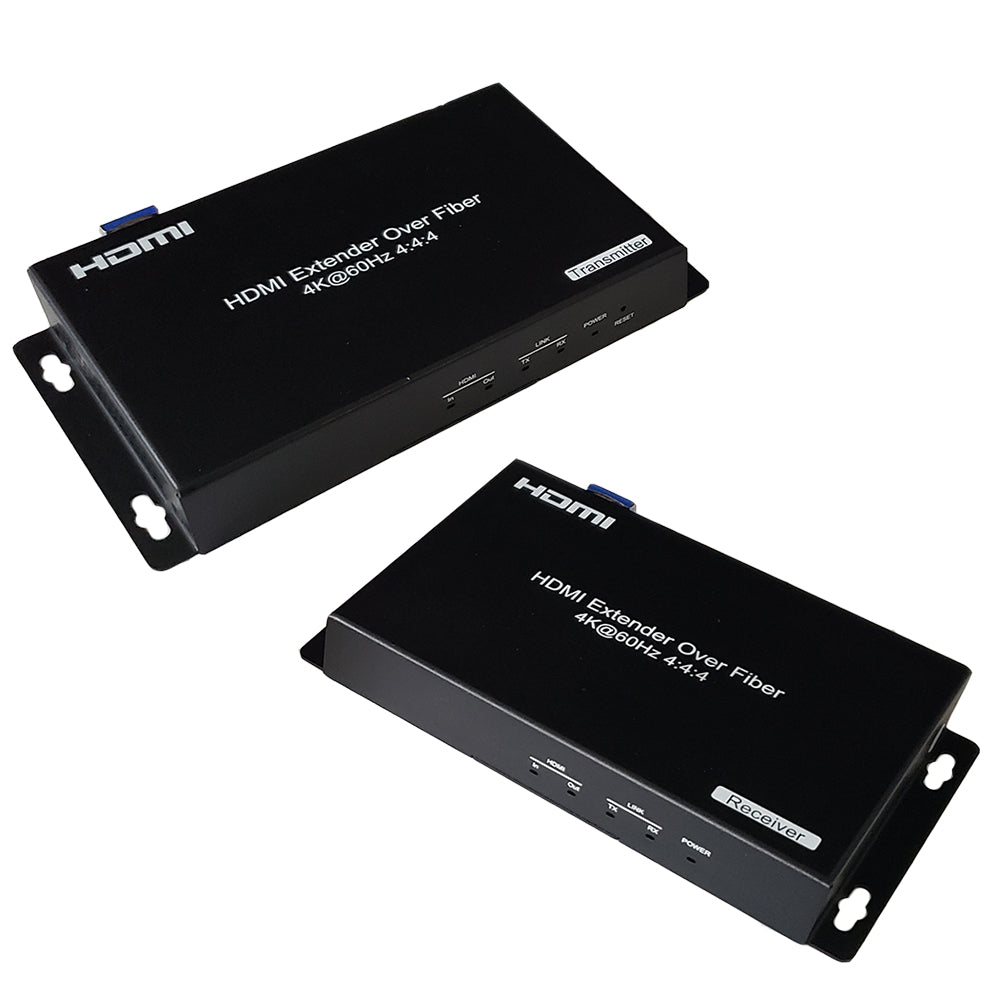

This HDMI extender allows you to extend your display up to 32808ft (10km) away from your source device over singlemode fiber optic cables at a resolution of 4K@60Hz.
| Physical Characteristics | |
|---|---|
| Color | Black |
| Cable Type | LC Duplex Singlemode Fiber Cable |
| Housing | Metal Enclosure |
| Dimensions | Transmitter: 96 x 100 x 21mm Receiver: 96 x 100 x 21mm |
| Operating Temperature | -5℃ ~ 40℃ |
| Operating Humidity | 5 to 90%RH (No Condensation) |
| Power | |
| Power Consumption | Transmitter: 3W (Max) Receiver: 3W (Max) |
| Power Supplies | Input: 100-240V, 50/60Hz 0.4A Output: 12V, 1Amp DC Converter |
| Connector(s) | |

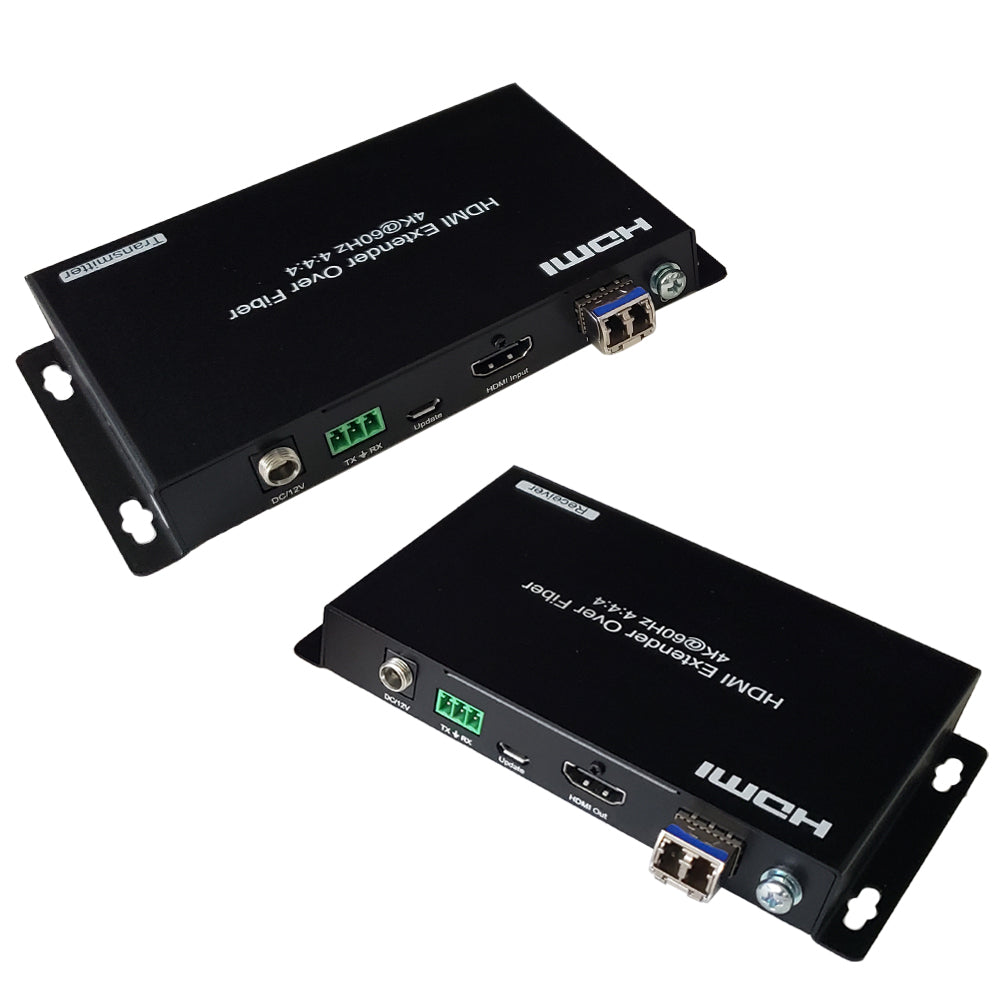

| Transmitter | HDMI Input Female, LC Duplex Female |
| Receiver | HDMI Output Female, LC Duplex Female |
| Performance | |
| Video Resolution | Maximum 4K*2K@60Hz YUV4:4:4 |
| Bandwidth | Up to 18Gbps |
| Audio | LPCM 7.1, Dolby True HD, DTS-HD Master Audio |
| HDCP Compliant | HDCP2.2 In, Out or HDCP 1.4 In, Out |
| Automatic EDID | Yes |
| Approvals | |
| Power Adapter | c(UL)us, FCC, CE |
| Environmental | |
| RoHS | Yes |
| Certification(s) | |
| CE | Yes |
| FCC | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 1.2 lbs [0.5kg] |
| Contents | |
| Included in Package | 1 - Transmitter |
| 1 - Receiver | |

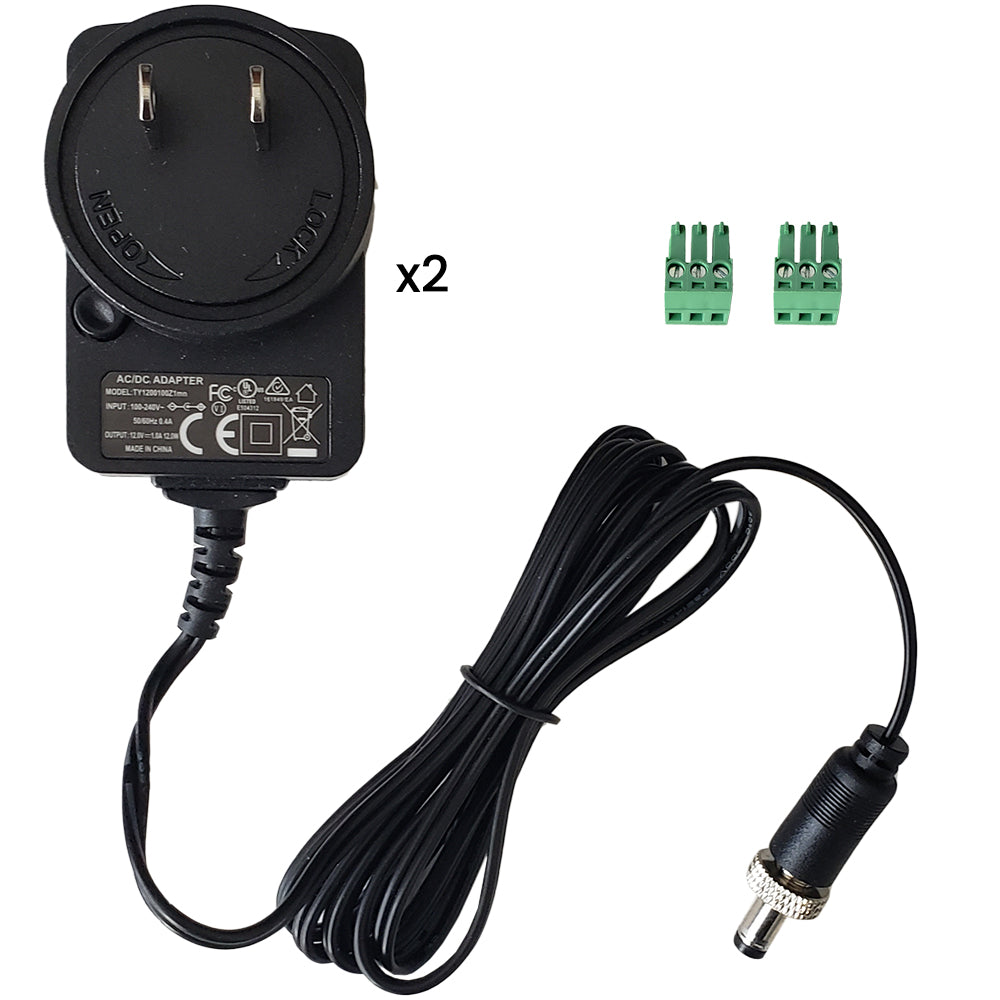

| 2 - DC12V Power Adapter | |
| 2 - Phoenix Plugs | |
| 1 - Manual | |
