Description

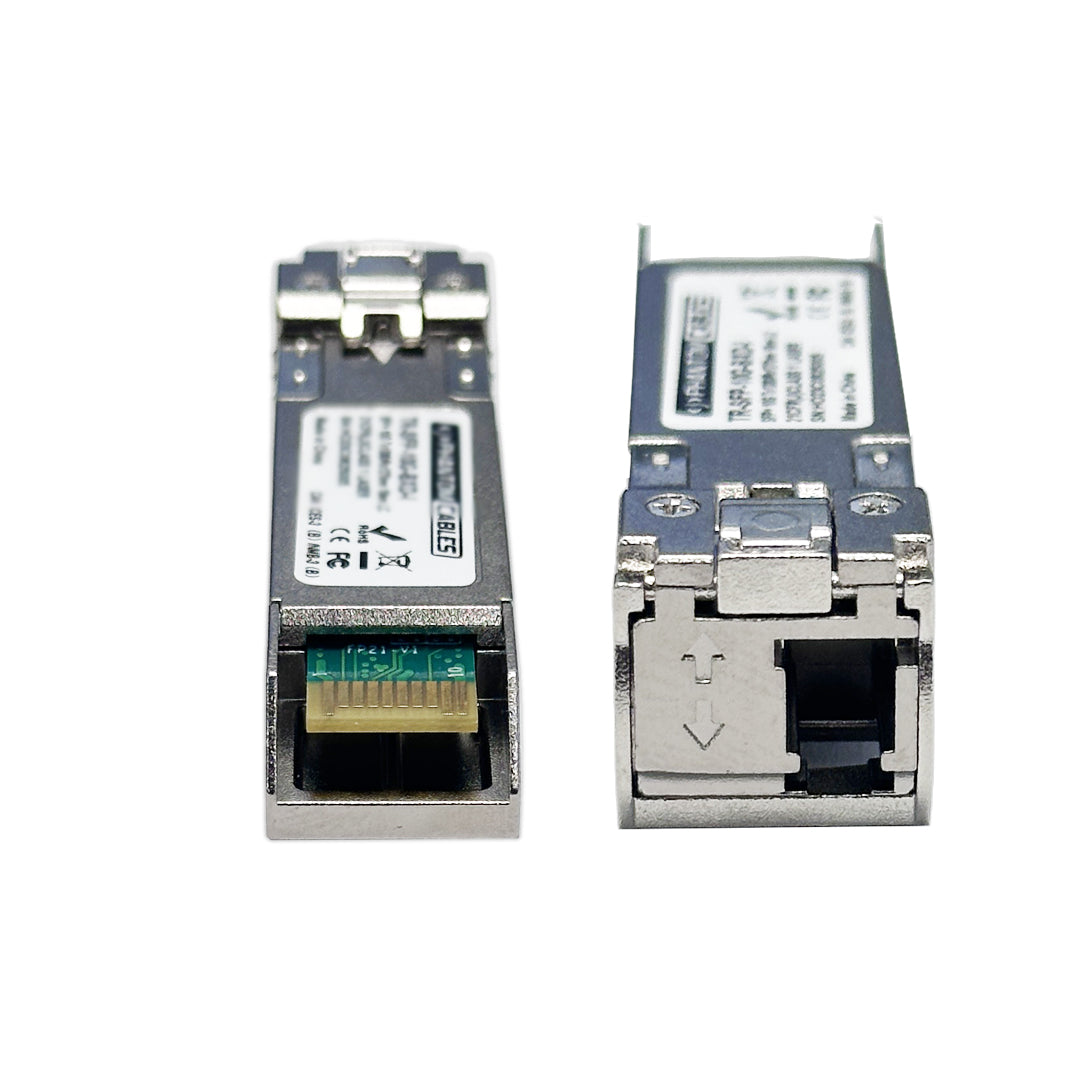

This is an Enhanced Small Form-factor Pluggable (SFP+) transceiver module with maximum data transfer rate of 10 Gbps up to 10km over singlemode fiber cable. It is used in network devices with an SFP+ slots. The transceivers are Multi-Source Agreement (MSA) compliant and built to OEM specifications.
NOTE: Each network link needs to have a up transceiver and a down transceiver. Ex./ TR-SFP-10G-BXU-I-G should be purchased with TR-SFP-10G-BXD-I-G.
Application:
| Physical Characteristics | ||
|---|---|---|
| Dimensions | 57mm x 15mm x 9mm (L x W x H) | |
| Operating Temperature | 0°C ~ 70°C | |
| Storage Temperature | -40°C ~ 80°C | |
| Laser Type | Class 1 | |
| Connectors | ||
| Connector | LC Simplex | |
| Performance | ||
| Media Supported | 10GBase-LR Singlemode Fiber | |
| Maximum Transmission Distance | 10km | |
| Wave Length | TX: 1270nm RX: 1310nm | |
| DDM Support | Yes | |
| Compatible Product | ||
| TR-SFP-10G-BXD-I-G | 10Gbase SFP+ Bi-Directional 1310nm/1270nm LC Transceiver, 10km | |
| Certifications | ||
| CE | Yes | |
| FCC | Yes | |
| RoHS | Yes | |
| Packaging Information | ||
| Package Quantity | 1 | |
| Product Weight | 0.02 lbs [0.01kg] | |
| Warranty Information | ||
| Warranty | Limited Lifetime | |
Spec Sheets
Compatibility List
- Avaya
- Force10
- D-Link
- EMC2
- F5 Networks
- Fortinet
- Hirschmann
- Linksys
- Moxa
- MRV
- Netgear
- Nokia Siemens Networks
- Palo Alto Network
- Qlogic
- RAD
- Ruijie Networks
- Supermicro
- Synology
- Telco Systems
- TP-Link
- Trendnet
- Ubiquiti
- WatchGuard
- ZTE
