Description

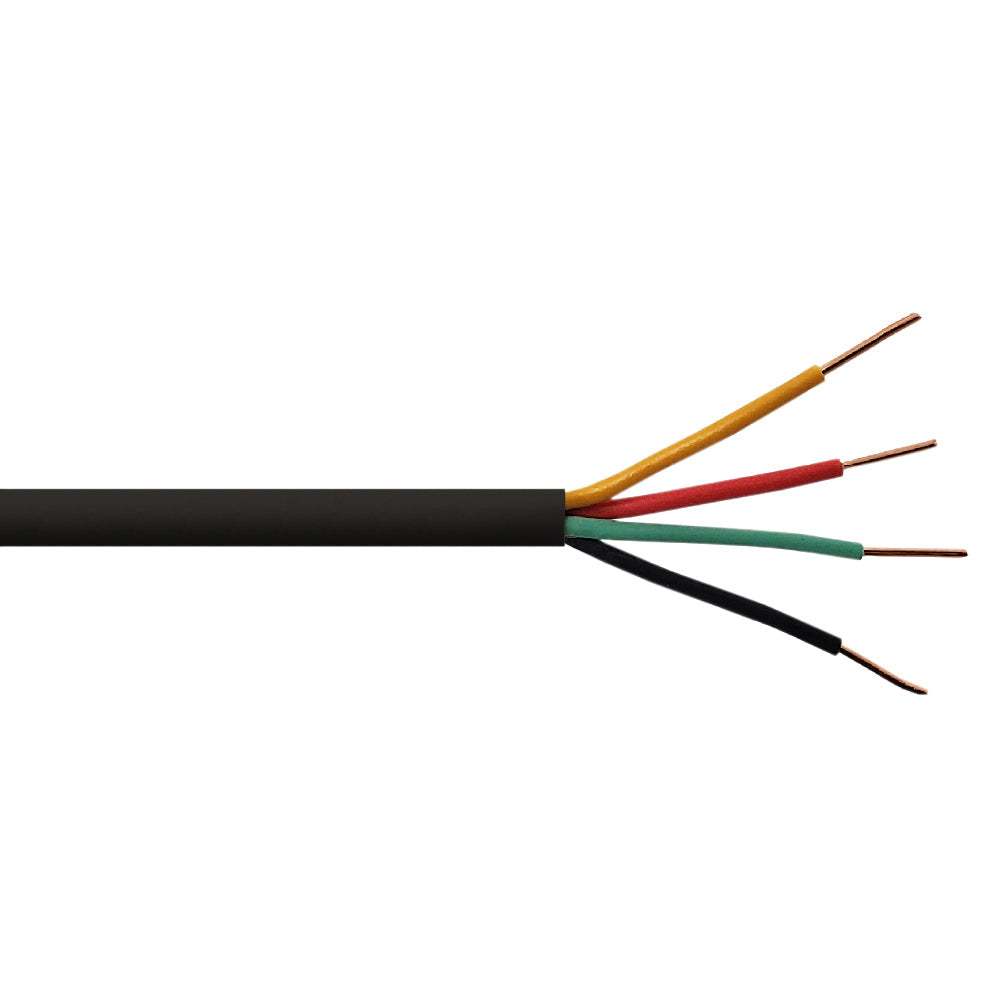

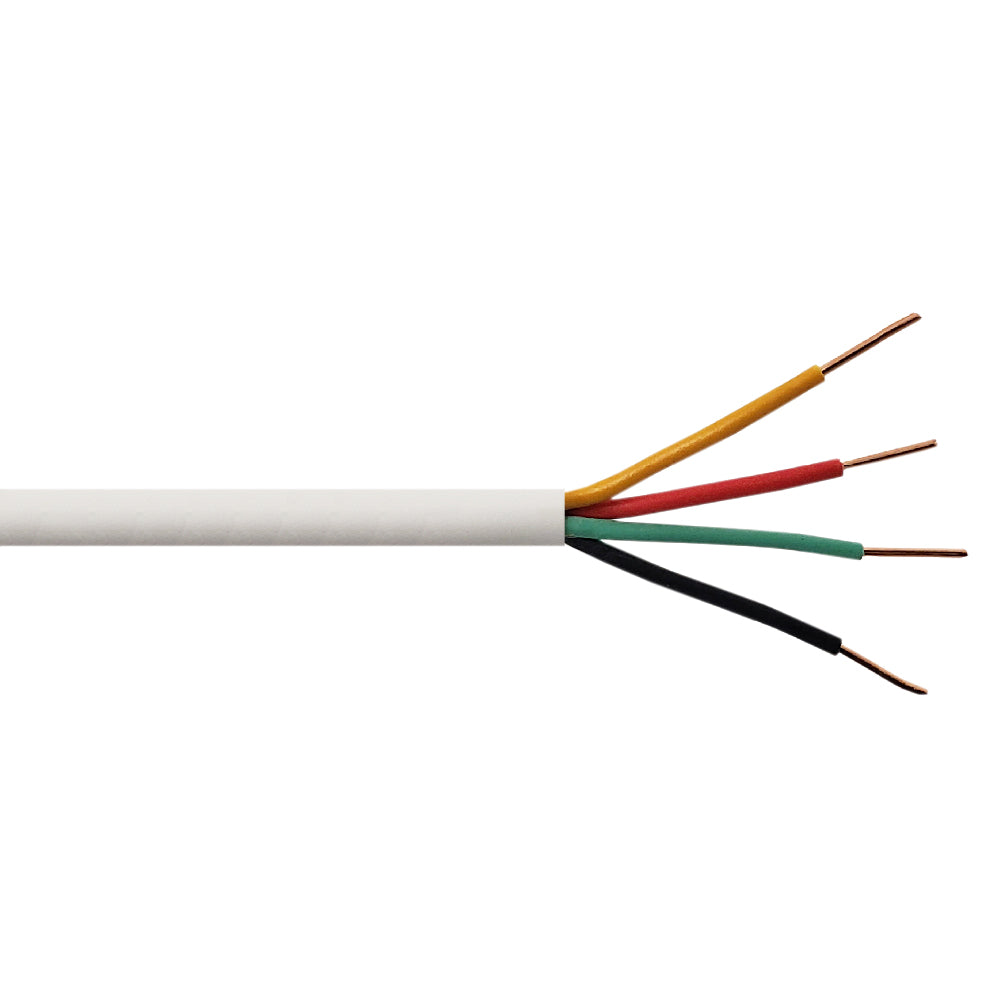

This bulk plenum rated security alarm cable consists of 4 conductors of 22 gauge wire. It is ideal for wiring for security systems, intercoms and power-limited controls. The cable is plenum (CMP) rated, UL listed, REACH and RoHS Compliant. Ideal for use in cable runs that are located within a plenum air space or partially travel through a plenum airspace.
| Physical Characteristics | |
|---|---|
| Cable Length | 1000 foot [305m] |
| Color | Black/White |
| Cable Diameter | 3.0 mm |
| Number of Conductors | 4 Conductors |
| Wire Gauge | 22AWG |
| Conductor Material | 100% Bare Copper |
| Jacket Material | PVC - Polyvinyl Chloride |
| Jacket Rating | CMP/FT6 (Plenum Rated) |
| Cable Shielding | None |
| Jacket | PL-PVC Diameter over Jacket: 0.1358"±0.006" (3.45±0.15mm) Nominal Jacket Thickness: 0.018" (0.46mm) Minimum Spot: 0.014" (0.36mm) |
| Dielectric | PL-PVC Diameter over Dielectric: 0.0413"±0.004" Nom.(1.05±0.10mm) |
| Ripcord | Kevlar |
| Operating Voltage | 300V |
| DCR Conductor | 63.06 Ohms/Km (Nominal) |
| Temperature Rating | -20℃ ~ +75℃ |
| Approvals | |
| c(UL)us | Yes |
| ISO/IEC 9001 | Yes |
| Environmental | |
| RoHS | Yes |
| Packaging Information | |
| Package Quantity | 1 |
| Product Weight | 18.2 lbs |
