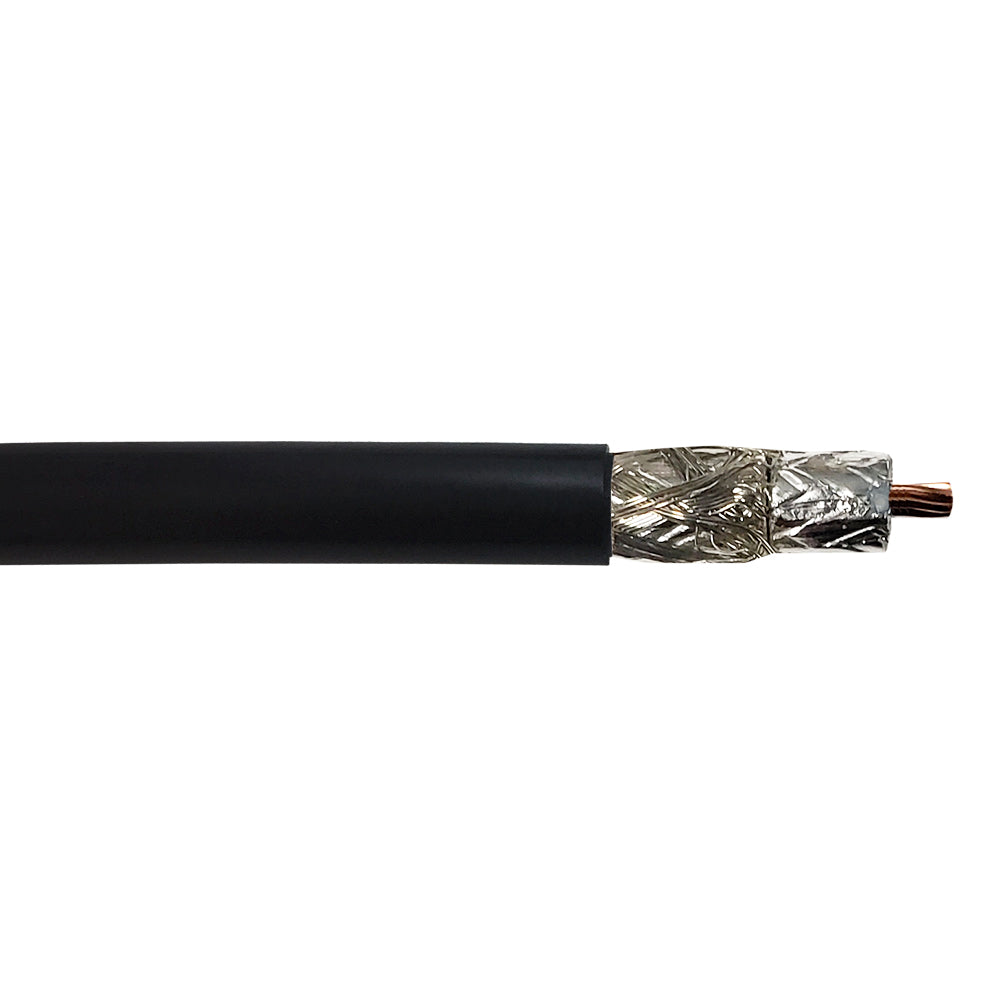

This low loss bulk flexible RF-240 cable is 1000 feet in length and consists of a 1.42mm stranded bare copper wire. It is ideal for jumper assemblies in wireless communication systems, antenna feeder runs, GPS and mobile antenna applications.
| Physical Characteristics |
| Color |
Black |
| Inner Conductor Material |
Stranded Bare Copper |
| Inner Conductor Diameter |
1.42mm (7x0.48) |
| Dielectric Material |
Foam PE |
| Dielectric Diameter |
3.81mm
|
| First Shield Material |
Bonded Aluminum Foil |
| First Shield Diameter |
3.94mm |
| Second Shield Material |
Tinned Copper Wire Braid (128*0.12) 90% Coverage |
| Second Shield Diameter |
4.52mm |
| Jacket Material |
TPE |
| Jacket Diameter |
6.10mm |
| Performance |
| Impedance |
50±3Ω |
| Capacitance |
79.4pF/m |
| Velocity of Propagation |
83%
|
| Shielding Effectiveness |
≥90dB |
| Installation Temperature |
-40℃ ~ +85℃ |
| Operating Temperature |
-40℃ ~ +85℃ |
Max. Operating Frequency
|
8.0Ghz |
| Attenuation (@20℃ ) |
| 150Mhz |
220Mhz |
450Mhz |
900Mhz |
1500Mhz |
1800Mhz |
2000Mhz |
2500Mhz |
5800Mhz |
| 11.9dB/100m |
14.4dB/100m |
20.8dB/100m |
29.8dB/100m |
38.9dB/100m |
42.8dB/100m |
45.2dB/100m |
50.9dB/100m |
80.1dB/100m |
| Packaging Information |
| Package Quantity |
1 spool |
| Product Weight |
34.55 lbs |
