1000ft RF-240 bulk cable 90% TC braid + foil Black

Coax Bulk CableSKU: BK-RF240-1000

Sale price$462.80 CAD
In stock

This item does not qualify for free shipping.

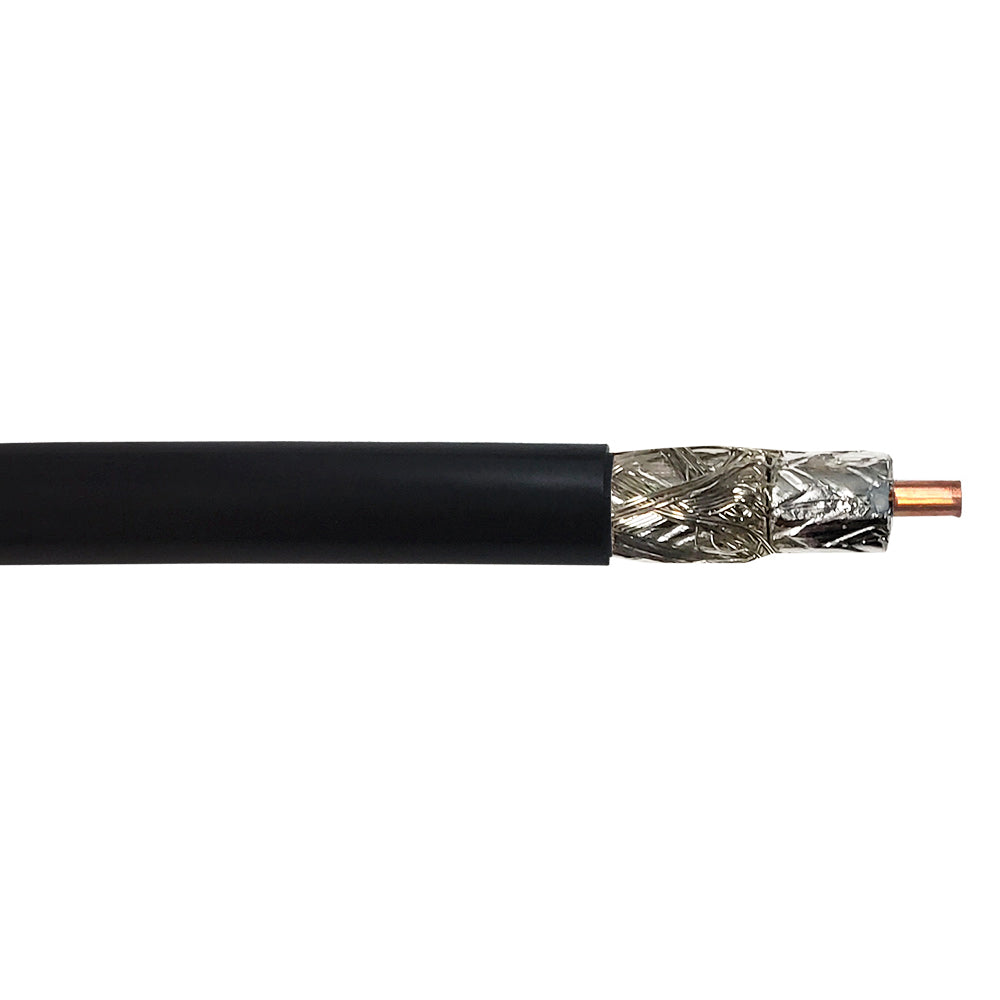

This low loss bulk RF-240 cable is 1000 feet in length and consists of a 1.42mm (0.056 inch) solid bare copper wire. It is ideal for jumper assemblies in wireless
communication systems, short antenna feeder runs, GPS and mobile antenna applications.


Physical Characteristics
Color Black
Inner Conductor Material Bare Copper
Dielectric Material Foam PE
First Shield Bonded Aluminum Foil
Second Shield Tinned Copper Wire Braid (128*0.12) 90% Coverage
Jacket PE, Outdoor UV Resistant, Black
Inner Conductor Dielectric First Shield Second Shield Jacket
1.42mm 3.81mm 3.94mm 4.52mm 6.10mm
Impedance 50±3Ω
Capacitance 79.4pF/m
Velocity of Propagation 83%
DC Resistance

Inner Conductor                                        Outer Conductor

10.5ohm/Km                                             12.8ohm/Km

Shielding Effectiveness ≥90dB
Voltage With Stand 1500.0V

Installation: -20 ~ +65℃

Operating Temp: -40 ~ +85℃

Attenuation (@20℃ )
150Mhz 220Mhz 450Mhz 900Mhz 1500Mhz 1800Mhz 2000Mhz 2500Mhz 5800Mhz
9.9dB/100m 12.2dB/100m 17.5dB/100m 25.0dB/100m 32.4dB/100m 35.6dB/100m 37.7dB/100m 42.5dB/100m 66.8dB/100m
