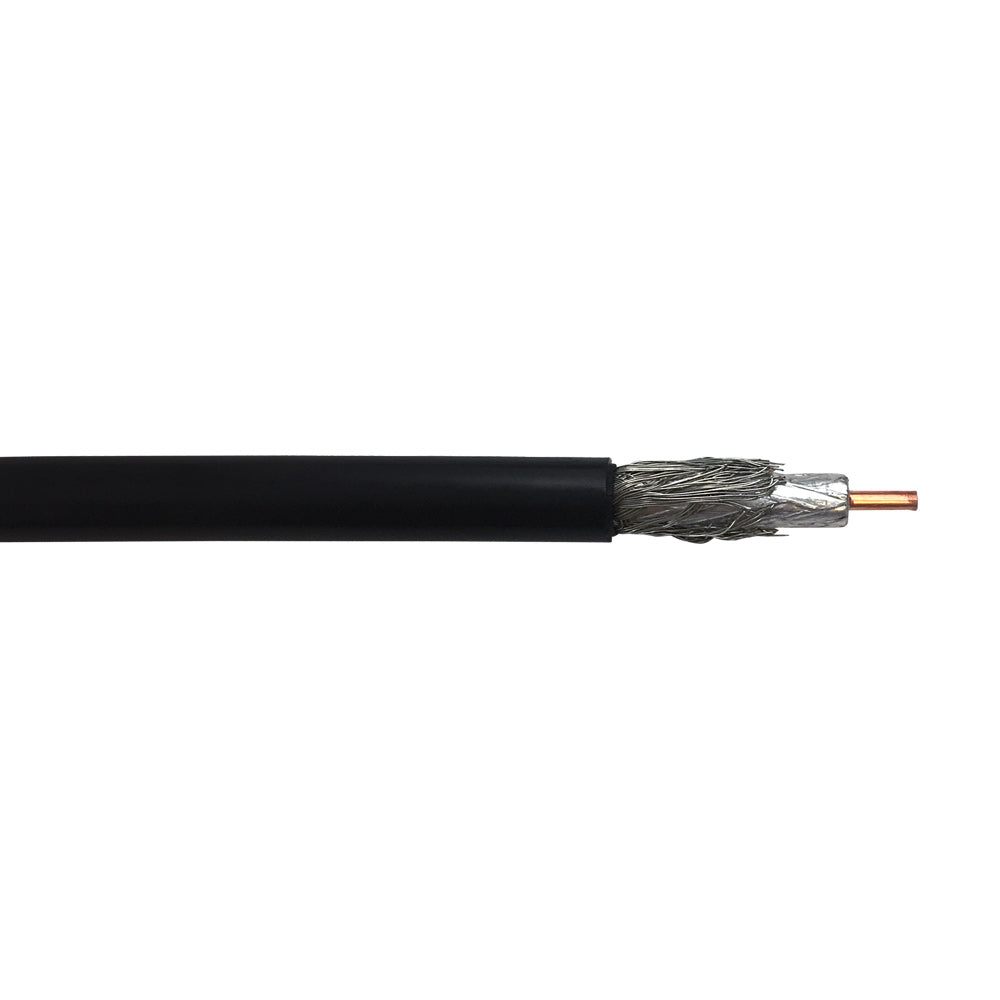

1000ft RF-195 bulk cable 90% TC braid + foil Black

Coax Bulk CableSKU: BK-RF195-1000

Price:
Sale price$292.30 CAD
Stock:
In stock

This item does not qualify for free shipping.

Description

This low loss bulk RF-195 cable is 1000 feet in length and consists of a 0.94mm (0.037 inch) solid bare copper wire. It is ideal for jumper assemblies in wireless communication systems, short antenna feeder runs, GPS and mobile antenna applications.

Specifications

Physical Characteristics
Color Black
Inner Conductor Material Bare Copper
Dielectric Material Foam PE
First Shield Bonded Aluminum Foil
Second Shield Tinned Copper Wire Braid (96*0.12) 90% Coverage
Jacket PE, Outdoor UV Resistant, Black
Diameters
Inner Conductor Dielectric First Shield Second Shield Jacket
0.94mm 2.79mm 2.95mm 3.53mm 4.95mm
Performance
Impedance 50±3Ω
Capacitance 83pF/m
Velocity of Propagation 80%
DC Resistance

Inner Conductor                                        Outer Conductor

24.9Ohm/Km                                              16.1Ohm/Km

Shielding Effectiveness ≥90dB
Temperature

Installation: - 20 ~ +65℃

Operating Temp: -40 ~ +85℃

Attenuation (@20℃ )
150Mhz 220Mhz 450Mhz 900Mhz 1500Mhz 1800Mhz 2000Mhz 2500Mhz 5800Mhz
14.6dB/100m 17.7dB/100m 25.5dB/100m 36.5dB/100m 47.7dB/100m 52.5dB/100m 55.4dB/100m 62.4dB/100m 98.1dB/100m
